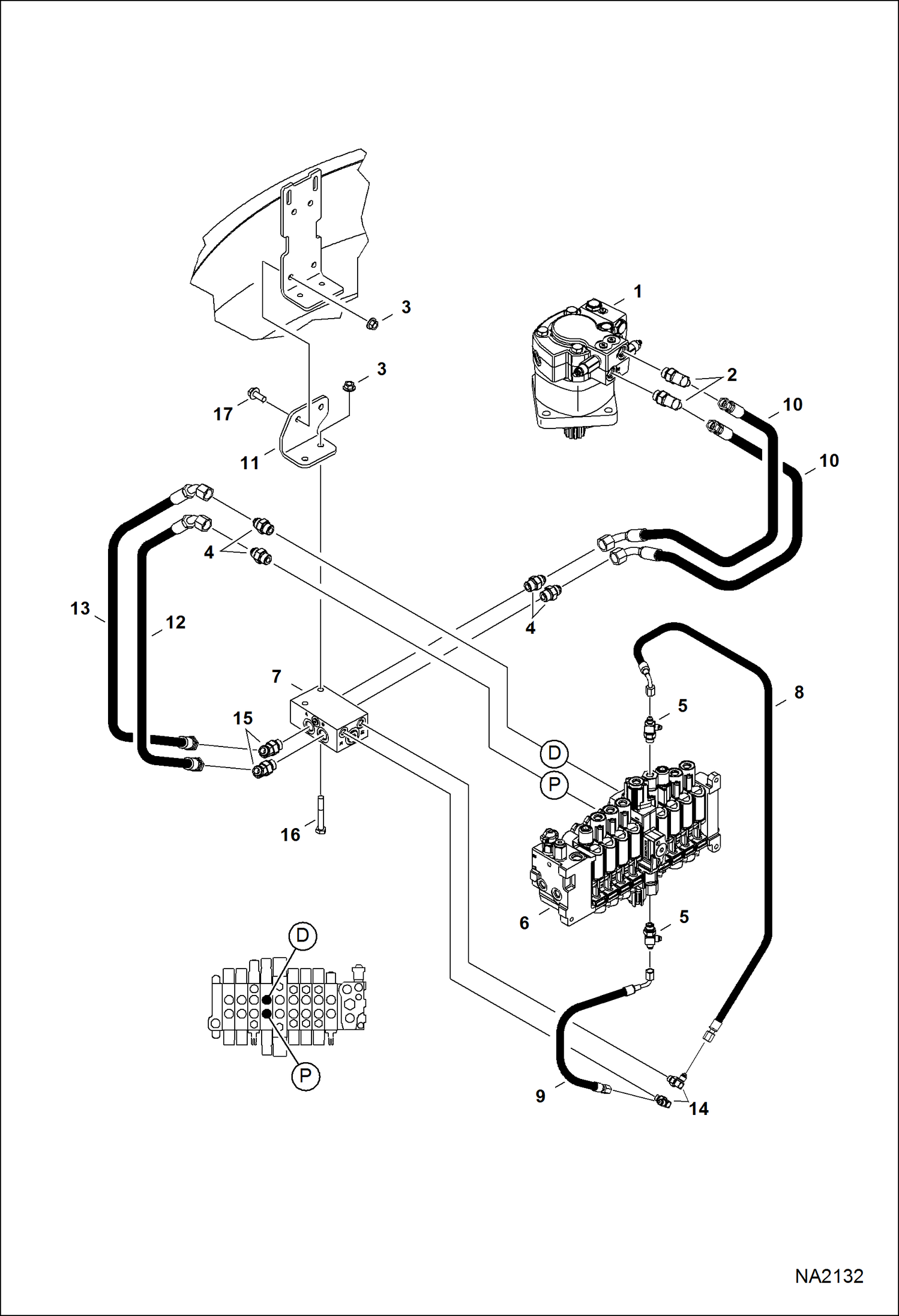

Запчасти Bobcat 425 EUROPEAN ACCESSORIES (Slew Lock) ACCESSORIES & OPTIONS

1

7001957

MOTOR, DRIVE HYD SLEW See Illustration SWING MOTOR/ MS1847 - bearing not included with motor - Also Order (1) 6513681 bearing - Was 6687118 - A

2

17KB0608

FITTING, HYD ELBOW

2

79K8

O RING 10

3

51DM10

NUT

4

15KB0808

FITTING, HYD CONNECTOR

4

79K8

O RING 10

5

21KB0406

FTG HYD STRAIGHT TEE

5

79K6

O RING 10

6

6688388

VALVE, CONTROL See Illustration CONTROL VALVE/ MS1430

7

7003480

VALVE, LOCK SLEW See Illustration EUROPEAN ACCESSORIES/ NA1334

8

7106603

HOSE

9

7106609

HOSE

10

7170908

HOSE, HYD ASSY

11

7171427

BRACKET

12

7171429

HOSE, HYD ASSY

13

7171430

HOSE, HYD ASSY

14

17KB0404

FTG HYD ELBOW 90

14

79K4

O RING 10

15

18KB0808

FTG HYD ELBOW 45

15

79K6

O RING 10

16

1CM1070

BOLT

17

29CM1025

BOLT
