Запчасти Bobcat 425 OPERATOR AREA & SEAT MAIN FRAME

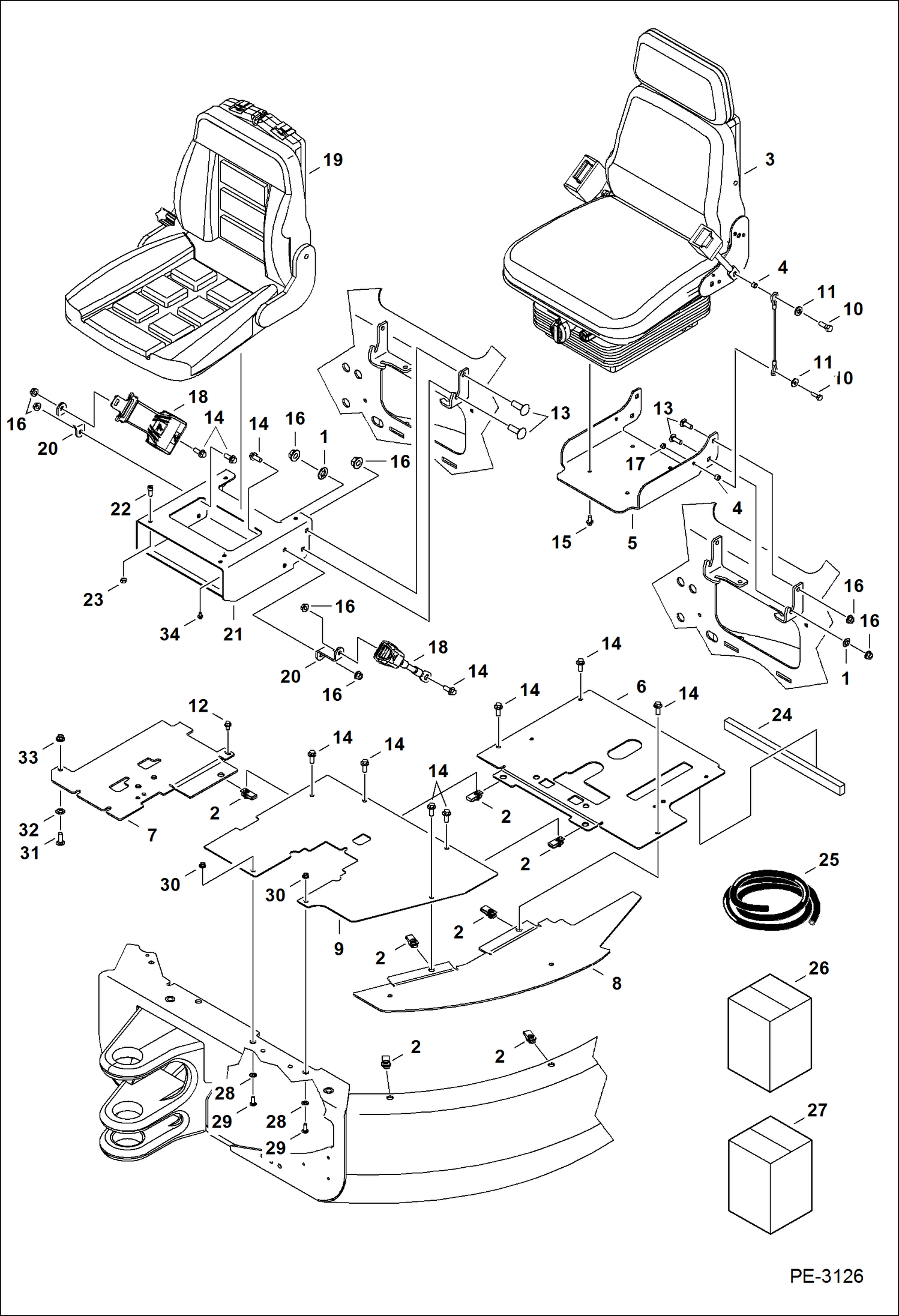

Схема запчастей Bobcat 425 - OPERATOR AREA & SEAT MAIN FRAME

Артикул

Название

Примечание

Количество

1

6674264

RETAINER NUT

2

6675722

NUT

3

6685657

SEAT, OPERATOR VINYL - EXCAVATOR See Illustration SEAT SUSPENSION/ PE2300

4

6802539

SPACER

5

6816778

SEATPAN

6

7135889

FLOOR PLATE rear floor

7

7122500

PLATE, FLOOR RH RH floor

7

7152615

PLATE, FLOOR RH

8

7125006

PLATE, FLOOR LH LH floor

9

7125025

PLATE W/A floor W/A

10

1CM825

BOLT

11

25E16

WSHR

12

26GM8016

SCREW

13

28CM1030

BOLT

14

29CM1025

BOLT

15

29CM816

SCREW

16

43DM10

NUT

17

53DM8

NUT

18

6670865

SEAT BELT

19

7175003

SEAT, OPERATOR VINYL vinyl - Was 6685658 - A

19

6686150

BOX

20

6817632

BRACKET

21

7128787

MOUNT W/A

22

3GM820

SCREW

23

4DM8

NUT

24

INSULATION NLA - 17'' (431,8 mm) long - Order Ref. 25

25

7001454

SEAL, BULK/FT bulk - sold per foot - Was 6803188 - A

26

6690059

SEAT RAIL KIT for seat 6685657

27

6690060

SEAT RAIL KIT for seat 6685658

28

6675859

RETAINER

29

29CM1025

BOLT

29

28CM825

BOLT

30

6675722

NUT

30

43DM8

NUT

31

28CM1030

BOLT

31

28CM830

BOLT

32

6674264

RETAINER NUT

32

6675859

RETAINER

33

43DM10

NUT

33

43DM8

NUT

34

26GM8013

BOLT

Выбрано товаров: 41
