LOCK VALVE (Boom Swing) (4.50 Long)

Запчасти Bobcat 425 LOCK VALVE (Boom Swing) (4.50 Long) HYDRAULIC SYSTEM

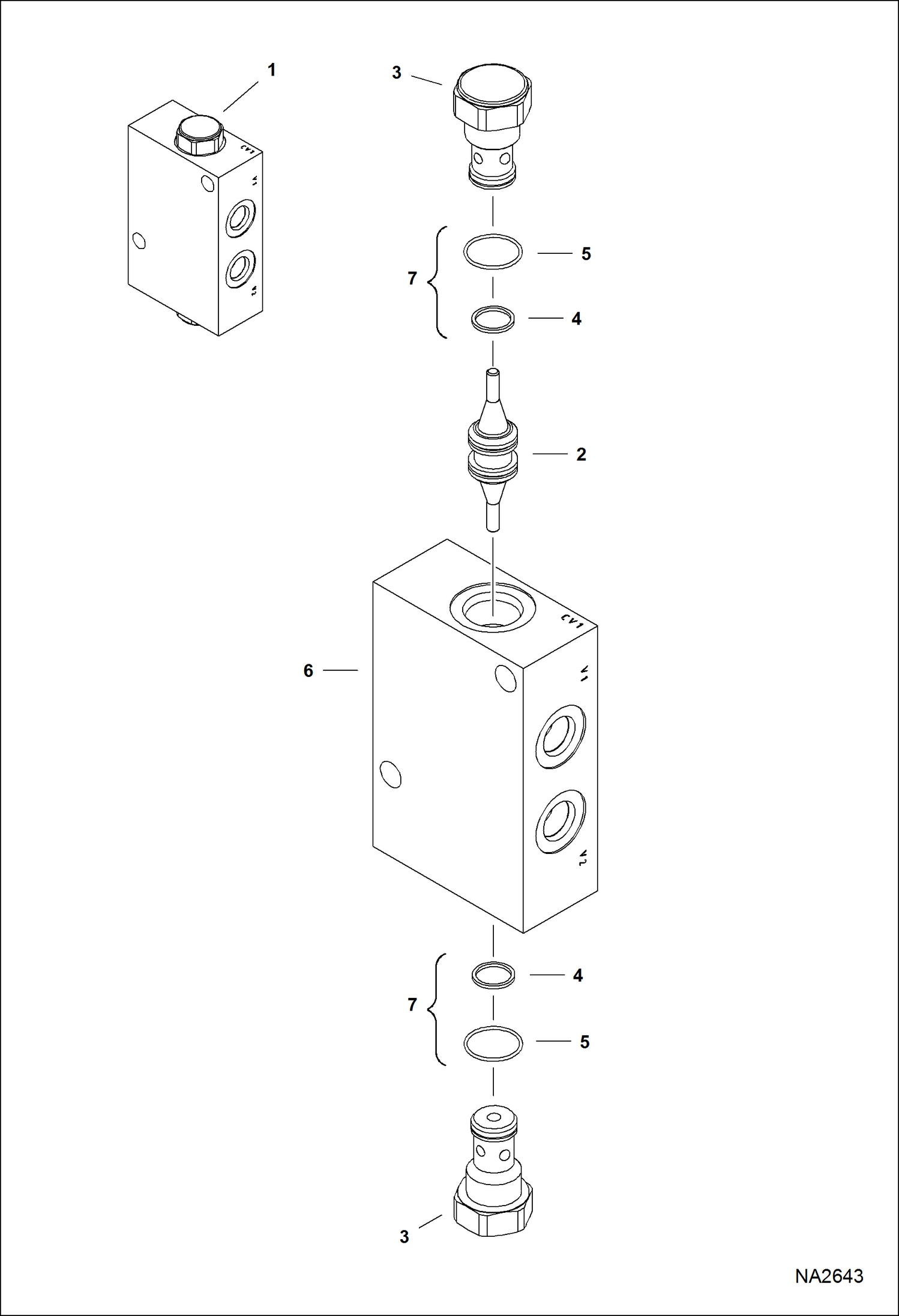

Схема запчастей Bobcat 425 - LOCK VALVE (Boom Swing) (4.50 Long) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7008325

VALVE, LOCK BOOM SWING Ref. 2-7

2

7016121

VALVE, SHUTTLE

3

7016122

VALVE, CHECK

4

SEAL NSS - Order Ref. 7

5

O-RING NSS - Order Ref. 7

6

BLOCK NSS - Order Ref. 1

7

6674685

SEAL KIT Ref. 4 & 5 - includes seals for one check valve
