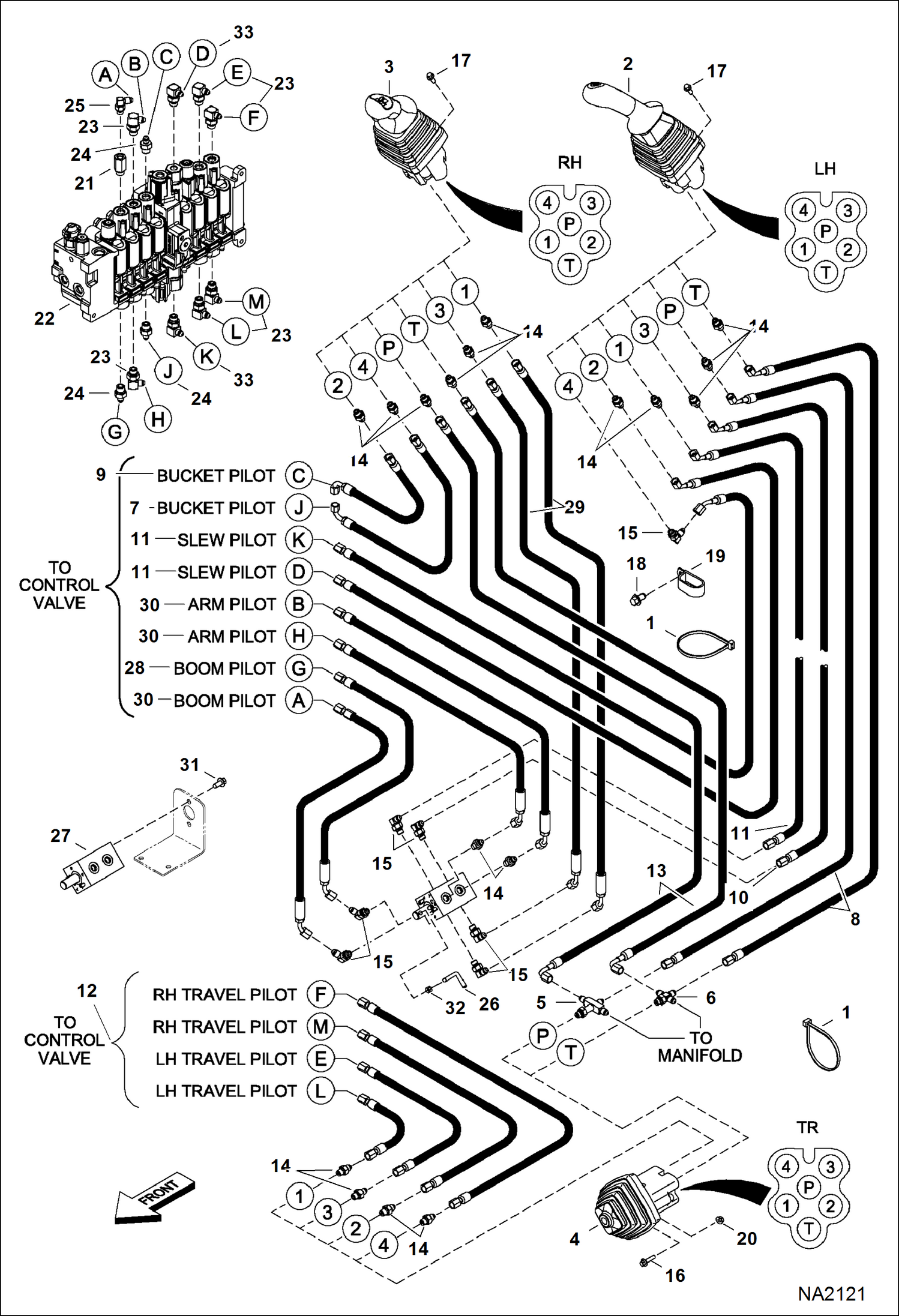

Запчасти Bobcat 425 HYDRAULIC CIRCUITRY (Pilot ISO/STD) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106588

HOSE

8

7106606

HOSE

9

7106609

HOSE

10

7106612

HOSE

11

7106614

HOSE

12

7107647

HOSE

13

7107649

HOSE

14

15KB0404

FTG HYD S Connector

14

79K4

O RING 10

15

17KB0404

FTG HYD ELBOW 90

15

79K4

O RING 10

16

17C416

BOLT

17

26GM6020

SCREW

18

26GM8013

BOLT

19

30H85

CLAMP

20

83D4

NUT 10

21

6686900

ORIFICE

22

6688388

VALVE, CONTROL See Illustration CONTROL VALVE/ MS1430

23

7124150

ELBOW

23

79K6

O RING 10

24

15KB0406

FTG HYD S CONNECTOR

24

79K6

O RING 10

25

16KB0808

FITTING, HYD CONNECTOR

25

79K8

O RING 10

26

6804251

HANDLE

27

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

28

7106619

HOSE

29

7106620

HOSE

30

7106621

HOSE

31

29CM816

SCREW

32

53DM6

NUT Was 1DM6 - A

33

7124150

ELBOW

33

TEE See Illustration EUROPEAN ACCESSORIES/ NA2132 - for Europe slew lock option

33

79K6

O RING 10
