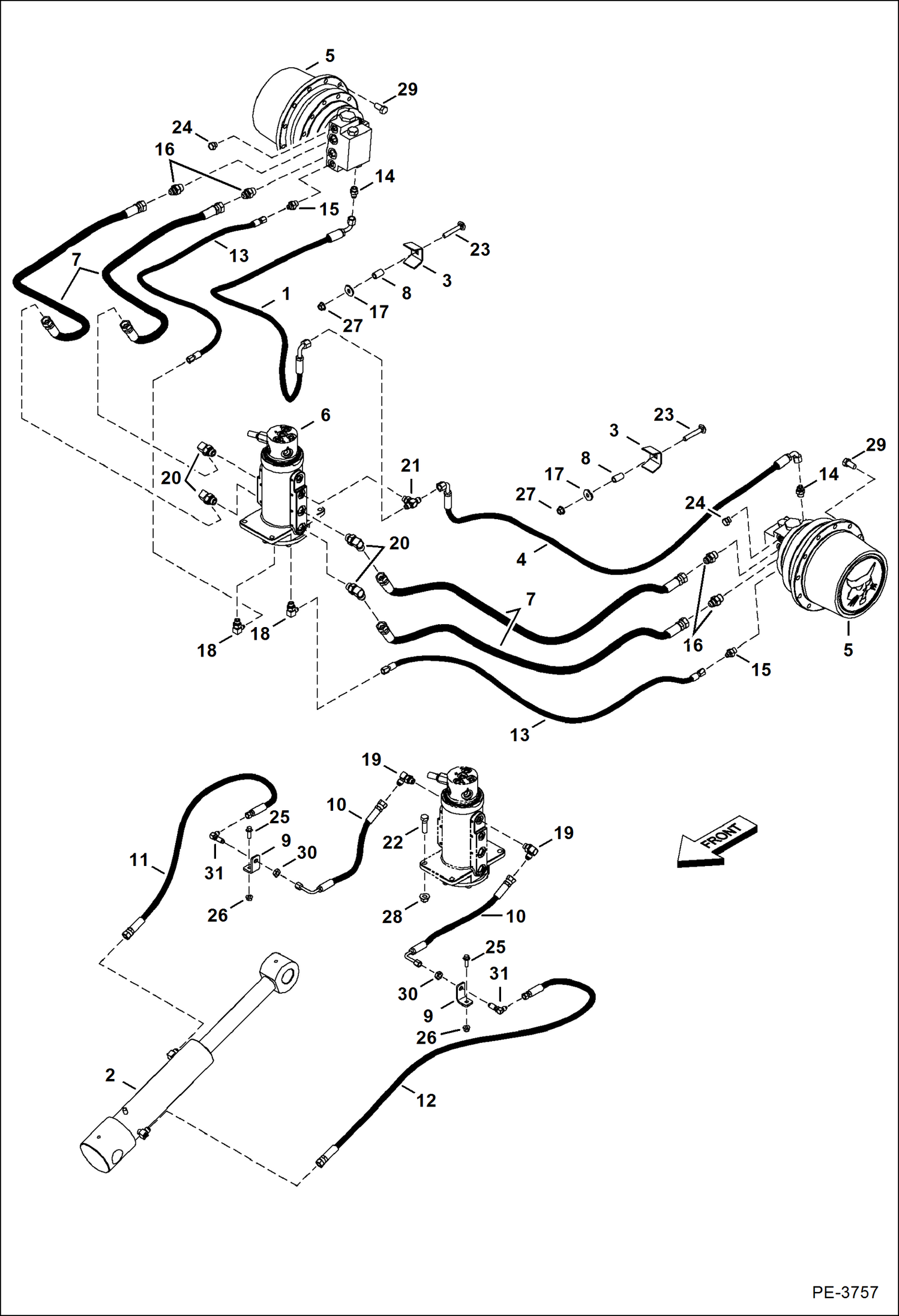

Запчасти Bobcat 425 HYDRAULIC CIRCUITRY (Lower) HYDRAULIC SYSTEM

1

7139244

HOSE, HYD ASSY

2

6597371

CYLINDER See Illustration BLADE CYLINDER/ PE3420 blade

3

6597380

CLAMP

4

7139243

HOSE, HYD ASSY

5

6677666

MOTOR, DRIVE HYD See Illustration TRAVEL MOTORS/ D2373

6

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - A

7

6800815

HOSE

8

6805602

SPACER

9

6810169

BRACKET

10

6810182

HOSE

11

6810183

HOSE

12

6810184

HOSE

13

7106590

HOSE

14

ADAPTOR See Illustration TRAVEL MOTORS/ D2373

15

15KB0406

FTG HYD S CONNECTOR

15

79K6

O RING 10

16

15KB0808

FITTING, HYD CONNECTOR

16

79K8

O RING 10

17

17EM100

WASHER

18

17KB0406

FITTING, HYD ELBOW

18

79K6

O RING 10

19

17KB0606

FITTING

19

79K6

O RING 10

20

17KB0808

FITTING, HYD ELBOW

20

79K8

O RING 10

21

19KB0606

TEE

21

79K6

O RING 10

22

1CM1240

BOLT

23

21CM1065

BOLT

24

24K5

PLUG

24

79K6

O RING 10

25

29CM825

BOLT

26

43DM8

NUT

27

43DM10

NUT

28

51DM12

NUT

29

55CM1225

BOLT

30

86F3

LOCKNUT

31

88F3

ELBOW 5
