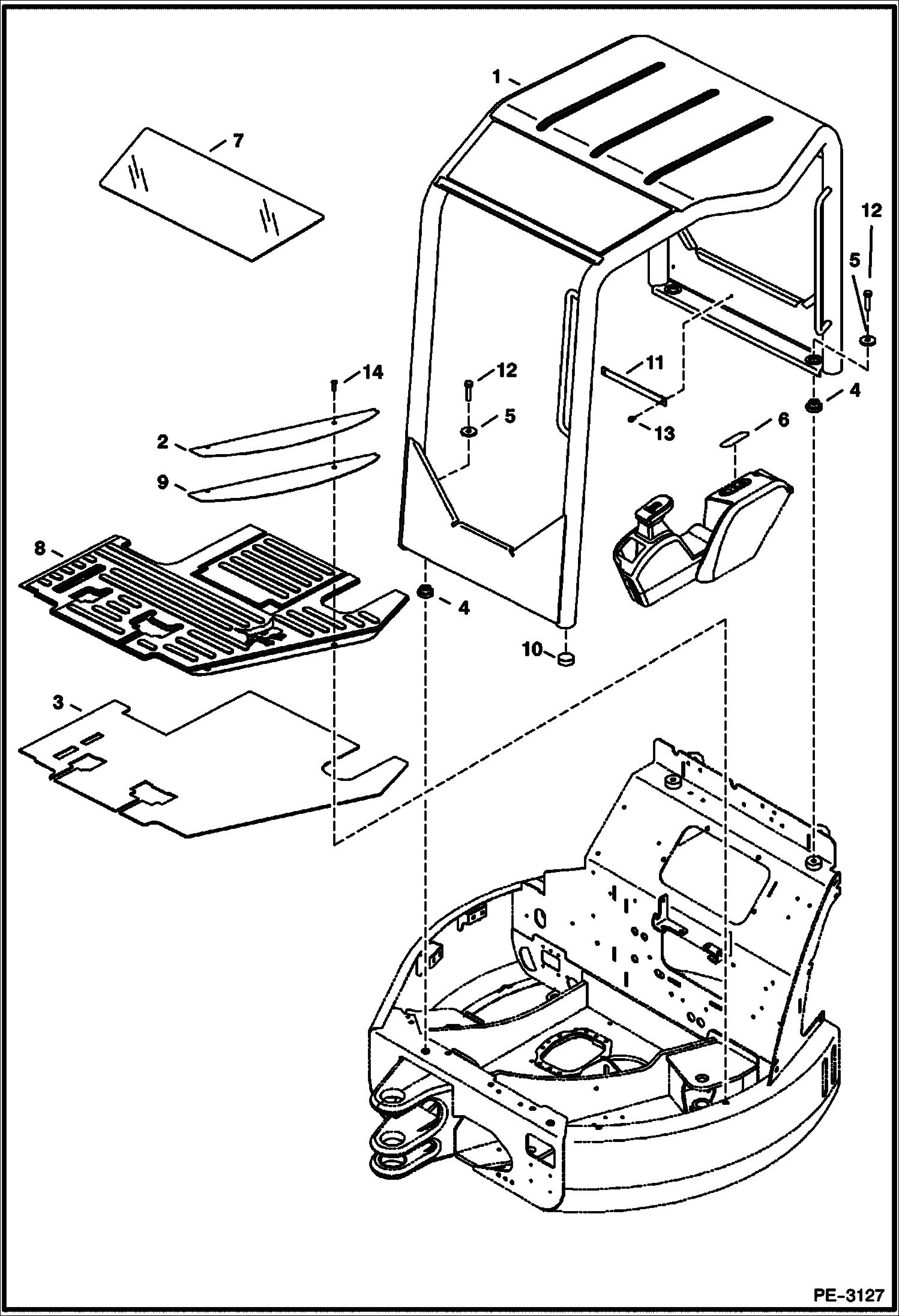

Запчасти Bobcat 425 OPERATOR CANOPY MAIN FRAME

1

CANOPY See Illustration CANOPY KIT/ PE3337 - NLA - Was 6818380 - A

2

6680293

TREAD

3

6684561

FLOORMAT

4

7001052

MOUNT, ENG Was 6804026 - A

5

6805244

WASHER

6

6808478

DECAL

7

6812030

WINDOW

8

7121606

FLOORMAT, CANOPY canopy

9

6812714

PLATE

10

6816135

INSULATION

11

6589347

STRAP

12

10CM1455

BOLT

13

26GM8016

SCREW

14

27CM1030

BOLT
