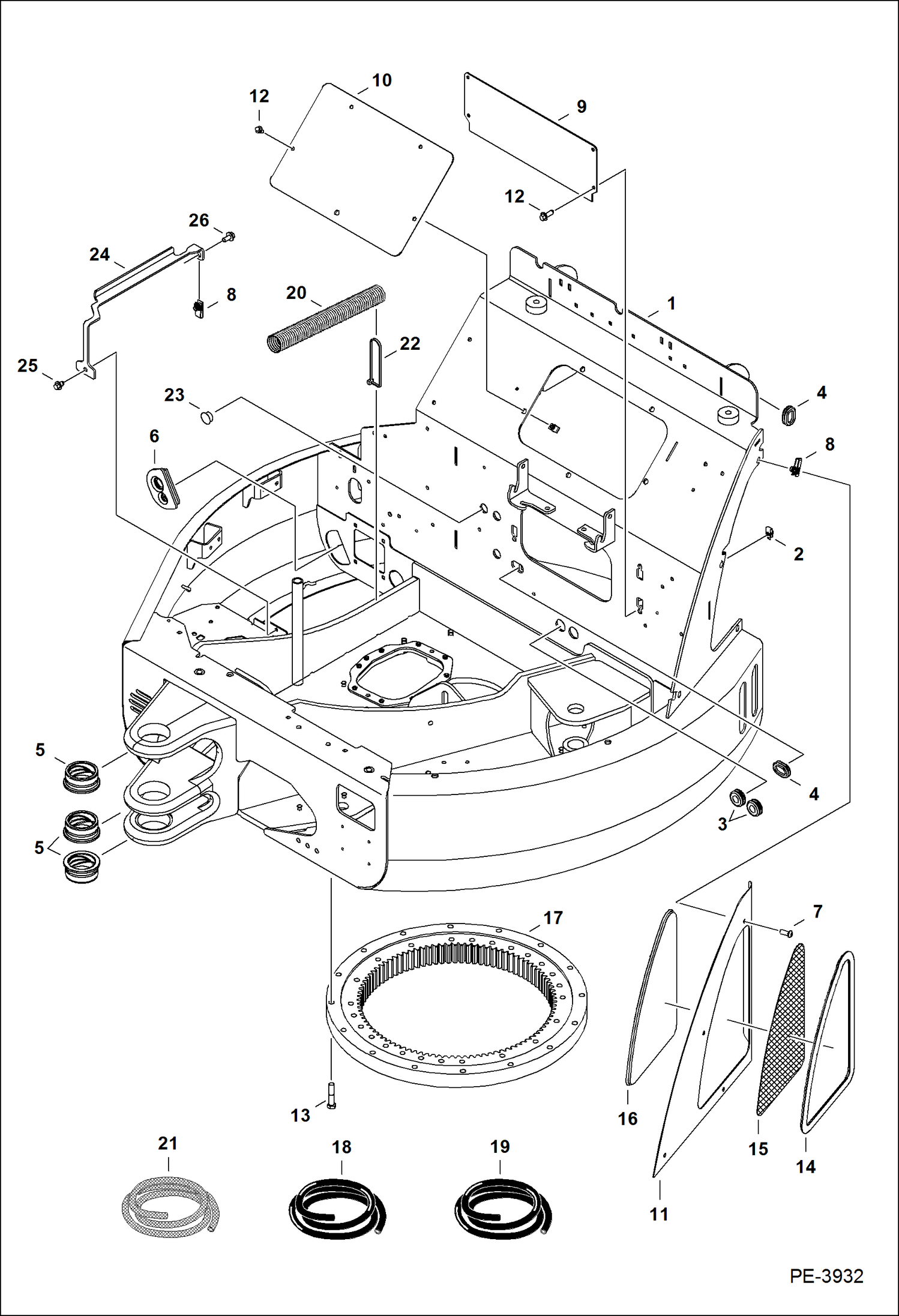

Запчасти Bobcat 425 UPPERSTRUCTURE MAIN FRAME

1

7122179

UPPERSTRUCTURE

2

6676169

NUT

3

6810133

GROMMET

4

6681886

GROMMET

5

6807956

BUSHING

6

7165623

GROMMET Was 6815653 - A

7

6817769

BOLT

8

6675722

NUT

9

7128946

COVER PLATE

10

7129696

COVER PLATE

11

7137287

COVER LH

12

29CM825

BOLT Was 29CM820 - B

13

55CM1260

SCREW

14

CHANNEL LOCKING NLA - 45.4'' (1153 mm) long - Order Ref. 19

15

7130461

SCREEN

16

STRIP FILLER NLA - 45.4'' (1153 mm) long - Order Ref. 18

17

6678952

RING, SLEW

18

6691060

CORD, BULK STRIP FILLER /FT bulk - sold per foot

19

6691059

CORD, BULK CHANNEL LOCKING /FT bulk - sold per foot

20

CONDUIT NLA - 16.25'' (413 mm) long - Order Ref. 21

21

6643249

CONDUIT bulk - sold per foot

22

6624289

STRAP, TIE

23

6697942

PLUG, NYLON

24

7169432

GUIDE, BRACKET

25

26GM10016

SCREW

26

29CM1020

BOLT
