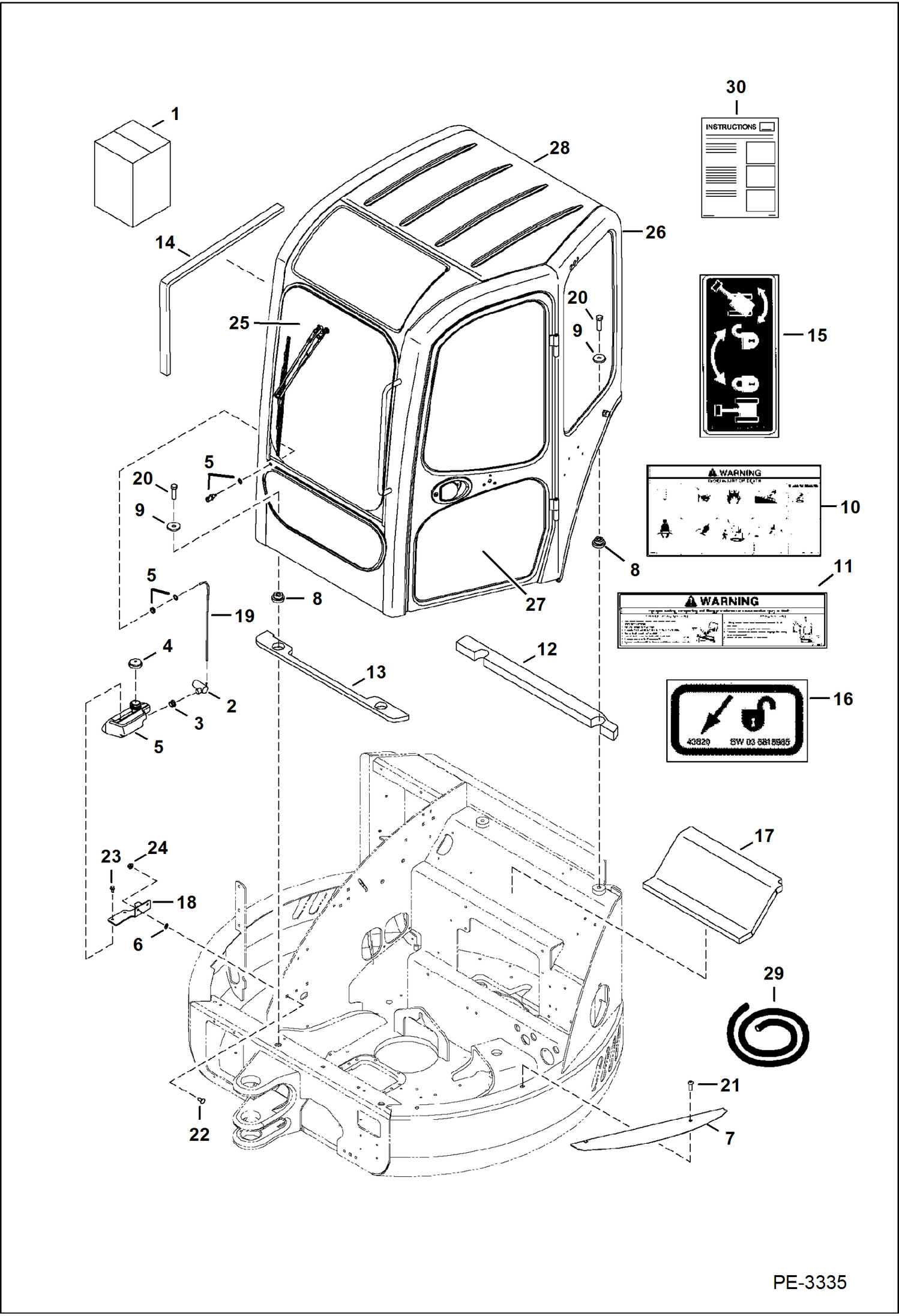

Запчасти Bobcat 425 CAB KIT ACCESSORIES & OPTIONS

1

CAB NLA - Order components - Was 7101967 - A

2

6664554

PUMP, WIPER WASHER

3

6666766

GROMMET

4

6674993

CAP

5

7133211

TANK, WASHER Was 6736875 - A

6

6675859

RETAINER

7

6680293

TREAD

8

7001052

MOUNT, ENG Was 6804026 - A

9

6805244

WASHER

10

6807776

DECAL warning - text

10

7120576

DECAL warning - ESA No-text

11

6808185

DECAL warning - text

11

7120577

DECAL warning - ESA No-text

12

6814325

SEAL

13

6814326

SEAL

14

6814908

SEAL

15

6815983

DECAL slew lock

16

6815985

DECAL latch

17

6816607

INSULATION

18

6817751

BRACKET

19

HOSE NLA - 33'' (839 mm) long - Order Ref 29

20

10CM1455

BOLT

21

27CM1030

BOLT

22

28CM820

BOLT

23

35C408

BOLT

24

43DM8

NUT

25

WINDOW See Illustration OPERATOR CAB/ PE3145

26

CAB ELECTRIC NLA - See Cab Electrical

27

7117231

DOOR, CAB ASSY

28

CAB NLA - Was 7134857 - A

28

7222000

KIT, CAB See Illustration OPERATOR CAB/ PE3147 & other cab illlustrations for other cab piece parts - Ref. 10 & 11

28

6990466

INSTRUCTIONS

29

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot

30

6902805

INSTRUCTIONS
