Запчасти Bobcat 425 ENGINE & UPPER GASKET KIT POWER UNIT

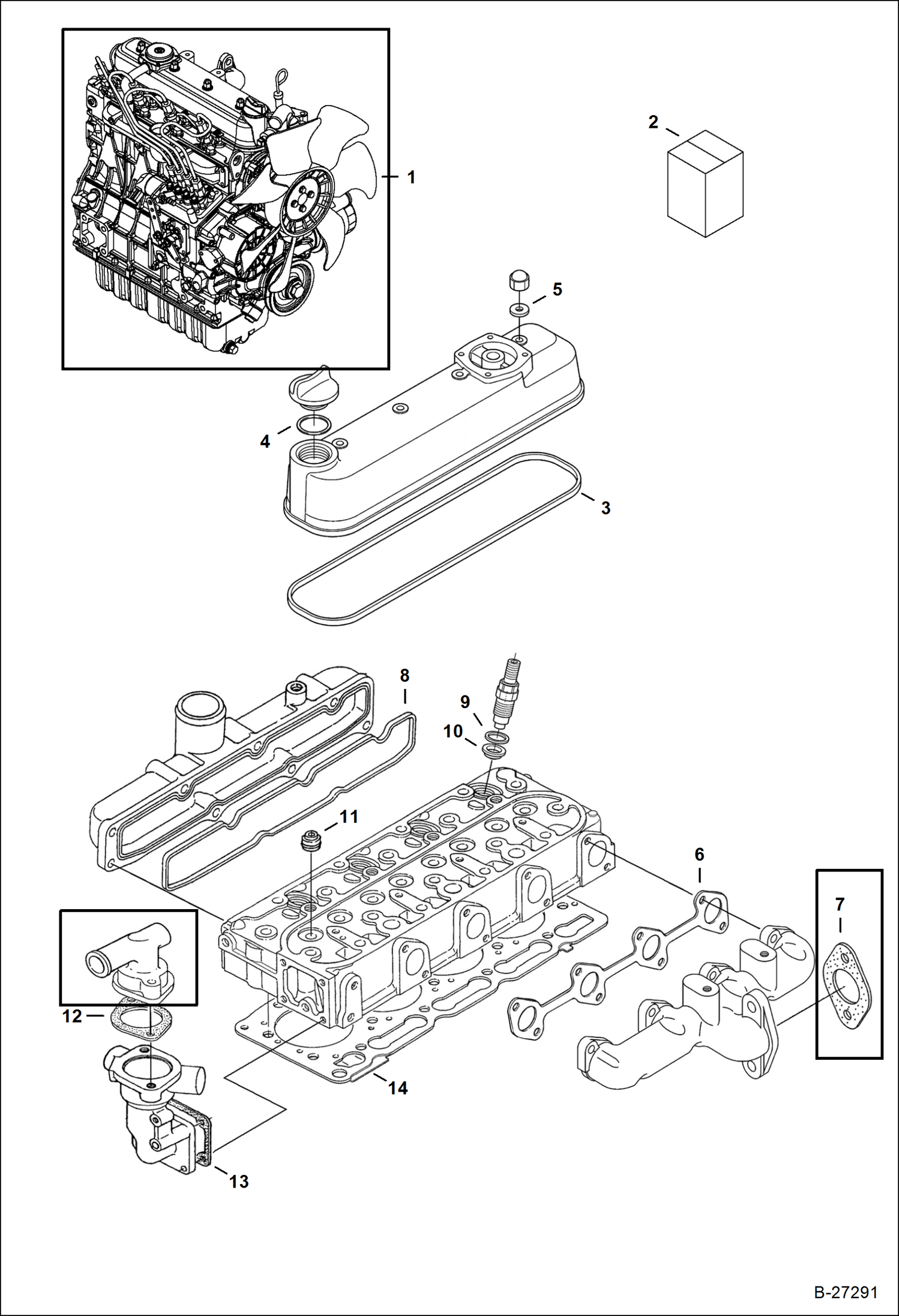

Схема запчастей Bobcat 425 - ENGINE & UPPER GASKET KIT POWER UNIT

Артикул

Название

Примечание

Количество

1

ENGINE, V1505-E2B-BC-2 NLA - for new engine order 6692567 engine and for US machines Also Order 6698505 low sulfur fuel cap - Was 6687833 - A

1

6687833REM

ENGINE, KUBOTA V1505

2

6698619

KIT, GASKET ENG UPPER Ref. 3-14

3

6657514

GASKET See Illustration HEAD COVER/ B26330 - valve cover

4

6683009

O-RING See Illustration HEAD COVER/ B26330 - oil filler cap

5

6599116

GASKET See Illustration HEAD COVER/ B26330 - valve cover nut

6

6657494

GASKET See Illustration MANIFOLDS/ B26352 - exhaust manifold

7

3974507

GASKET See Illustration ENGINE & ATTACHING PARTS/ PE3136 - muffler

8

6657493

GASKET See Illustration MANIFOLDS/ B26352 - intake manifold

9

6655218

GASKET See Illustration NOZZLE HOLDER & GLOW PLUG/ B26341 - injector nozzle

10

6655872

HEAT SEAL See Illustration NOZZLE HOLDER & GLOW PLUG/ B26341 - injector nozzle

11

6672436

SEAL See Illustration VALVE & ROCKER ARM/ B26351 - valve stem

12

6684863

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B26348 - thermostat

13

6657583

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B26348 - thermostat housing

14

6691297

GASKET See Illustration CYLINDER HEAD/ B26328 - cylinder head

Выбрано товаров: 15
