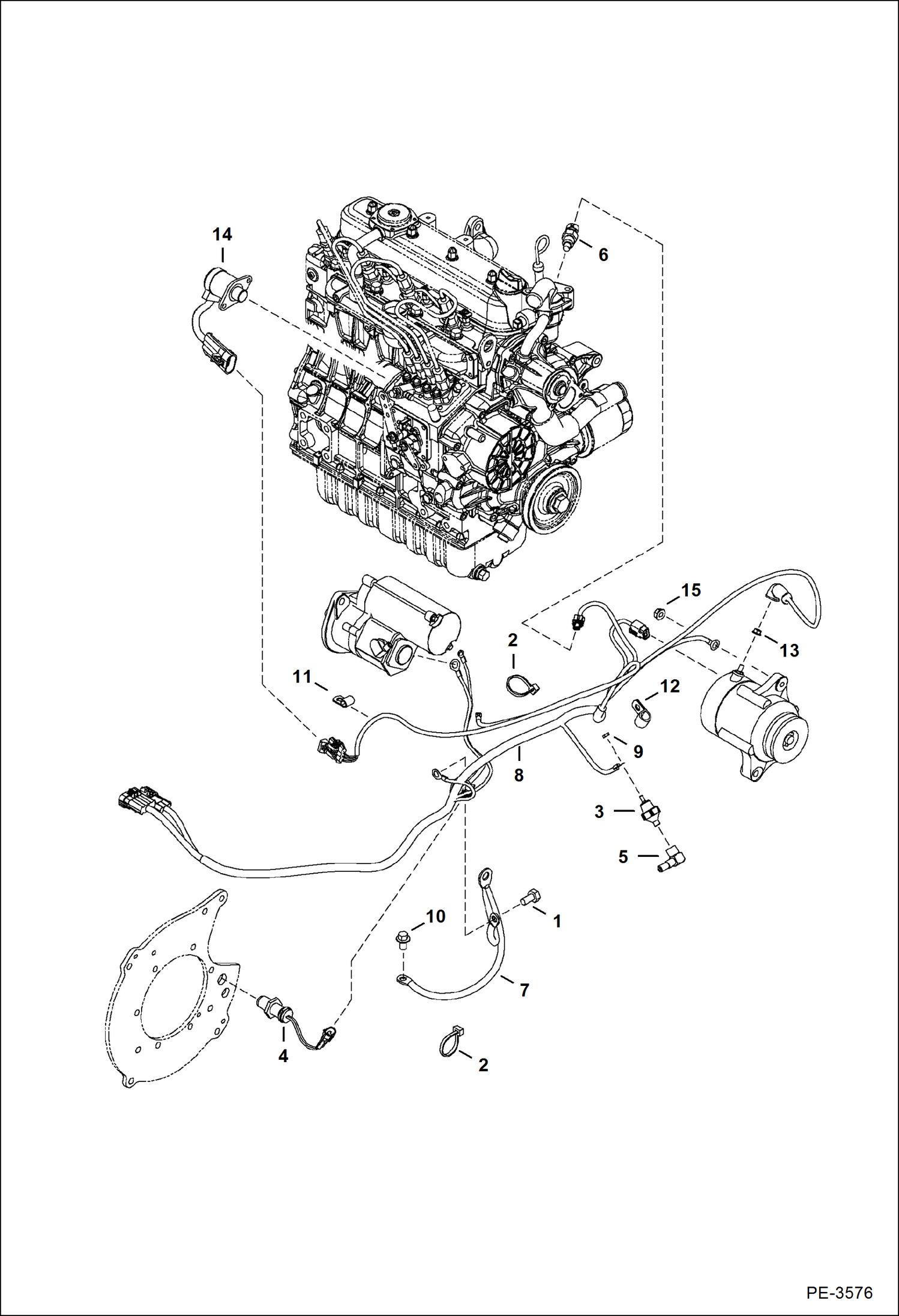

Запчасти Bobcat 425 ELECTRICAL (Engine) ELECTRICAL SYSTEM

1

5CM1020

SCREW

2

6624289

STRAP, TIE

3

6631010

SWITCH, PRESS OIL ENG

4

6684037

SENSOR

5

6707040

ELBOW

6

6718414

SENDER, TEMP ENG

7

7143930

CABLE Was 6810763 - B

8

7130796

HARNESS engine

9

12D8

NUT

10

29CM1016

BOLT

11

30H26

CLIP Was 30H22 - B

12

30H31

CLAMP 10

13

43DM6

NUT

14

6691313

SOLENOID,STOP fuel shutoff - Was 6691498 - B,D

15

43DM8

NUT
