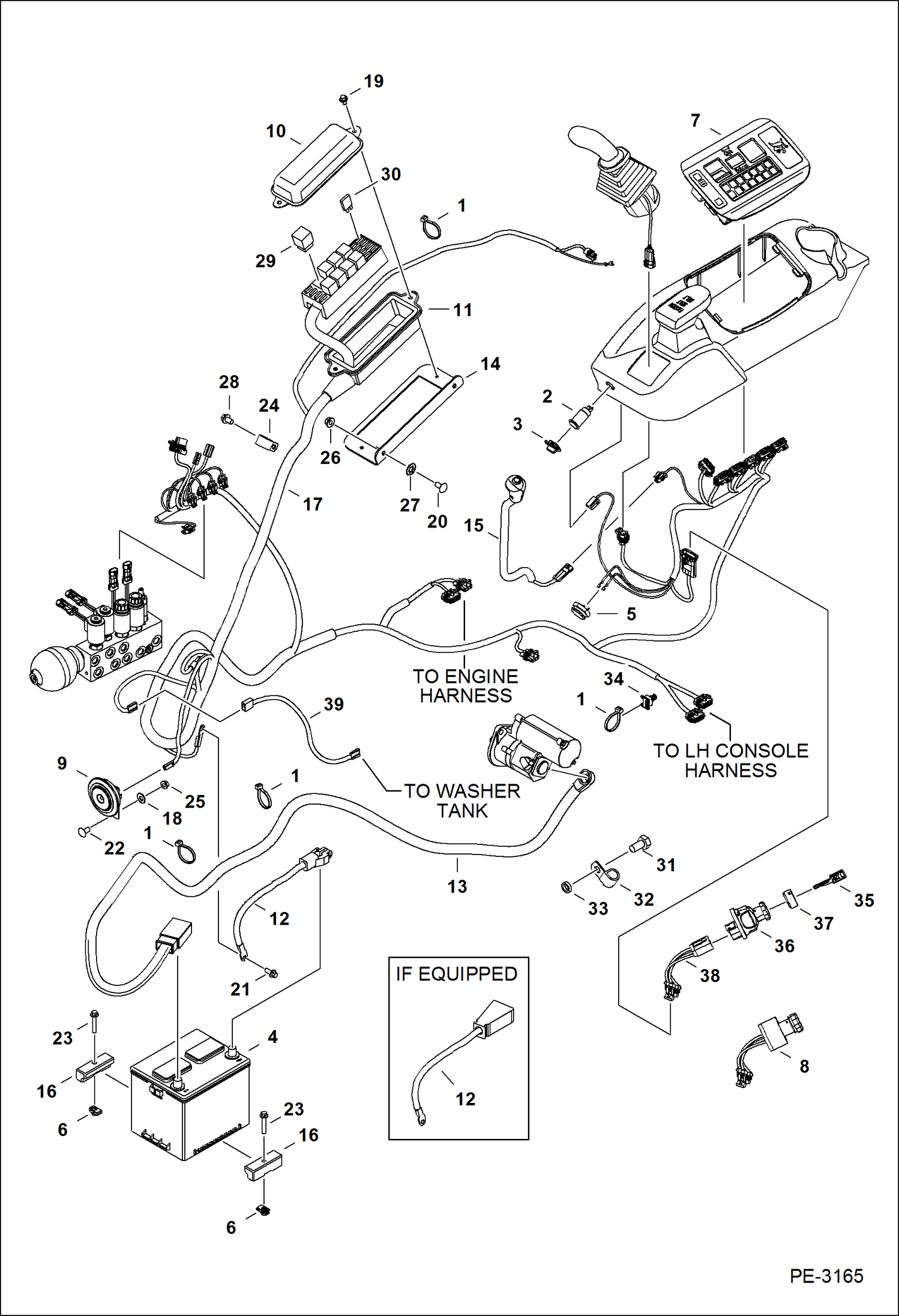

Запчасти Bobcat 425 ELECTRICAL (RH Console) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6664223

OUTLET

3

6664224

CAP

4

6669600

BATTERY 530A

5

6675705

ALARM

6

6676169

NUT

7

6691430

CONTROLLER See BTI395exc - keyed - Was 6678683 - A

7

6691431

CONTROLLER, KEYLESS PANEL See BTI395exc - keyless - Was 6678684 - A

8

SWITCH NLA - ignition W/attached harness - Order Ref. 36-38 - Was 6679842 - A

9

6691276

ALARM, HORN

10

6716621

COVER

11

6718659

HOUSING

12

6807431

CABLE neg

13

6809043

CABLE pos

14

6809110

BRACKET

15

BLADE LEVER NLA - Order components - Was 7117039 - A

15

6675721

SWITCH momentary

15

6675831

HANDLE front half

15

6675832

HANDLE back half

15

7117038

TUBE

15

SCREW NLA - #6 x 5/8 pan head

16

7120672

TIE DOWN battery

17

7130798

HARNESS

18

6675859

RETAINER Was 10EM80 - A

19

26GM8016

SCREW

20

28CM1020

BOLT

21

29CM1016

BOLT

22

28CM816

BOLT Was 29CM820 - A

23

29CM845

BOLT

24

30H50

CLIP

25

43DM8

NUT

26

51DM10

NUT

27

6674264

RETAINER NUT

28

26GM10020

BOLT

29

6679820

RELAY

30

6654803

FUSE 5A

30

6654805

FUSE 10A

30

6654806

FUSE, 15A

30

6625575

FUSE, 20A

30

6702444

FUSE 25A 5

31

5CM1020

SCREW

32

30H46

CLIP

33

6810385

BUSHING

34

6678666

MOUNT, STRAP TIE push in - Use W/tie strap

35

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 6709527 - A

35

6693241

KEY 10 ignition - single key W/O ring

36

6693245

SWITCH, IGN W/O attached harness

37

7000328

ADAPTER, SWITCH IGN

38

6697965

HARNESS

39

7169145

HARNESS, JUMPER modified design
