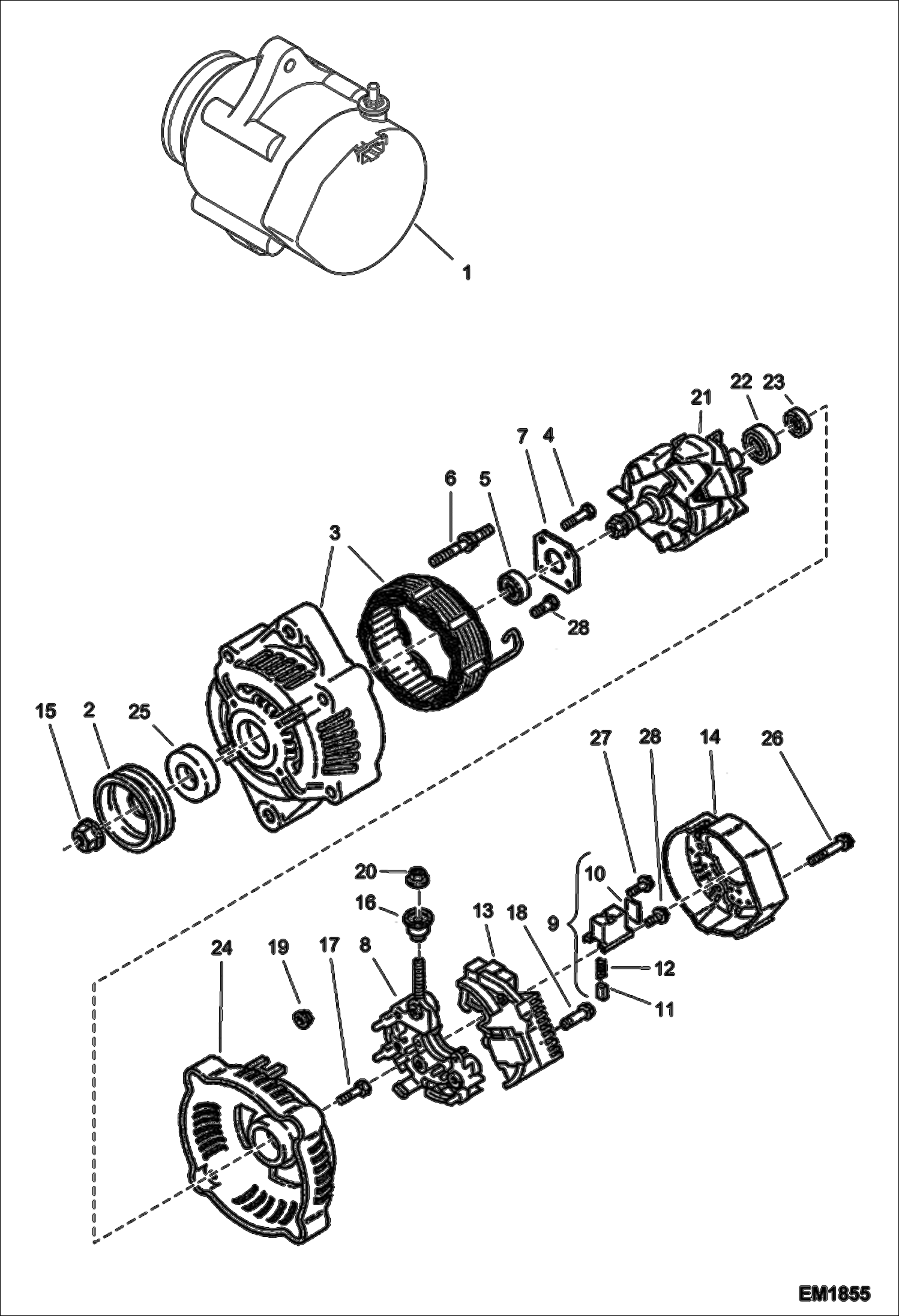

Запчасти Bobcat 418 ALTERNATOR (Denso) ELECTRICAL SYSTEM

1

6669618

ALTERNATOR, 40 AMP Ref. 2-28

1

6669618REM

ALTERNATOR

1

6669618EF

ALTERNATOR, 40 AMP

2

6671096

PULLEY

3

6671074

FRAME ASSY. W/Ref. 4-7

4

6671076

SCREW

5

6671077

BEARING

6

6671078

STUD

7

6671075

PLATE

8

6671080

HOLDER

9

6671081

HOLDER Ref. 10-12

10

6671082

SEAL

11

BRUSH NLA - Order Ref. 9

12

PIN NLA - Order Ref. 9

13

6671085

REGULATOR

14

6671086

COVER

15

6671087

NUT

16

6671088

INSULATOR

17

6671089

BOLT

18

6671090

SCREW

19

6671091

NUT

20

6671092

NUT

21

6671093

ROTOR ASSY. W/Ref. 22-23

22

6671094

BEARING

23

6671095

COVER

24

6671079

FRAME END

24

ROTOR NLA - Order Ref. 21

25

6671097

SPACER

26

6671098

BOLT

27

6671099

SCREW

28

6671100

SCREW
