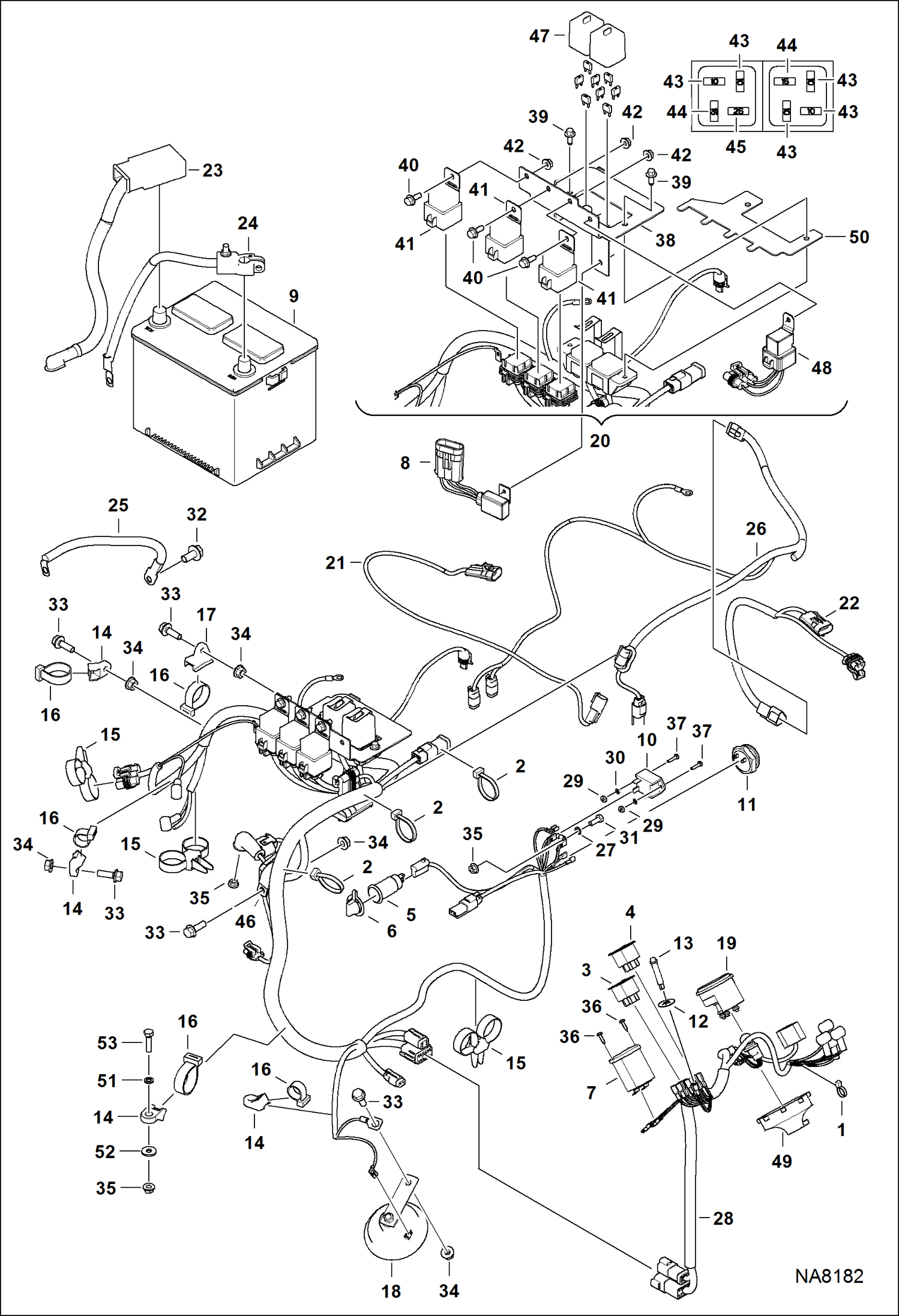

Запчасти Bobcat 418 ELECTRICAL ELECTRICAL SYSTEM

1

6610510

TIE

2

6624289

STRAP, TIE

3

6661598

LAMP

4

6661599

LAMP

5

6664223

OUTLET

6

6664224

CAP

7

6664886

HOURMETER

8

6669415

TIMER, SOLENOID

9

6670251

BATTERY, DRY 530 AMP 530A Was 6669600 - D

10

6673122

TIMER

11

6675705

ALARM

12

6675859

RETAINER

13

7227564

LIGHT, LED GREEN - Was 6675908 - A

14

6678667

MOUNT

15

6678668

STRAP, DUAL TIE

16

6678669

STRAP

17

6678818

MOUNT

18

6691276

ALARM, HORN

19

6634273

GAUGE, FUEL - A

19

7017075

GAUGE, FUEL - A

20

7141452

HARNESS,FRAME W/Ref. 39-50

21

7141454

HARNESS,RH CONSOLE

22

7141455

HARNESS,LH CONSOLE

23

7141457

BATTERY,CABLE POSITIVE

24

7141458

BATTERY,CABLE NEGATIVE

25

7141459

BATTERY CABLE FRAME

26

7147217

HARNESS PILOT

27

7156777

WASHER

28

7193279

HARNESS PANEL - Was 7181244 - A

29

12D6

NUT 10

30

12E6

WASHER

31

1CM616

SCREW - Was 1C616 - D

32

59CM1020

SCREW HX FLNG W/T8.8 - Was 29CM1020 - A

33

29CM825

BOLT

34

43DM8

NUT

35

51DM6

NUT

36

58G610

SCREW PNH CRSEC TAP

37

87G610

SCREW

38

7134673

PLATE

39

6810157

BOLT

40

29CM616

BOLT

41

6670312

SWITCH, MAGNETIC

42

43DM6

NUT

43

6707620

FUSE, 10A MINI 5 10A

44

6707621

FUSE, 15A MINI 5 15A

45

6707623

FUSE, 25A MINI 5 25A

46

30H69

CLAMP, INSULATED

47

COVER, FUSE BOX NLA - Order Ref. 21

48

6675928

RELAY, LATCHING

49

HARNESS NLA - Order Ref. 21

50

6679027

CLAMP

51

15EM60

WASHER

52

17EM60

WASHER

53

1CM625

BOLT
