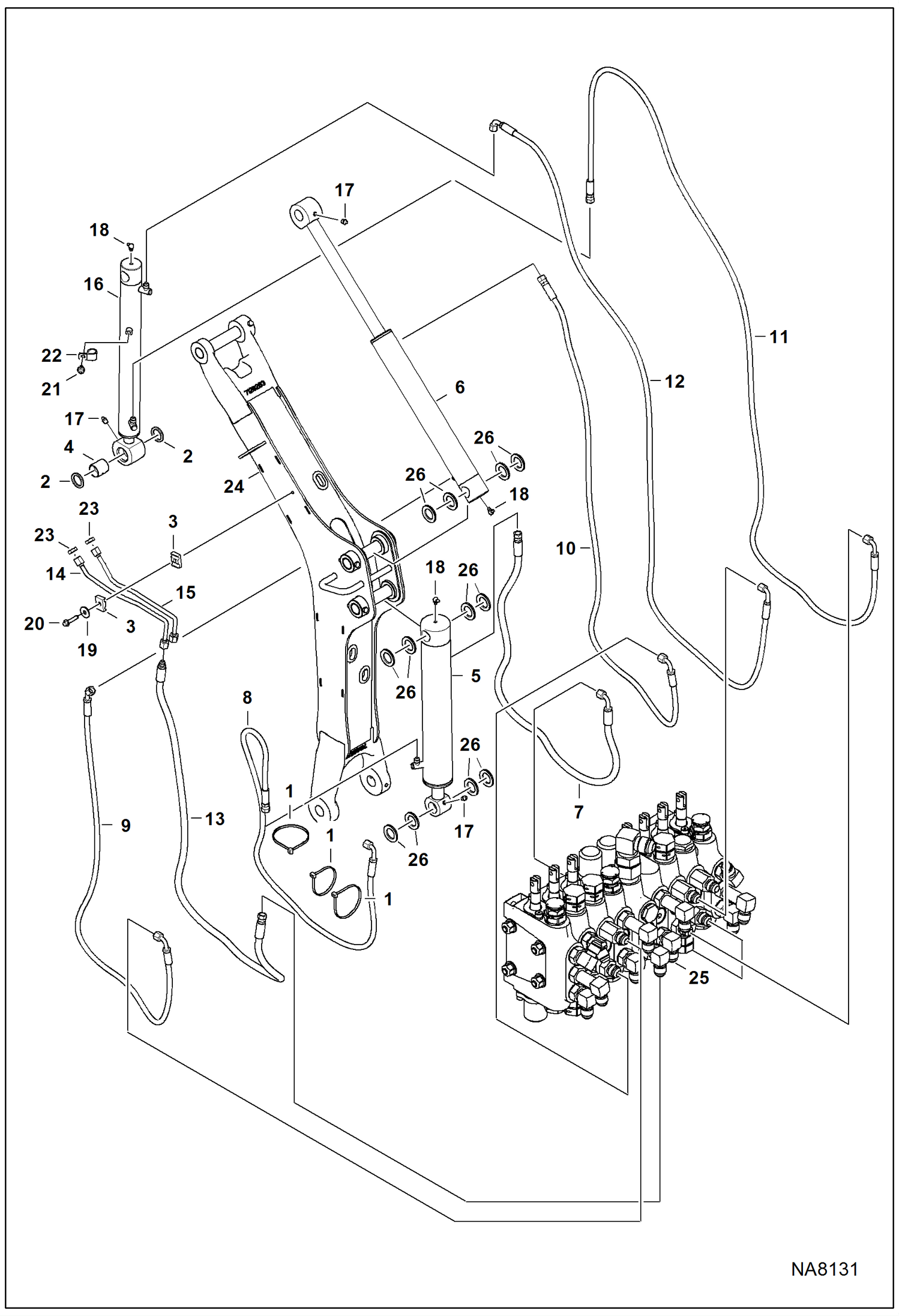

Запчасти Bobcat 418 HYDRAULIC CIRCUITRY (Boom) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6653534

SEAL

3

6726277

CLAMP

4

6804060

BUSHING

5

7167539

CYLINDER ASSY boom Was 7143796 - A

6

7143906

CYLINDER ASSY arm

7

7144751

HOSE ASSY

8

7144752

HOSE ASSY

9

7144753

HOSE ASSY

10

7144754

HOSE ASSY

11

7144755

HOSE ASSY

12

7144756

HOSE ASSY

13

7144757

HOSE ASSY

14

7144759

TUBELINE

15

7144760

TUBELINE - B

15

7228369

TUBELINE

16

7165763

CYLINDER ASSY bucket - Was 7154502 - A

17

10H25

FITTING, GREASE 5

18

12H25

FITTING

19

17EM100

WASHER

20

26GM8040

SCREW SELF TAPPING

21

29CM812

BOLT

22

30H65

CLIP

23

86F5

NUT
