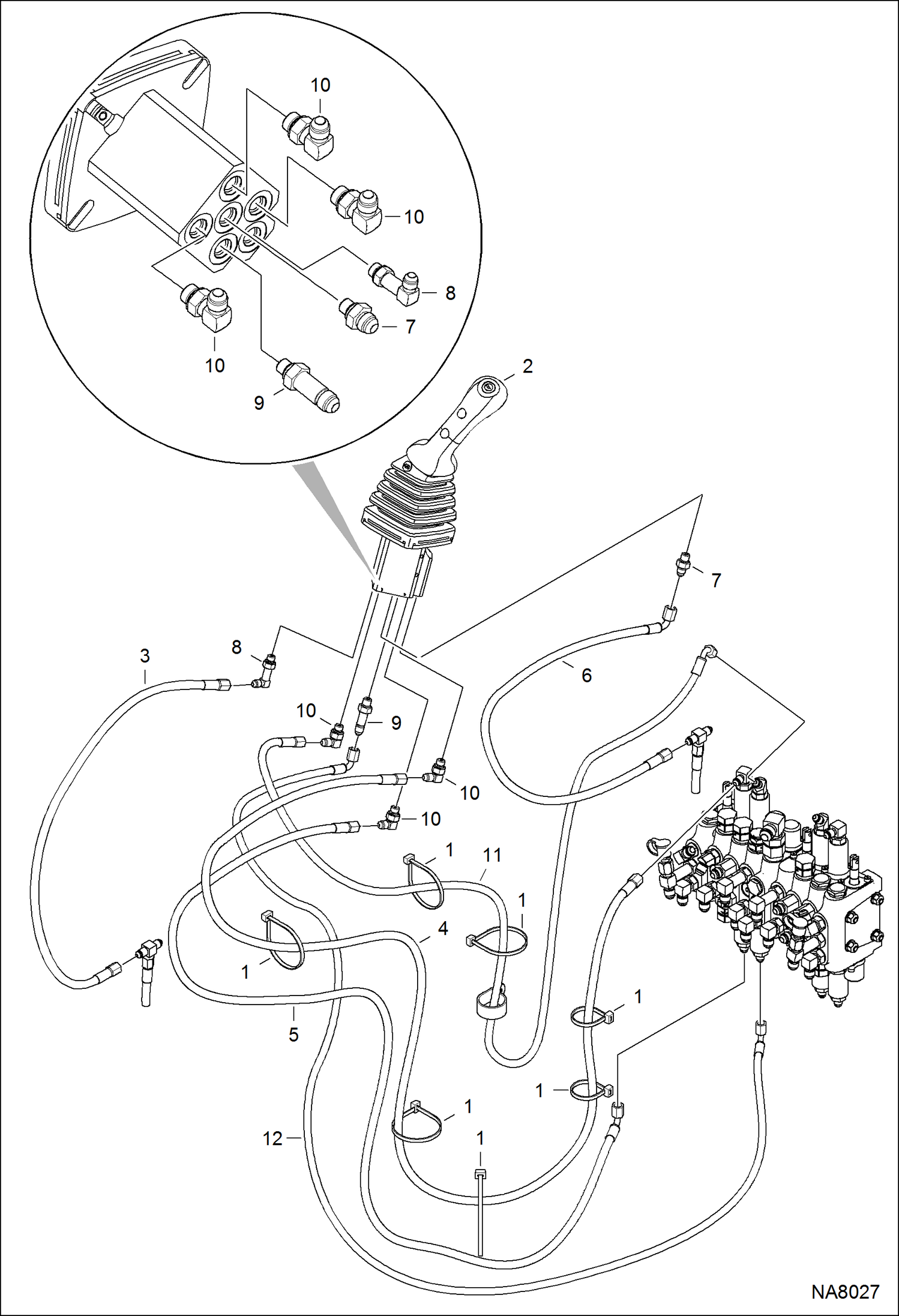

Запчасти Bobcat 418 HYDRAULIC CIRCUITRY (Pilot, LH Joystick) AB4711453 - 12155 HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

7220731

JOYSTICK, LH See Illustration LH JOYSTICK CONTROLS/ NA8063

3

7200429

HOSE, HYD

4

7177351

HOSE ASSY Was 7142335 - A

5

7177353

HOSE ASSY Was 7142337 - A

6

7177354

HOSE ASSY Was 7142338 - A

7

16KB0404

FTG HYD L CONNECTOR Was 16KB404 - D

7

79K4

O RING 10

8

7173375

FTG HYD ELBOW 90

8

79K4

O RING 10

9

15KB0404

FTG HYD S Connector Was 15KB404 - D

9

79K4

O RING 10

10

17KB0404

FTG HYD ELBOW 90 Was 17KB404 - D

10

79K4

O RING 10

11

7177352

HOSE ASSY

12

7177350

HOSE ASSY
