SWIVEL JOINT (S/N AB4711001 - 11204)

Запчасти Bobcat 418 SWIVEL JOINT (S/N AB4711001 - 11204) HYDRAULIC SYSTEM

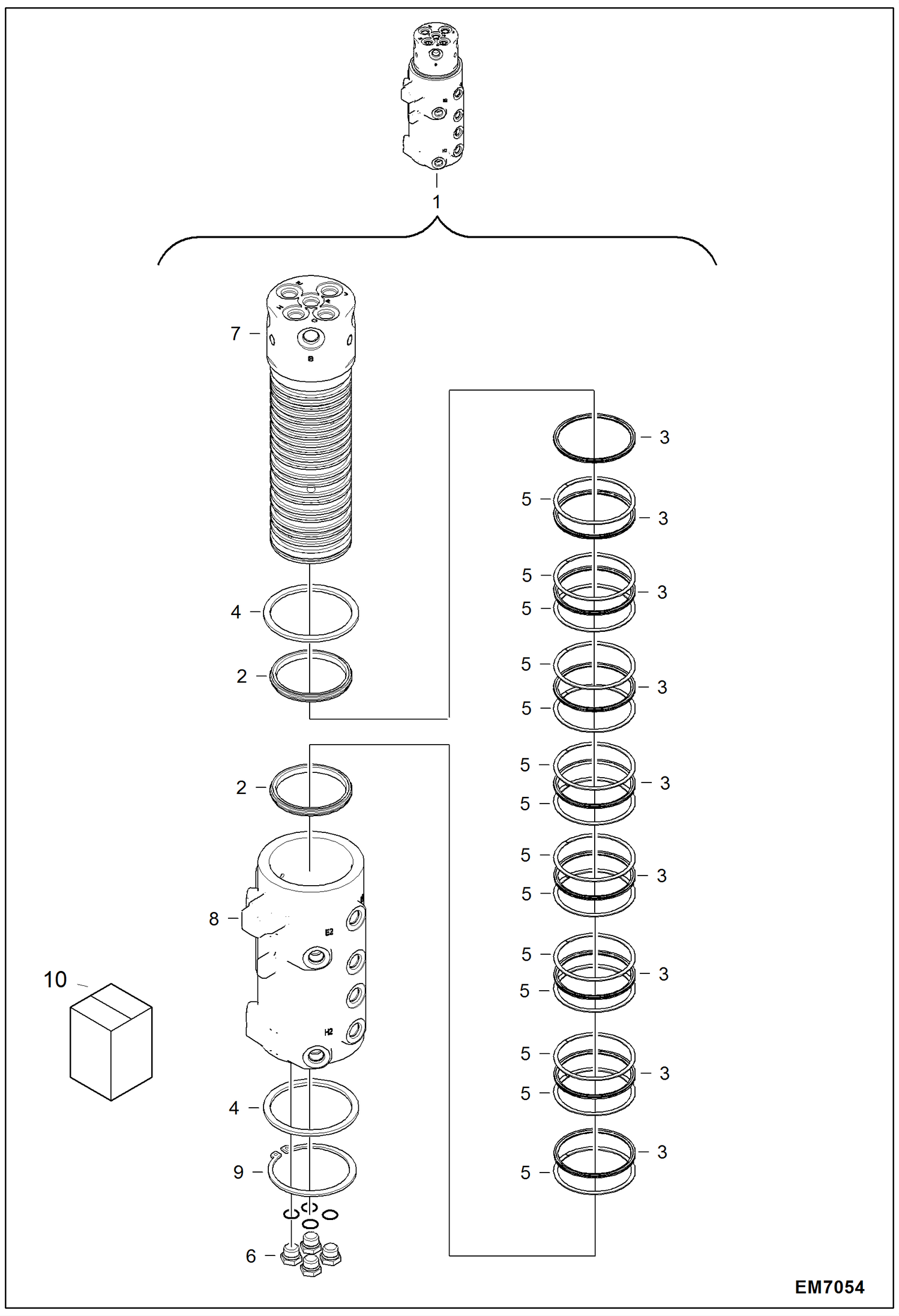

Схема запчастей Bobcat 418 - SWIVEL JOINT (S/N AB4711001 - 11204) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SWIVEL ASSY See Illustration SWIVEL JOINT/ EM7050 NLA - Model 7102237 - W/Ref. 2-9 Was 7102237 - A

2

7225616

SEAL Was 6686864 - A

3

6686865

SEAL

4

6686867

WASHER

5

6686925

RING

6

6812171

PLUG W/ O-ring

6

75K6

O-RING

7

7102238

SPOOL

8

7102239

CASE

9

21J44

RING, SNAP
