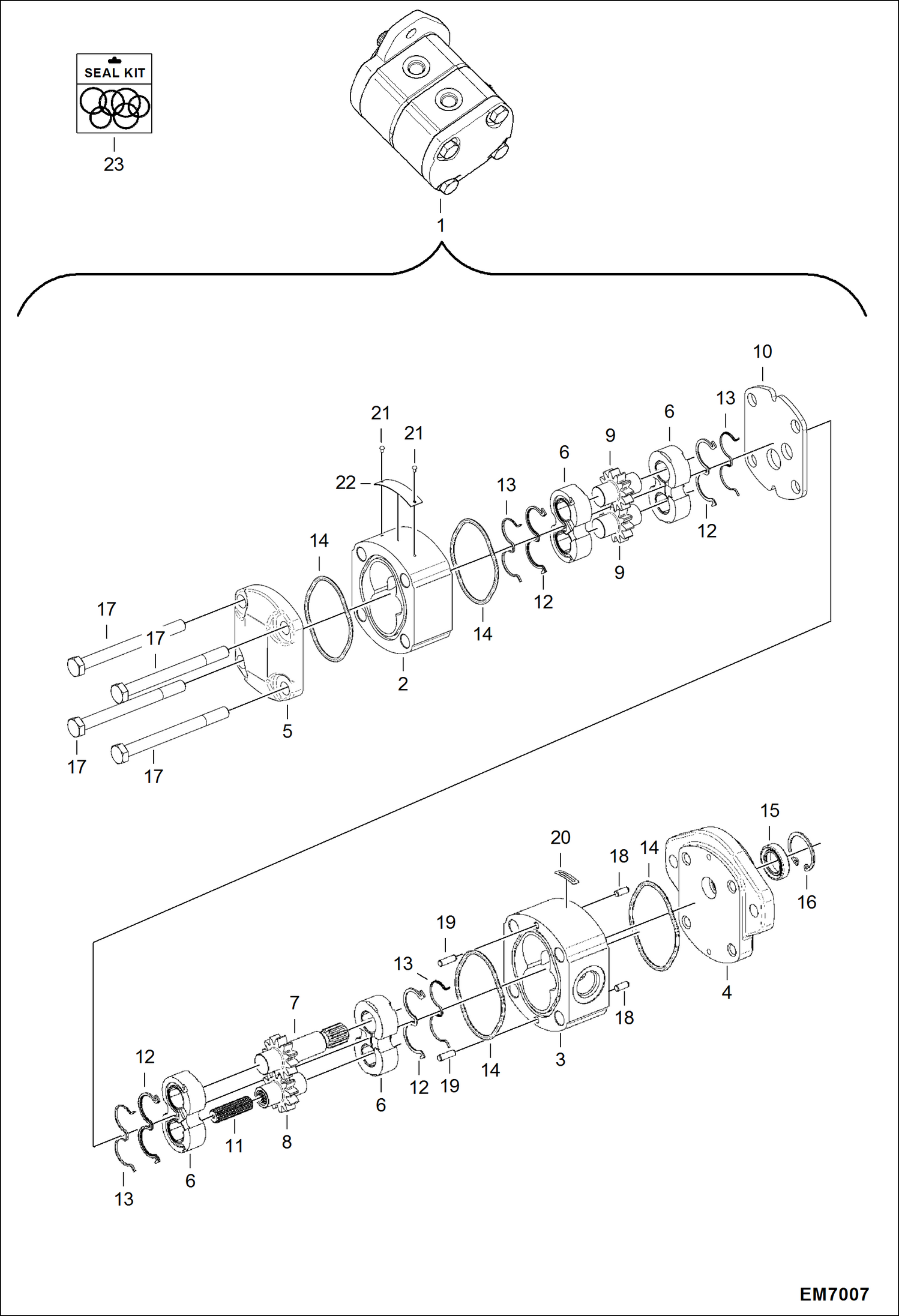

Запчасти Bobcat 418 HYDRAULIC PUMP HYDRAULIC SYSTEM

1

6691175

PUMP GEAR W/Ref. 2-22

2

7000372

HOUSING

3

7000373

HOUSING

4

7000374

FLANGE

5

7000383

COVER

6

7000384

BLOCK

7

7000385

DRIVE GEAR

8

7000386

DRIVE GEAR

9

7000387

DRIVE GEAR

10

7000388

PLATE

11

7000389

COUPLER

12

7000390

SEAL

13

7000391

SEAL BACK-UP

14

7000392

ORING

15

7000393

SEAL LIP

16

7000395

RING SNAP

17

7000396

SCREW

18

7000397

PIN DOWEL

19

7000398

PIN DOWEL

20

7000399

ADHESIVE SELF ARROW

21

7000400

PIN

22

PLATE, SERIAL NO. NLA - Order Ref. 1

23

7000967

KIT, SEAL
