VALVE SECTION (Bucket) (S/N AB4711501 & Above)

Запчасти Bobcat 418 VALVE SECTION (Bucket) (S/N AB4711501 & Above) HYDRAULIC SYSTEM

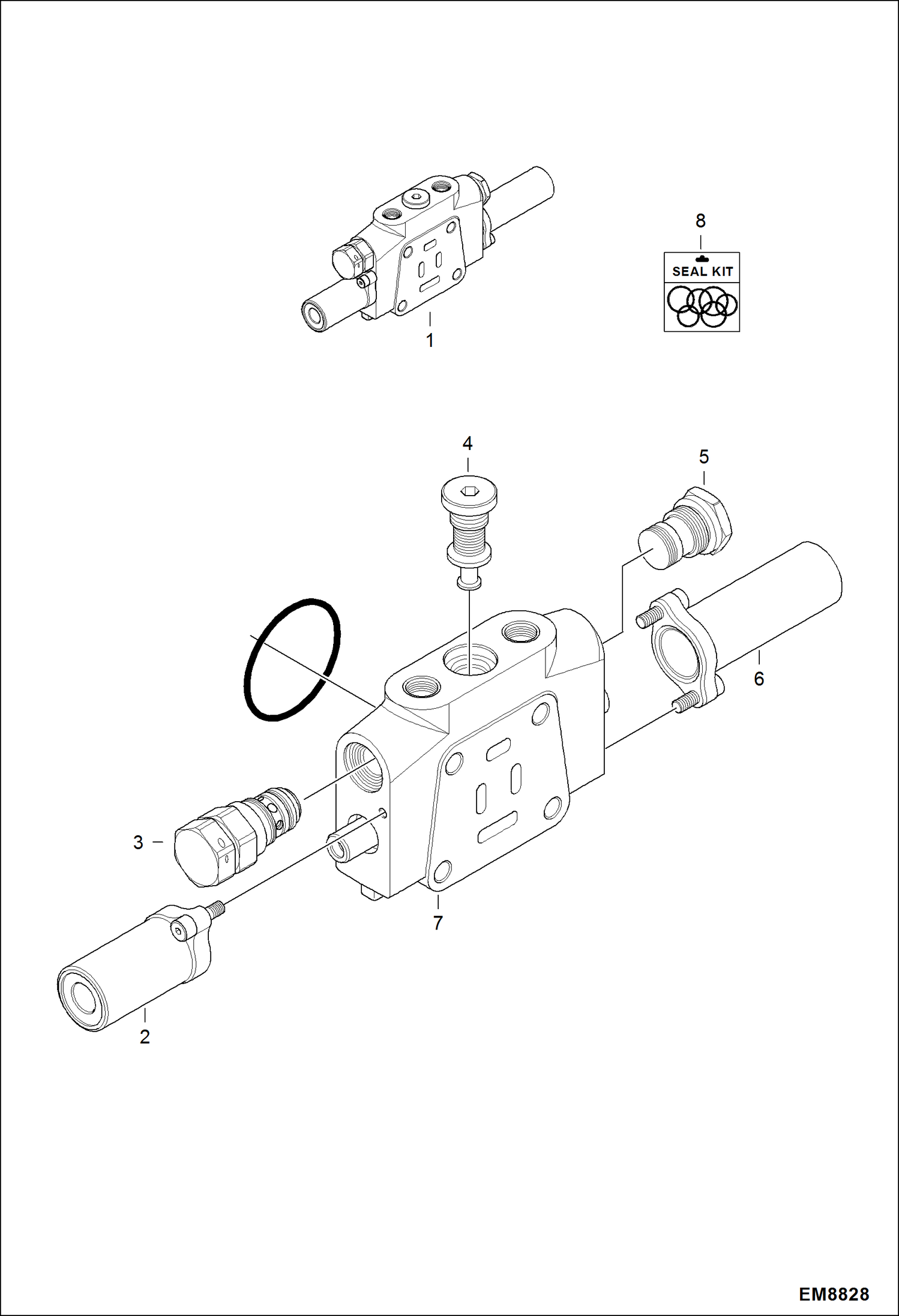

Схема запчастей Bobcat 418 - VALVE SECTION (Bucket) (S/N AB4711501 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7022015

SECTION, VALVE W/Ref. 2-7 Was 7022016 - D

2

7000519

CONTROL

3

7000511

VALVE

4

7000517

VALVE CHECK

5

6969770

PLUG KIT Was 7011976 - B

6

7000520

CONTROL

7

BLOCK NLA - Order Ref. 1

8

7022025

KIT, SEAL

Выбрано товаров: 0
