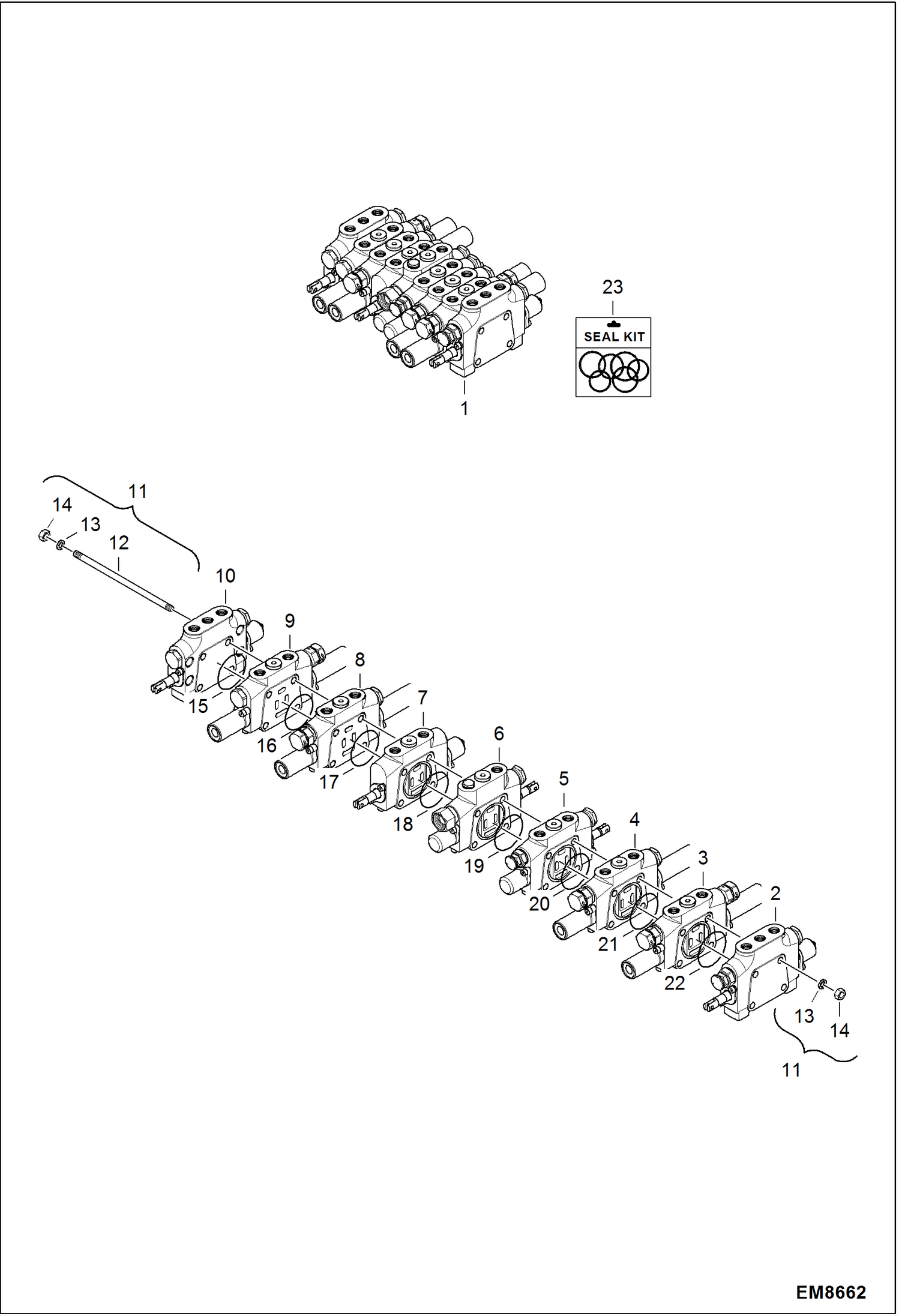

Запчасти Bobcat 418 CONTROL VALVE (Model 60090539SS) (S/N AB4711501 & Above) HYDRAULIC SYSTEM

1

7201899

VALVE, CONTROL Model 60090539SS - Ref. 2-22

2

7000534

VALVE SECTION See Illustration VALVE SECTION/ EM7304 L.H. travel

3

7022013

SECTION, VALVE See Illustration VALVE SECTION/ EM8820 slew

4

7022014

SECTION, VALVE See Illustration VALVE SECTION/ EM8827 arm

5

7000528

VALVE SECTION See Illustration VALVE SECTION/ EM7182 offset

6

7000529

VALVE SECTION See Illustration VALVE SECTION/ EM7188 aux

7

7000530

VALVE SECTION See Illustration VALVE SECTION/ EM7196 blade

8

7022015

SECTION, VALVE See Illustration VALVE SECTION/ EM8828 bucket

9

7022016

SECTION, VALVE See Illustration VALVE SECTION/ EM8829 boom

10

7000539

VALVE SECTION See Illustration VALVE SECTION/ EM7305 R.H. travel

11

7000514

KIT TIE ROD Ref. 12-14

12

ROD, TIE NLA - Order Ref. 11

13

WASHER NLA - Order Ref. 11

14

NUT NLA - Order Ref. 11

15

SEAL NLA - Order Ref. 23

16

SEAL NLA - Order Ref. 23

17

SEAL NLA - Order Ref. 23

18

SEAL NLA - Order Ref. 23

19

SEAL NLA - Order Ref. 23

20

SEAL NLA - Order Ref. 23

21

SEAL NLA - Order Ref. 23

22

SEAL NLA - Order Ref. 23

23

7022017

KIT, SEAL Ref. 15-22
