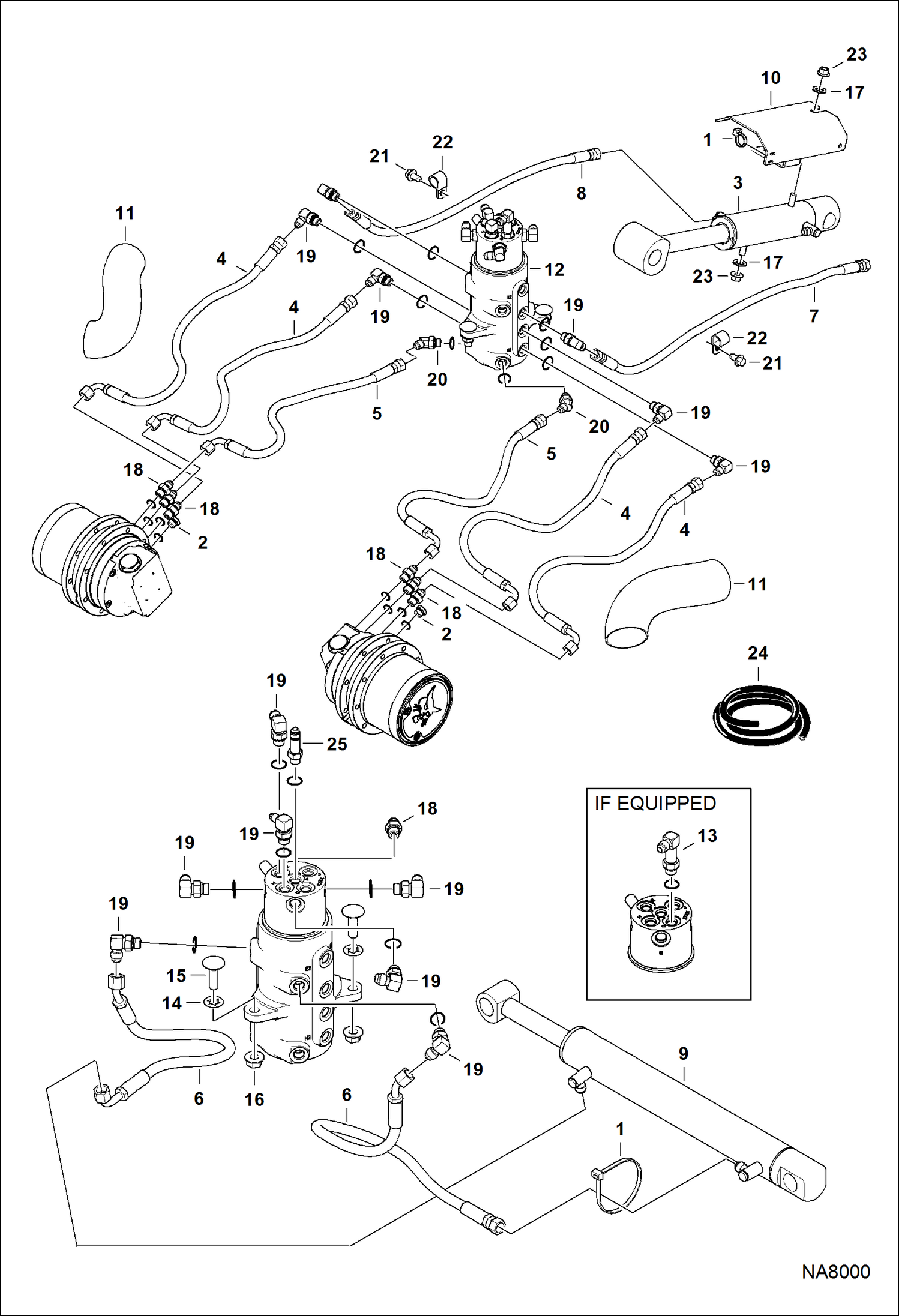

Запчасти Bobcat 418 HYDRAULIC CIRCUITRY (Lower) (S/N AB4711898 & Above) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

24K5

PLUG

2

79K6

O RING 10

3

7103256

CYL ASSY 319 BLADE

4

7132564

HOSE ASSY

5

7132565

HOSE ASSY

6

7132566

HOSE ASSY

7

7132568

HOSE HYDRAULIC ASSEMBLY

8

7132569

HOSE HYDRAULIC ASSEMBLY

9

7133241

CYLINDER ASSY

10

7142331

SHIELD CYL W/A

11

HOSE, COVER NLA - 272 mm (10.70'') long - Order Ref. 24

12

7199077

SWIVEL ASSY See Illustration SWIVEL JOINT/ NA8006

13

6812815

FITTING if equipped

14

6690637

RETAINER

15

33CM1240

BOLT

16

51DM12

NUT

17

15EM140

WASHER

18

15KB0606

FITTING, HYD CONNECTOR

18

79K6

O RING 10

19

17KB0606

FITTING

19

79K6

O RING 10

20

18KB0606

FITTING, HYD ELBOW

20

79K6

O RING 10

21

26GM10020

BOLT

22

30H65

CLIP

23

43DM10

NUT

24

7154027

HOSE COVER BULK bulk - sold per foot

25

15KB0606

FITTING, HYD CONNECTOR See Illustration HYDRAULIC CIRCUITRY/ NA8003 - 0.56'' length above nut - Use W/7199408 hose medium drop

25

16KB0606

FTG HYD L CONNECTOR See Illustration HYDRAULIC CIRCUITRY/ NA8003 - 1.56'' length above nut - Use W/7226450 hose short drop

25

79K6

O RING 10
