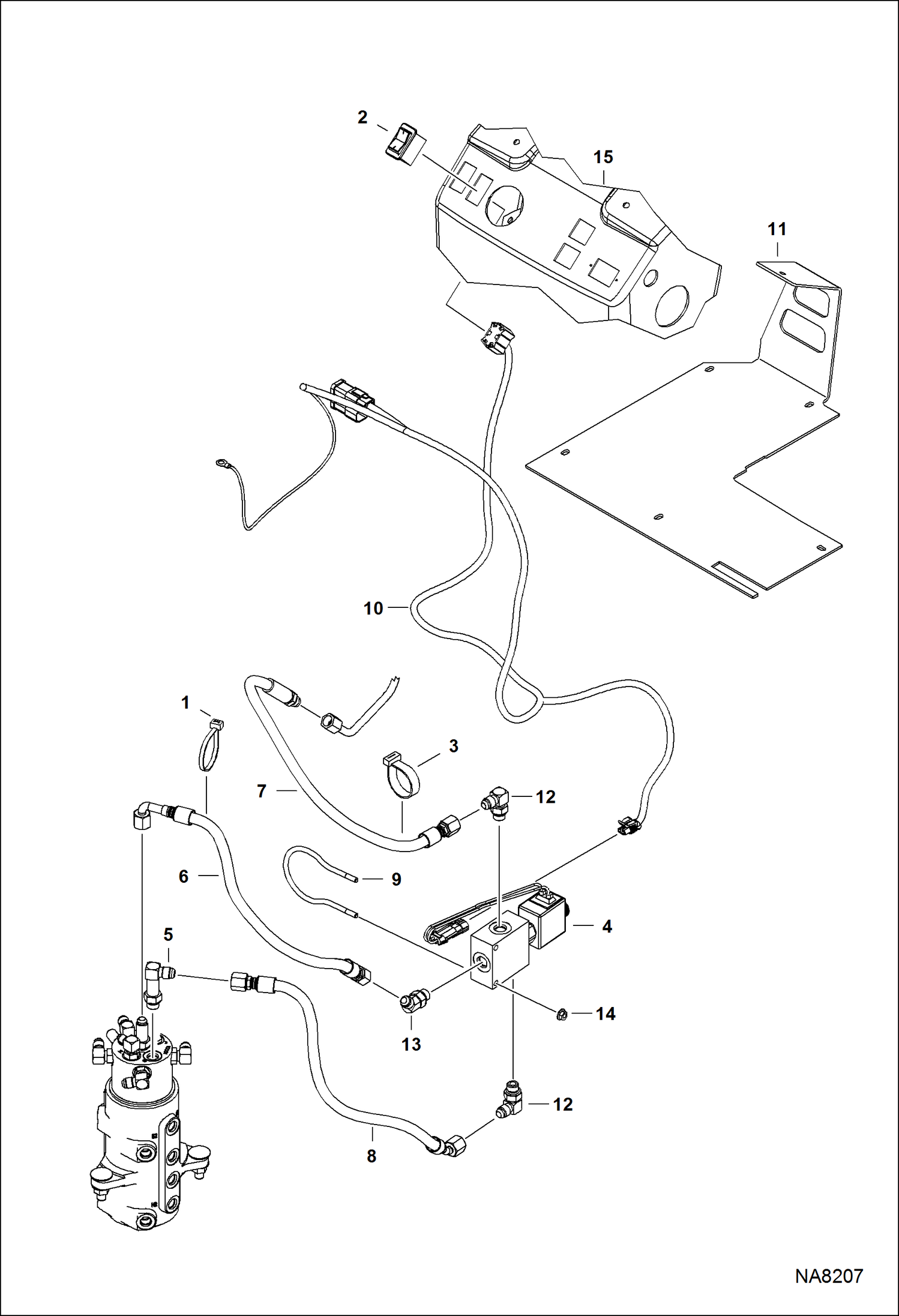

Запчасти Bobcat 418 HYDRAULIC CIRCUITRY (Track Width - Electric) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6674025

SWITCH

3

6678669

STRAP

4

6686508

BLOCK

5

6812815

FITTING

6

7229263

HOSE, HYD

7

7229264

HOSE, HYD

8

7229265

HOSE, HYD

9

7230474

BRACKET

10

7230593

HARNESS, EXPANDER TRACK

11

7230652

FLOORBOARD, LEFT

12

17KB0606

FITTING

12

79K6

O RING 10

13

18KB0606

FITTING, HYD ELBOW

13

79K6

O RING 10

14

51DM6

NUT

15

7151902

COVER PILOT FRONT See Illustration KEY SWITCH/ EM7167
