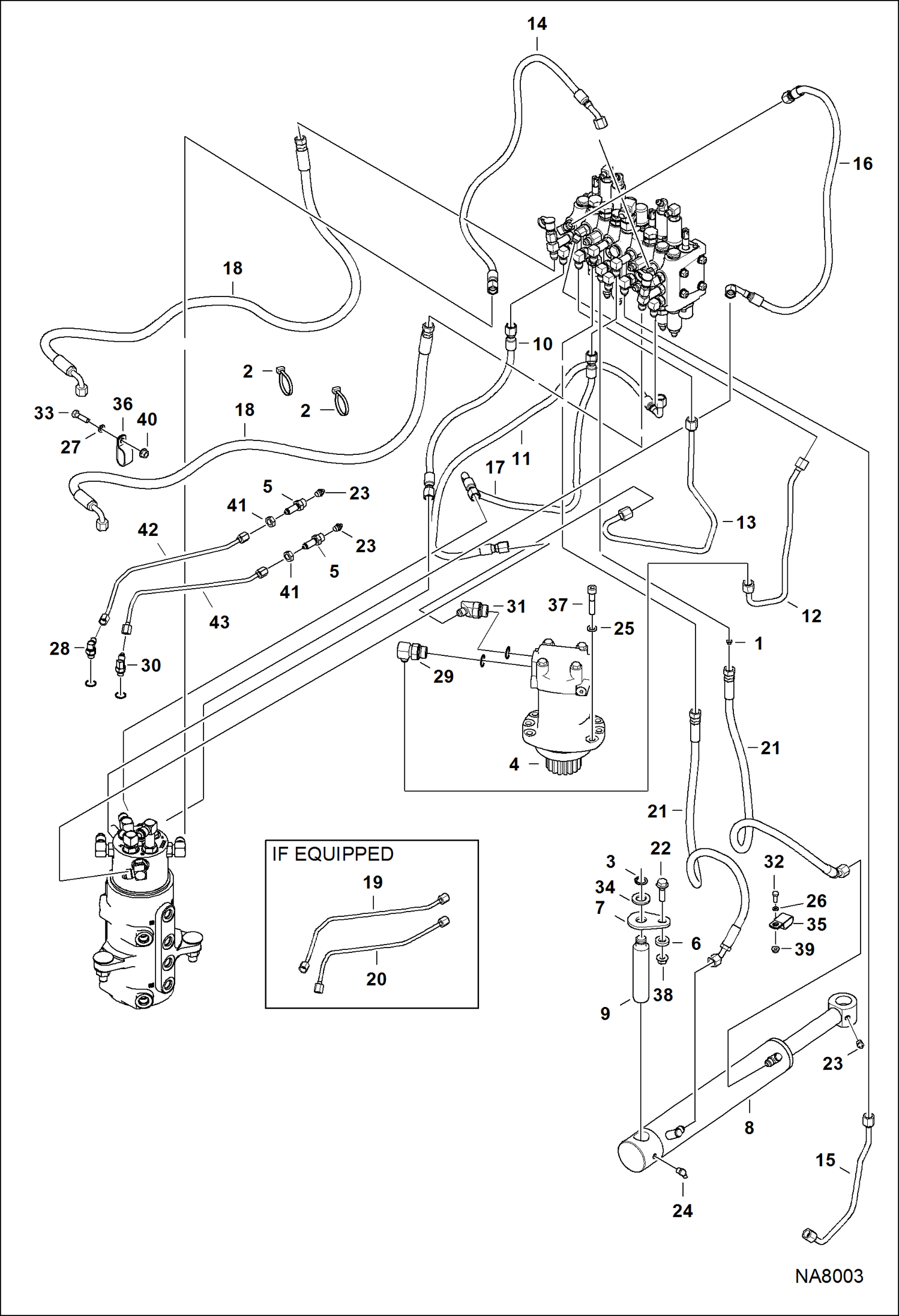

Запчасти Bobcat 418 HYDRAULIC CIRCUITRY (Upper) (S/N AB4711898 & Above) HYDRAULIC SYSTEM

1

6586430

ORIFICE if equipped

2

6624289

STRAP, TIE

3

6662745

SNAP RING

4

6693416

SLEW MOTOR

5

6807184

FITTING

6

6814436

WASHER

7

7112322

EAR

8

7222481

CYLINDER - Was 7133312 - A

9

7135395

PIN

10

7199403

HOSE, HYD

11

7199401

HOSE, HYD

12

7138934

TUBELINE

13

7138935

TUBELINE

14

7199406

HOSE, HYD

15

7138937

TUBELINE

16

7199408

HOSE, HYD

17

7199409

HOSE, HYD

18

7138943

HOSE ASSY

19

7138944

TUBELINE

20

7138945

TUBELINE

21

7143545

HOSE ASSY

22

7159236

BOLT

23

10H25

FITTING, GREASE 5

24

11H15

GREASE FITTING 45 degree

25

15EM100

WASHER

26

15EM60

WASHER

27

15EM80

WASHER

28

17KB0404

FTG HYD ELBOW 90

28

79K4

O RING 10

29

17KB0610

FITTING

29

79K10

O RING 10

30

18KB0404

FTG HYD ELBOW 45

30

79K4

O RING 10

31

18KB0610

FITTING

31

79K10

O RING 10

32

1CM616

SCREW

33

1CM830

BOLT

34

1EM180

WASHER

35

31H31

CLIP

36

31H38

CLAMP

37

3GM1050

SCREW

38

51DM10

NUT

39

51DM6

NUT

40

51DM8

NUT

41

86F3

LOCKNUT
