Запчасти Bobcat 418 SEAT (Model ET 97-1) MAIN FRAME

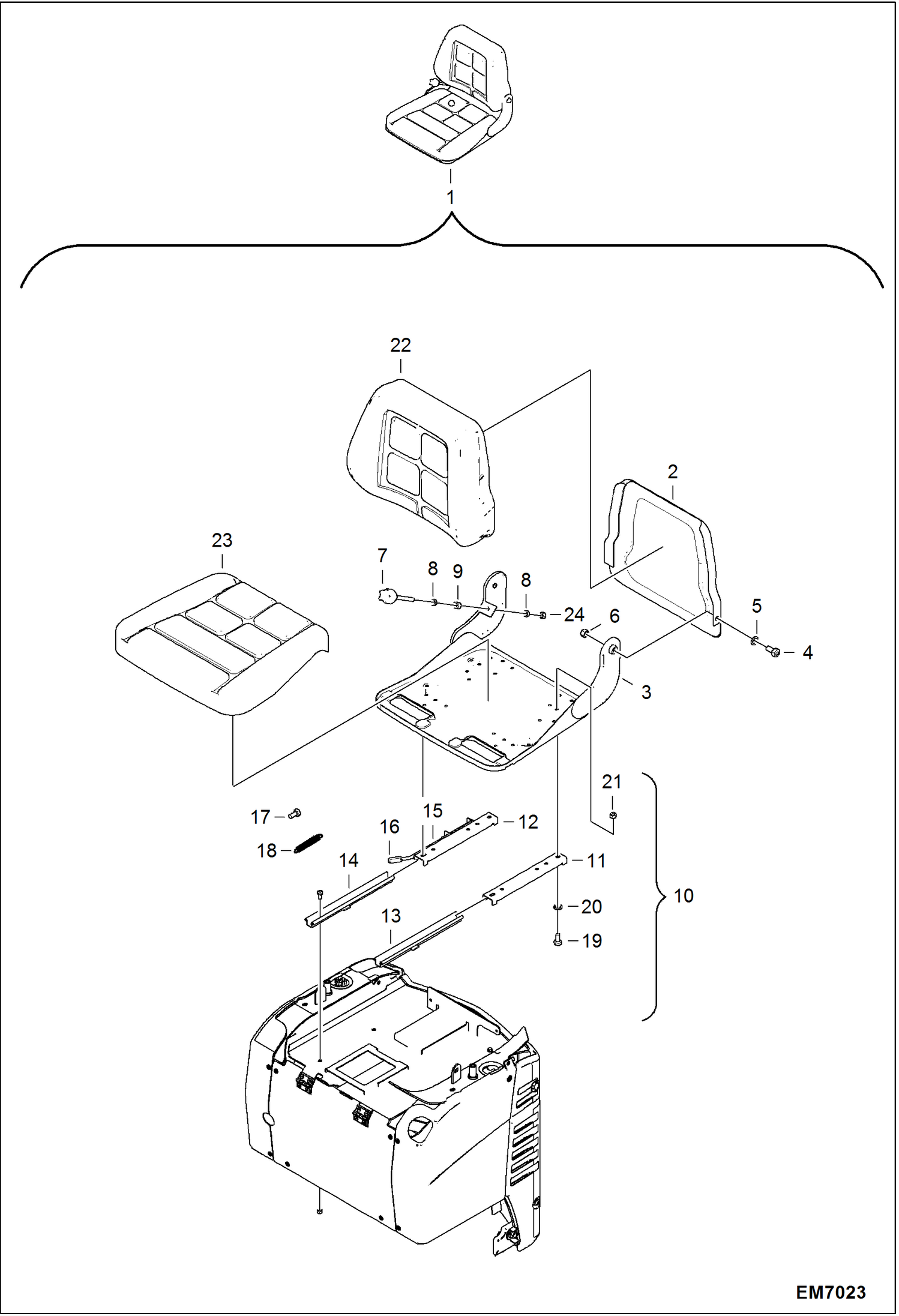

Схема запчастей Bobcat 418 - SEAT (Model ET 97-1) MAIN FRAME

Артикул

Название

Примечание

Количество

1

SEAT ASSY See Illustration SEAT/ EM7170 NLA - Ref. 2-24 - Model ET 97-1

2

7000784

PLATE

3

7000785

PLATE

4

7000786

BOLT

5

7000787

WASHER

6

7000788

NUT

7

7000789

HANDLE

8

7000790

WASHER

9

7000791

HANDLE KNOB

10

7000806

SLIDE MECHANISM Ref. 11-21

11

PLATE NLA - Order Ref. 10

12

PLATE NLA - Order Ref. 10

13

PLATE NLA - Order Ref. 10

14

PLATE NLA - Order Ref. 10

15

7000797

HANDLE SLIDE

16

7000798

HANDLE SLIDE

17

7000799

SCREW

18

7000800

SPRING

19

7000801

BOLT

20

7000802

WASHER

21

7000803

NUT

22

7000804

SEAT CUSHION

23

7000805

SEAT CUSHION

24

7000792

LOCK NUT

Выбрано товаров: 24
