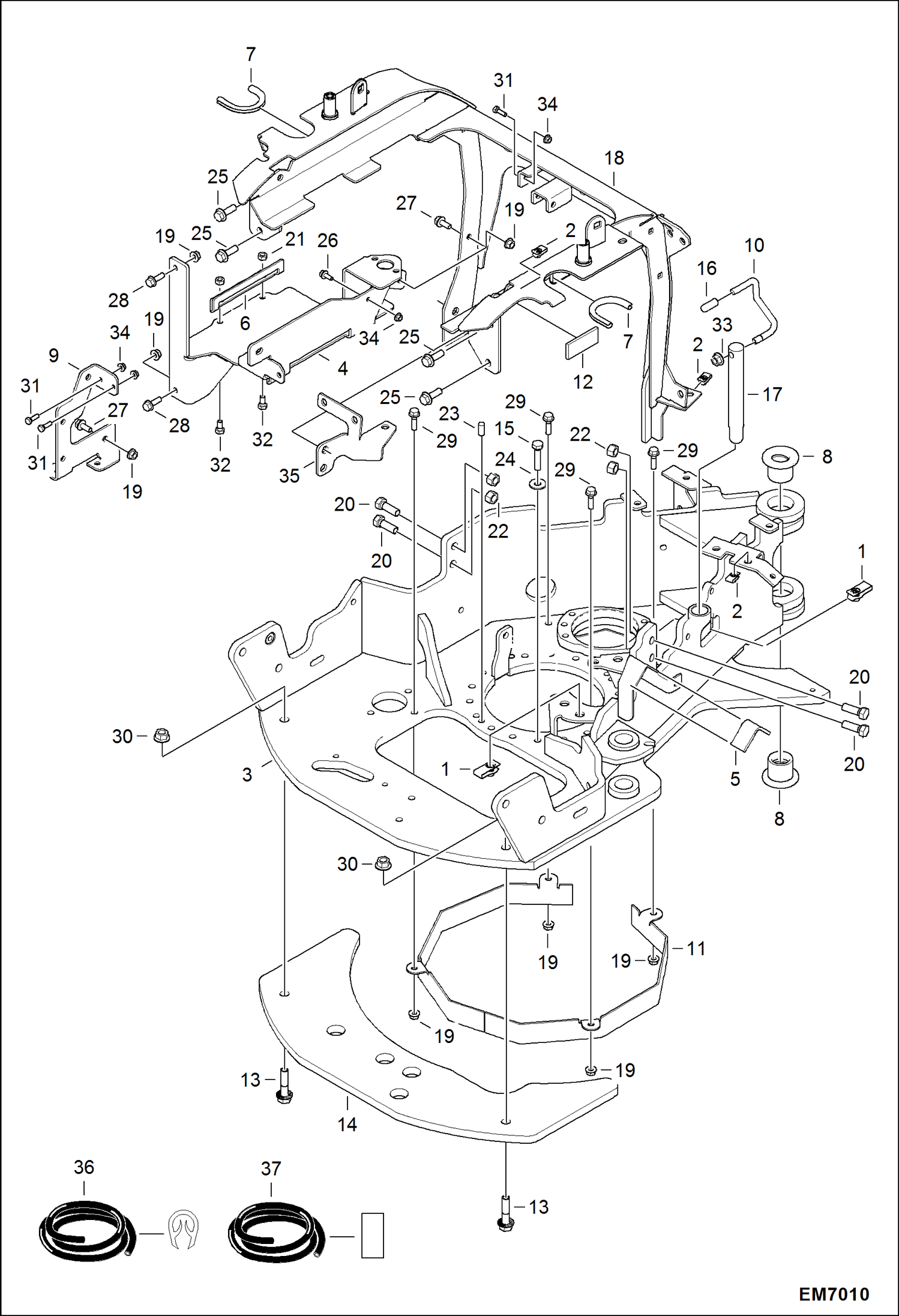

Запчасти Bobcat 418 MAIN FRAME (Frame & Brackets) MAIN FRAME

1

6675722

NUT

2

6676026

NUT

3

7182478

FRAME Was 7134660 - A

3

7199418

FRAME

4

7134669

BRACKET BATTERY W/A

5

SEAL NLA - 85 mm (3.35'') long - Order Ref. 36 Was 7134695 - D

6

7135397

CLAMP BATTERY

7

SEAL NLA - 139 mm (5.47'') long - Order Ref. 37 Was 7135402 - D

8

7136412

BUSHING

9

7136414

BRACKET TANK

10

7140609

HANDLE

11

7149332

COVER GEAR W/A

12

SEAL NLA - 70 mm (2.76'') long - Order Ref. 36 Was 7156533 - D

13

29CM1250

BOLT Was 7159162 - A

14

7160458

COUNTERWEIGHT

15

56CM1045

SCREW

16

7164359

CAP PLUG Was 6681652 - A

17

7166685

PIN

18

7134672

FRAME TOP W/A

18

7166807

FRAME TOP

19

51DM8

NUT

20

1CM1235

BOLT

21

1DM8

NUT

22

53DM12

NUT

23

23JM1024

PIN HARDENED PARALLE

24

27E6

WASHER 5

25

29CM1030

BOLT

26

29CM616

BOLT

27

29CM820

SCREW

28

29CM825

BOLT

29

29CM830

CAPSCREW

30

43DM12

NUT

31

1CM620

BOLT Was 4CM620 - A

32

1CM816

BOLT Was 4CM816 - A

33

51DM10

NUT

34

51DM6

NUT

35

7195570

BRACKET, FLOOR LH

36

7156507

SEAL BULK bulk - sold per foot

37

7153821

SEAL BULK bulk - sold per foot
