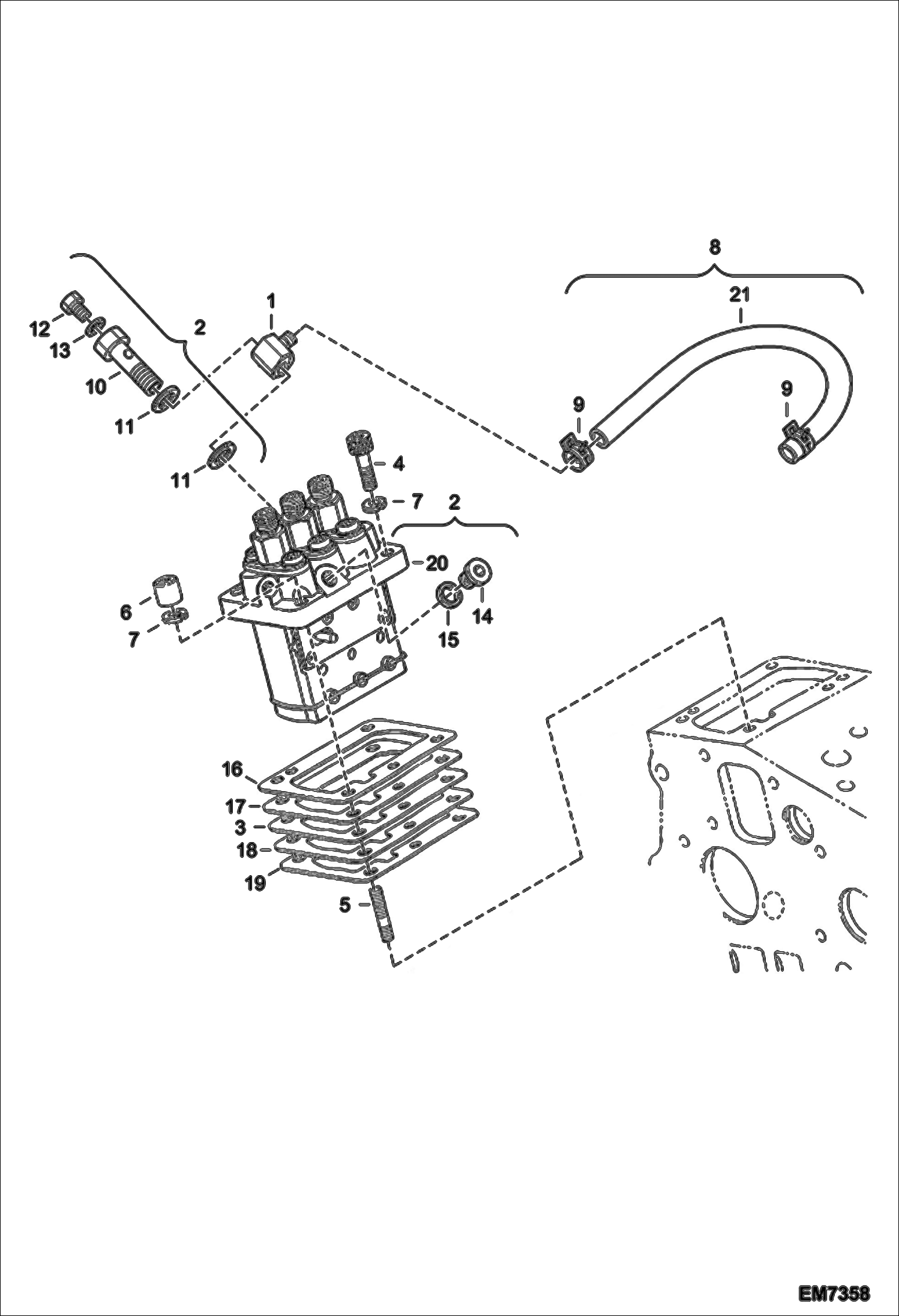

Запчасти Bobcat 418 INJECTION PUMP POWER UNIT

1

6670436

FITTING

2

6670432

PUMP, FUEL INJ W/Ref. 10-15 & 20

3

6670433

SHIM 0,200 mm

4

7000503

BOLT

5

6657458

STUD

6

6657461

NUT

7

6667419

WASHER

8

6698152

PIPE, FUEL W/Ref. 9 & 21

9

6680274

CLAMP

10

6670444

SCREW

11

6657466

GASKET

12

6657445

SCREW

13

6657467

GASKET

14

6672396

PLUG

15

6670446

WASHER

16

6698147

SHIM, INJECTION PUMP 0,350 mm

17

6698160

SHIM, INJECTION PUMP 0,175 mm

18

6672391

SHIM 0,250 mm

19

6670777

SHIM 0,300 mm

20

PUMP NLA - Order Ref. 2

21

PIPE, FUEL NLA - Order Ref. 8
