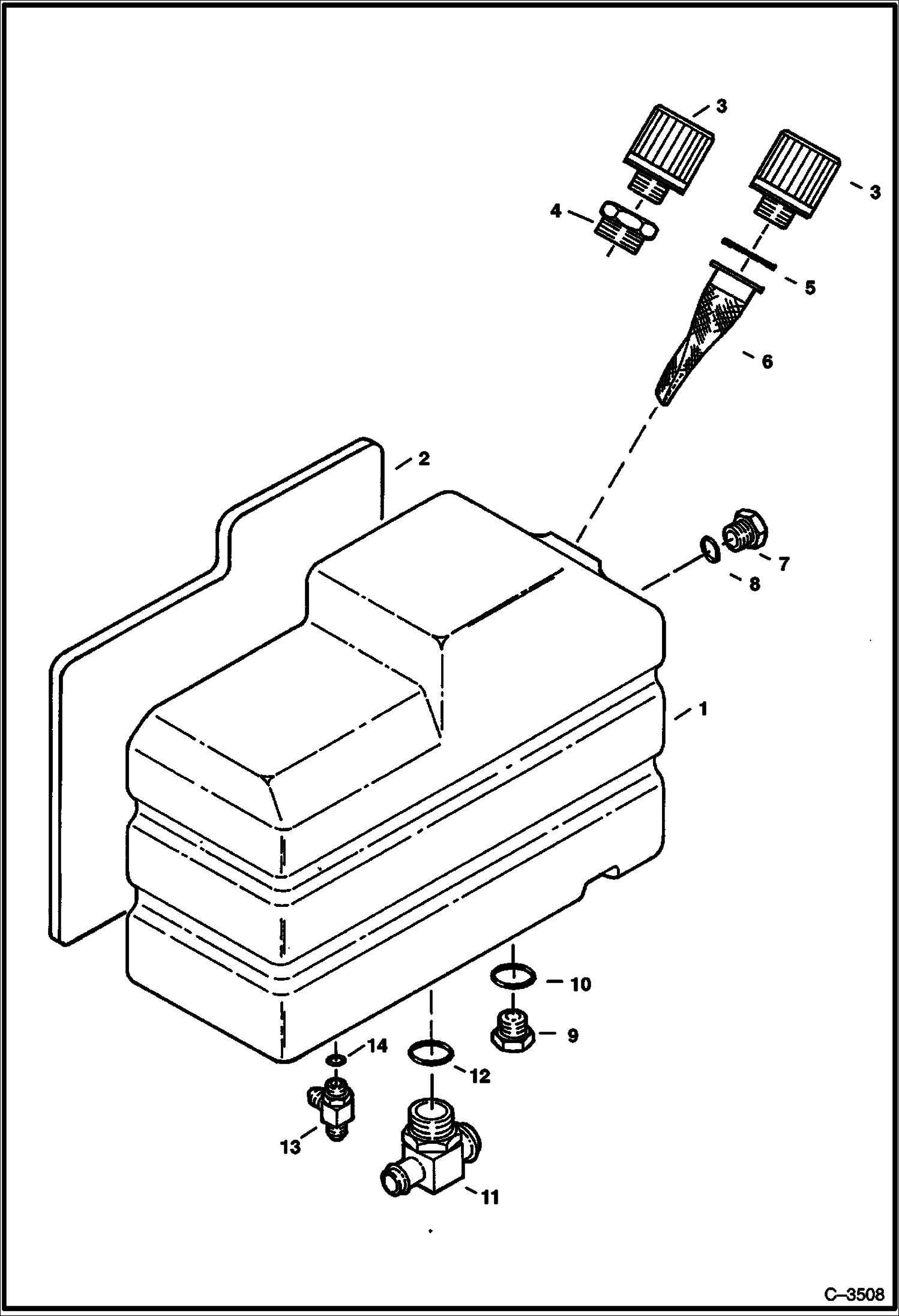

Запчасти Bobcat 341 HYDRAULIC TANK HYDRAULIC SYSTEM

1

6628728

TANK Hydraulic - Also Order Ref. 2 - Was 6628727 - A

2

6628699

INSULATION Foil Faced

3

CAP NLA - Fill Cap and Vent - Used with adapter 6803295 - Was 6669670 - A

3

6692836

CAP, HYDRAULIC TANK Fill Cap and Vent - Used W/O adapter 6803295 - Was 6674690 - B,D

4

6803295

ADAPTER W/Ref. 5

5

79K20

O RING 10

6

7134222

SCREEN fill - Was 6587168 - A

7

6665915

GAUGE Sight - Oil Level - Was 7000001 - A

8

79K12

O RING 10

9

24K8

PLUG W/Ref. 10 - Was 24KN00008B - A

10

99K12

O RING

11

6628907

TEE W/Ref. 12

12

79K32

O RING 10

13

6587446

TEE W/Ref. 14

14

79K10

O RING 10
