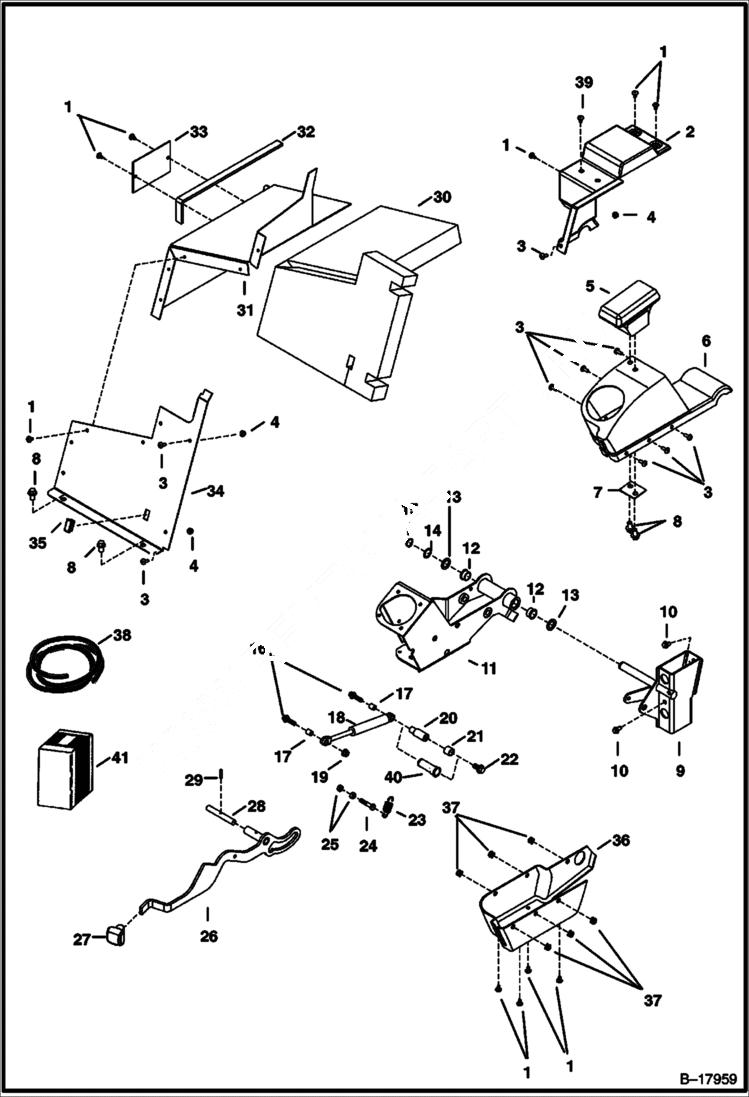

Запчасти Bobcat 341 L.H. CONTROL CONSOLE CONTROLS

1

6589675

SCREW

2

6803196

COVER W/Decals

3

6803202

SCREW

4

43DM6

NUT

5

6801672

ARM REST

6

6803194

COVER W/Decals

7

6802644

PLATE

8

26GM10020

BOLT

9

6802639

MOUNT L.H. Console

10

26GM8016

SCREW

11

CONSOLE See Illustration CONSOLE SPRING KIT/ MS1164 - NLA - L.H. - Gas Spring - Order 6809265 Console, 6808369 , 6808840 , 6809325 , 15EM-200, 13JM-20025, 6808167 , 29CM-835, 6808749 , 6EM00100B & 665

11

6809265

CONSOLE L.H.

12

6536801

BUSHING

13

6587481

WASHER

14

6536802

WASHER

15

6651530

SNAP RING

16

29CM830

CAPSCREW

17

6588293

BUSHING

18

6670863

SPRING

19

43DM8

NUT

20

SPACER NLA - Order 6809906 - Was 6803225 - A

21

BEARING NLA - Needle - Order 6809906 - Was 6671965 - A

22

29CM1020

BOLT

23

6563128

SPRING

24

1CM840

BOLT

25

4DM8

NUT

26

6808303

LEVER Console Release - Was 6802641 - A

27

6803199

HANDLE

28

6597977

PIN

29

14J1816

PIN ROLL

30

6803072

INSULATION

31

6802804

PANEL

32

FOAM NLA - 17'' (432mm) long - Order Ref. 38

33

6802666

COVER

34

6802649

COVER

35

6671055

PLUG Rectangular - for .625'' x 1.25'' (16mm x 32mm) hole

35

6673889

PLUG Rectangular for 1'' x 1.5''

36

6801127

COVER Lower Console

37

6671569

NUT Clip on

38

7001454

SEAL, BULK/FT bulk - sold per foot - Was 6803188 - A

39

6670761

CAP Use W/Canopy only

40

6809906

BEARING

41

6811226

KIT See Illustration CONSOLE SPRING KIT/ MS1164 Use to convert gas spring console 6802640 to mechanical spring
