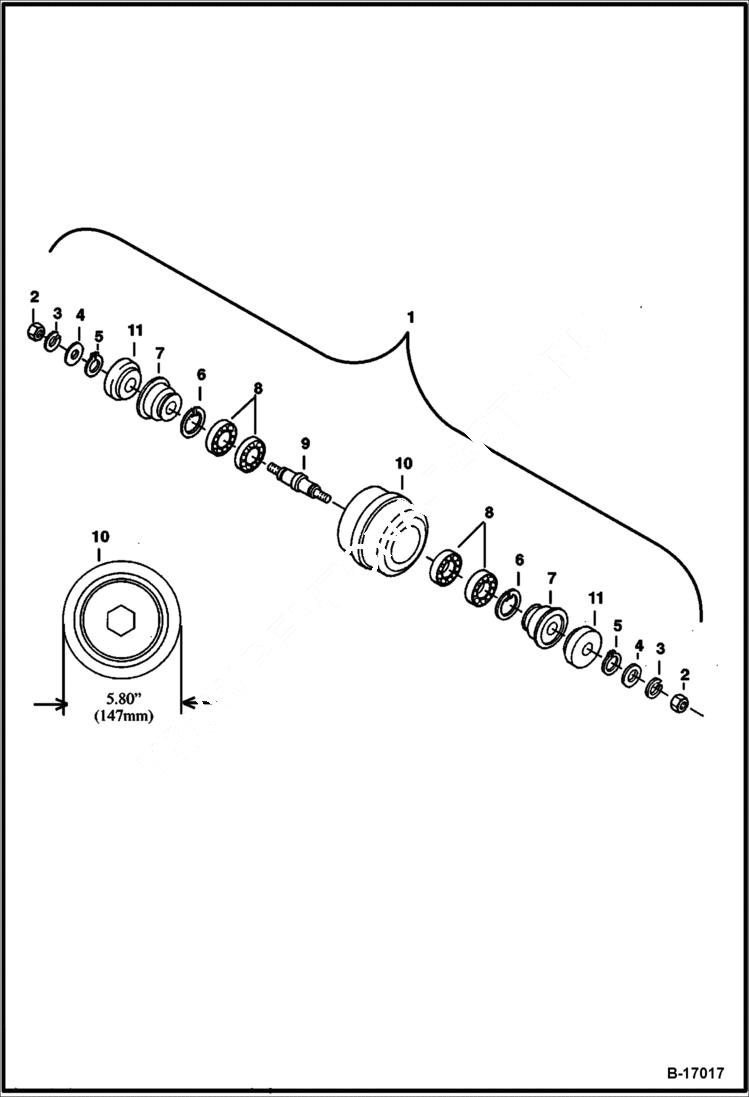

Запчасти Bobcat 341 TRACK ROLLER (Steel Tracks)(W/O Plug) UNDERCARRIAGE

1

TRACK ROLLER See Illustration TRACK ROLLER/ B17018 See Illustration TRACK TENSIONER/ PE3894 NLA - Assy. Ref. 2-11 - Was 6628635 - A

2

1DM24

NUT

3

6EM240

WASHER

4

1EM240

WASHER

5

5JM40

SNAPRING

6

7JM80

SNAP RING

7

6679882

SEAL, OIL Was 6667991 - A

8

6667990

BEARING

9

SHAFT NLA - Order 6805676 and 6805679 - Was 6627725 - A

9

SHAFT NLA - Order 6808135 - Was 6805676 - A

10

ROLLER NLA - Order 6805679 and 6805676 - Check outer diameter of roller before ordering parts

10

ROLLER NLA - Order 6808135 - Check outer diameter of roller before ordering parts - Was 6805679 - A

11

6627728

SPACER
