CONTROL VALVE (Slew Section)

Запчасти Bobcat 341 CONTROL VALVE (Slew Section) HYDRAULIC SYSTEM

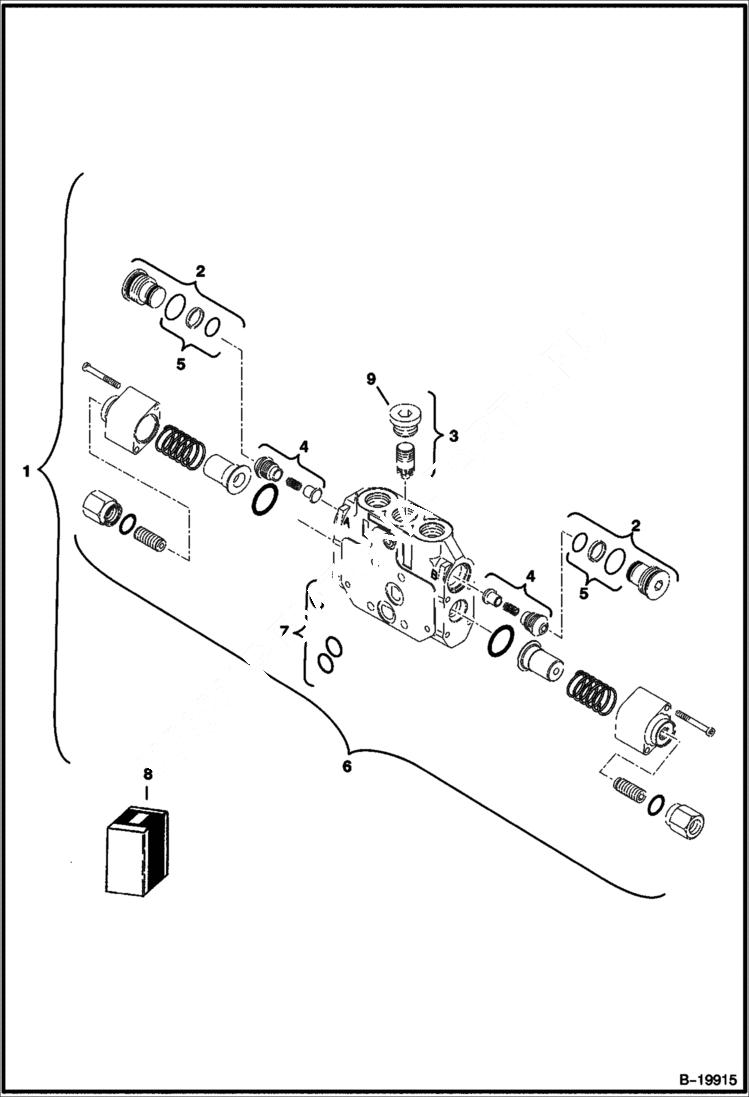

Схема запчастей Bobcat 341 - CONTROL VALVE (Slew Section) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6677460

VALVE W/ .750'' press. port

2

6677471

PLUG ASSY

3

6677692

KIT COMPENSATOR

4

6677689

CHECK VALVE check valve - Was 6686595 - A

5

6677468

SEAL KIT

6

6677700

ACTUATOR end cap

7

6677467

KIT, SEAL

8

6677470

SEAL KIT assy

9

6685248

PLUG pressure
