CONTROL VALVE (Bucket Section)

Запчасти Bobcat 341 CONTROL VALVE (Bucket Section) HYDRAULIC SYSTEM

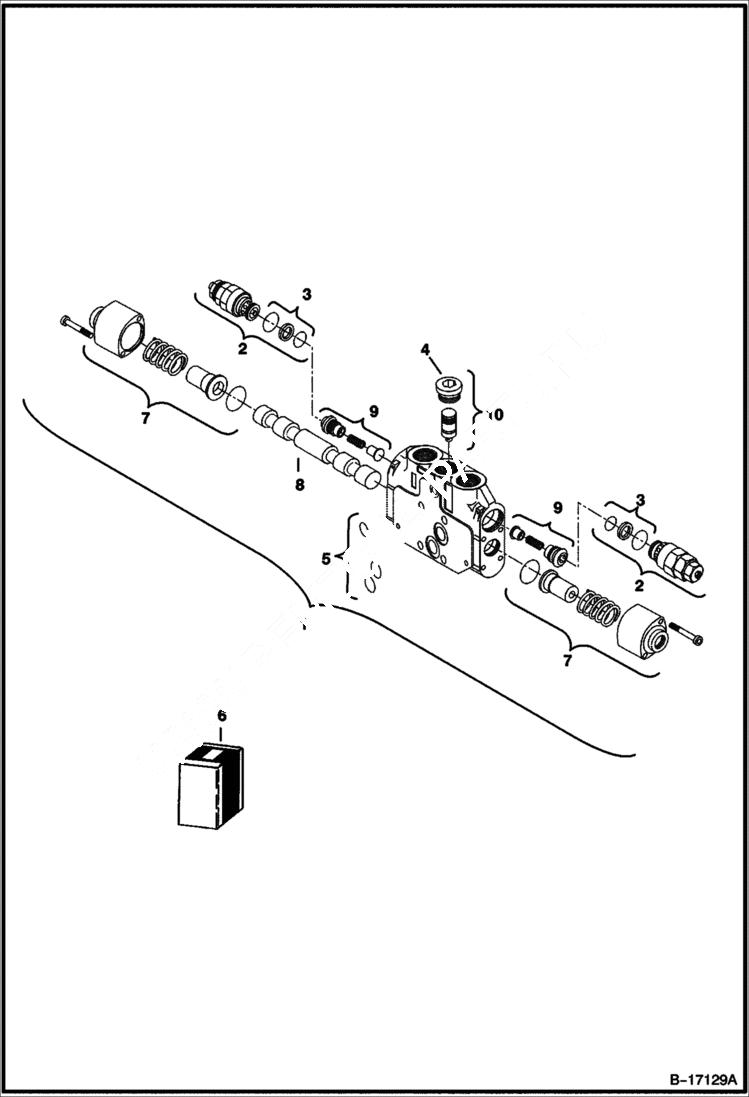

Схема запчастей Bobcat 341 - CONTROL VALVE (Bucket Section) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6677457

VALVE section - bucket - w/.750'' press port - Was 6686585 - D

2

6685249

VALVE,RELIEF assy

3

6677468

SEAL KIT

4

6685248

PLUG assy

5

6677467

KIT, SEAL

6

6677470

SEAL KIT assy

7

6677699

ACTUATOR assy

8

SPOOL NSS

9

6677689

CHECK VALVE check valve - Was 6686595 - A

10

6677690

KIT, COMPENSATOR pressure
