Запчасти Bobcat 341 HYDRAULIC CIRCUITRY (Work Tubelines & Cylinders) HYDRAULIC SYSTEM

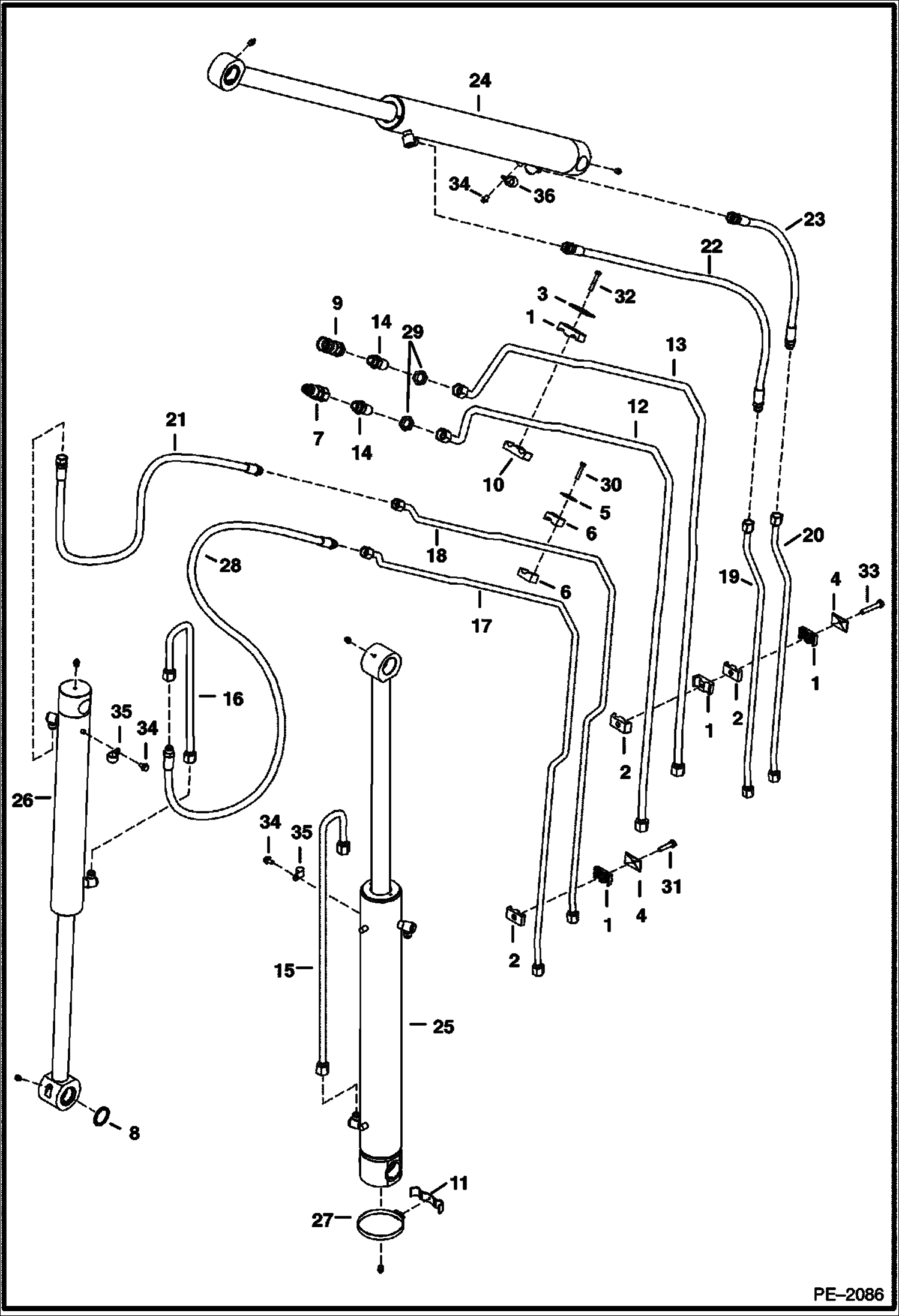

Схема запчастей Bobcat 341 - HYDRAULIC CIRCUITRY (Work Tubelines & Cylinders) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6577697

CLAMP

2

6592506

CLAMP

3

6592507

PLATE

4

6652521

PLATE

5

6665102

COVER

6

6666920

CLAMP, HALF

7

6674688

COUPLER, FF MALE straight

8

6669287

SEAL

9

6672960

COUPLER, FF FEMALE straight

10

6802955

PLATE

11

6806461

CLAMP

12

6810148

TUBELINE

13

6810149

TUBELINE

14

6812823

ADAPTER

14

79K12

O RING 10

15

6817036

TUBELINE

16

6817037

TUBELINE

17

6817048

TUBELINE

18

6817047

TUBELINE

19

6817049

TUBELINE

20

6817050

TUBELINE

21

6818097

HOSE For standard arm

21

6818331

HOSE For long arm

22

6818098

HOSE

23

6818099

HOSE

24

CYLINDER See Illustration ARM CYLINDER/ PE2089 arm

25

CYLINDER See Illustration BOOM CYLINDER/ PE2161 boom

26

CYLINDER See Illustration BUCKET CYLINDER/ PE3563 bucket - Also Order (2) of 6669287 dust seal & 6802371 wear bushing

27

42H72

CLAMP hose

28

6818335

HOSE For standard arm

28

6818336

HOSE For long arm

29

86F8

NUT 5

30

1CM640

SCREW

31

1CM1050

SCREW

32

1CM1060

BOLT

33

1CM1080

BOLT

34

29CM812

BOLT

35

30H37

CLAMP

36

30H49

CLAMP

Выбрано товаров: 39
