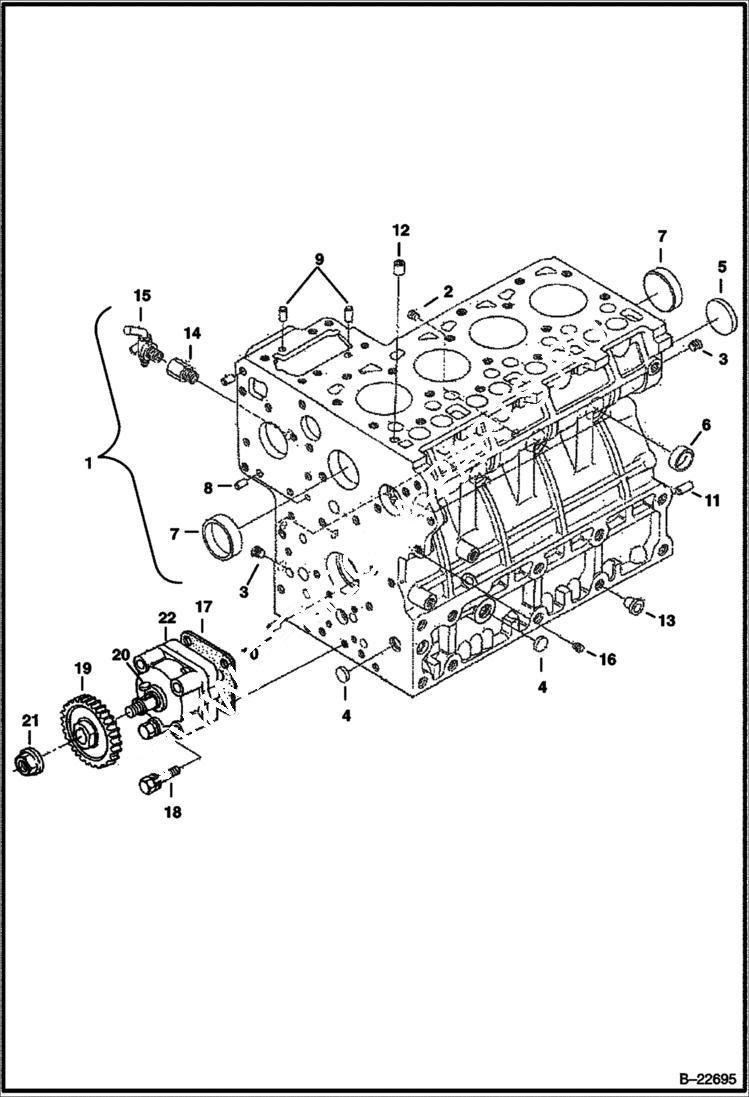

Запчасти Bobcat 341 CRANKCASE POWER UNIT

1

6685579

CRANKCASE assy - W/Ref. 2-13

2

6652574

PLUG Was 6598169 - A

3

6598170

PLUG

4

6667418

PLUG expansion

5

6657663

PLUG expansion

6

3974389

CAP, SEALING Was 6680638 - A

7

3974390

PLUG sealing - Was 6680639 - A

8

3974393

PIN straight

9

3974394

PIN straight

10

3974395

PIN straight

11

3974868

PIN straight

12

3974037

PIN straight Was 6680643 - A

13

6598187

PLUG

14

6678946

ADAPTER

15

6672190

DRAINCOCK Was 6630177 - A

16

6685477

PLUG

17

6666782

GASKET oil pump - Was 6684786 - A

18

6670770

BOLT

19

3975441

GEAR, CAMSHAFT

20

6969805

KEY,FEATHER Was 15JM00410B - A

21

6653888

NUT flange - Was 6685088 - A

22

6692380

OIL PUMP assy - oil - Was 6682498 - D
