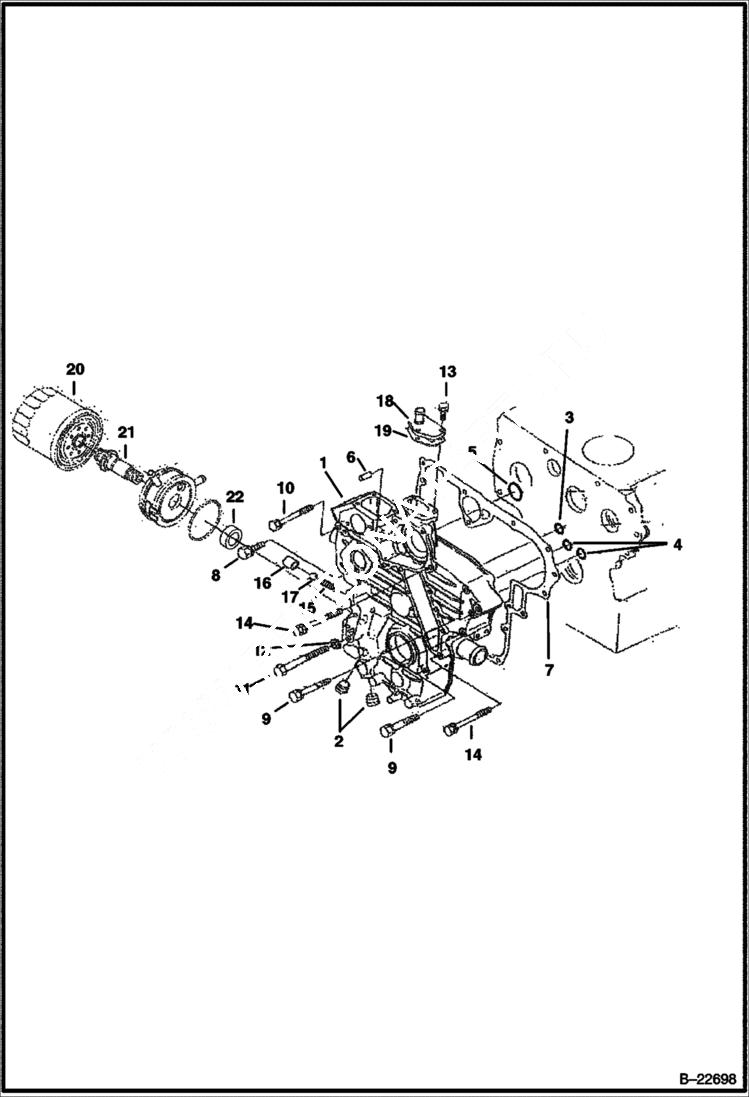

Запчасти Bobcat 341 GEAR CASE POWER UNIT

1

HOUSING NLA - W/Ref. 2 - Order 7012337 gearcase, 7010599 gasket and DO NOT USE Ref. 3-5 - Was 6685523 - A

1

GEAR CASE NLA - W/Ref. 2 - Order 7012337 gearcase, 7010599 gasket and DO NOT USE Ref. 3-5 - Was 6688645 - A

1

7012337

HOUSING, GEAR W/Ref. 2

2

6672360

PLUG

3

6670769

O-RING

4

6680661

O-RING

5

6684765

O-RING

6

3974395

PIN straight

7

6684770

GASKET gearcase

7

7010599

GASKET, GEARCASE

8

1CM835

BOLT

9

6680562

BOLT

10

6653807

BOLT

11

1CM820

BOLT

12

6667412

WASHER spring

13

1CM620

BOLT Was 4CM620 - A

14

6653807

BOLT

15

6652652

SPRING Was 3974892B - A

16

3974893

SEAT

17

10J13

BALL

18

3974894

FLANGE water return

19

6666803

GASKET water return flange - Was 6684774 - A

20

6675517

FILTER, OIL ENG 12 Was 6684783 - A

21

CONNECTOR NLA - Order 7020646 connector and 7020866 collar - Was 6675681 - A

21

7020646

CONNECTOR

22

6685637

COLLAR Was 6684887 - A

22

7020866

COLLAR
