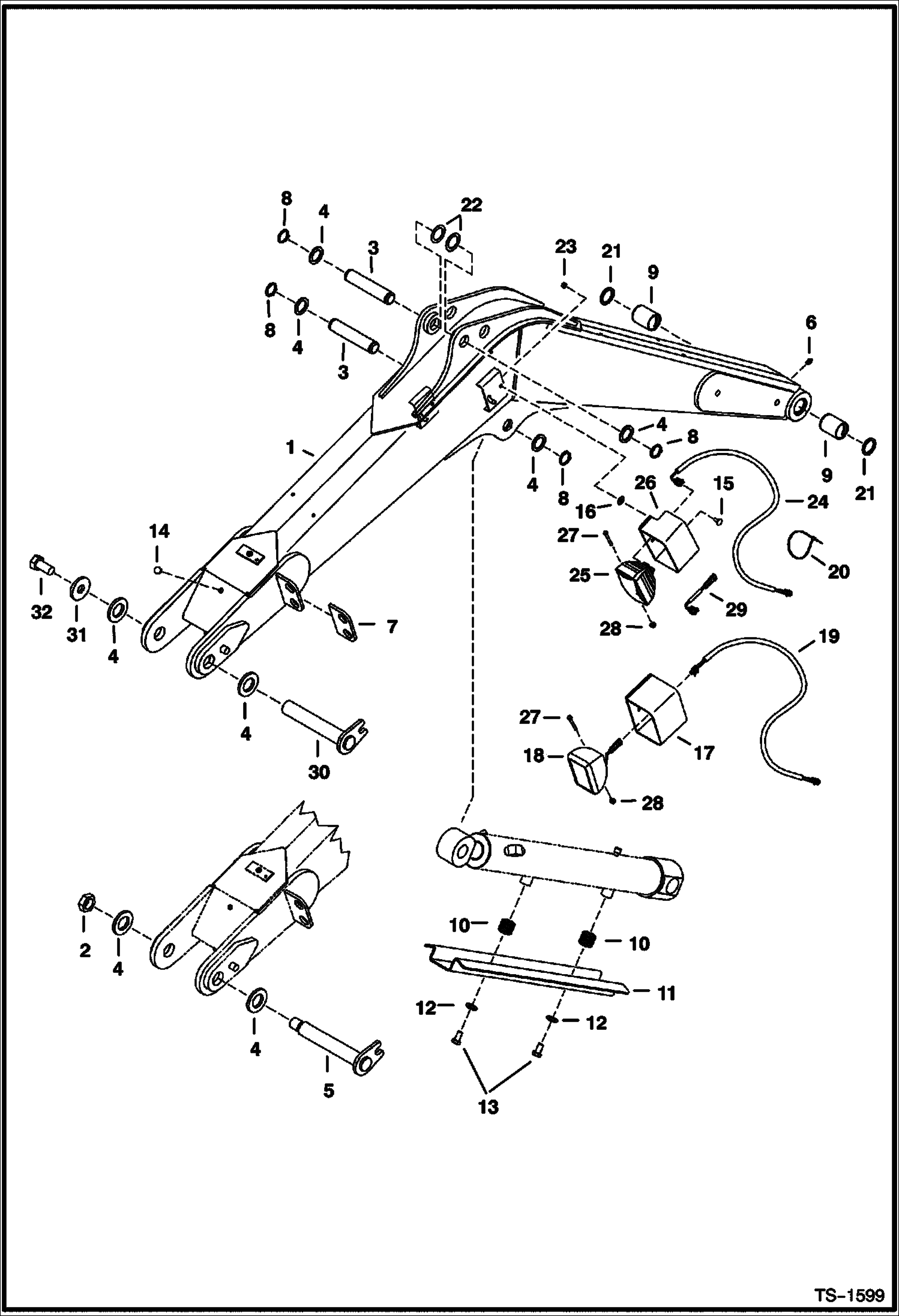

Запчасти Bobcat 341 BOOM WORK EQUIPMENT

1

7125514

BOOM, DIPPER ARM Also Order Ref 9 - Was 6810140 - A

2

39DM42

NUT

3

6628009

PIN

4

6538893

WASHER

5

6628010

PIN Mounting

6

10H25

FITTING, GREASE 5

7

6597688

PLATE weld on

8

6660274

SNAP RING

9

6597689

BUSHING, PRESS FIT

10

6804778

SPRING

11

6804775

CHANNEL cylinder guard

12

25E26

WASHER

13

17C1012

BOLT

14

6597572

BUMPER

15

28CM820

BOLT Was 21CM820 - B

16

6675859

RETAINER

17

HOUSING NLA - Order Ref. 25 - 29 - Was 6808258 - A

18

6675938

LIGHT W/pigtail - Use W/Ref. 17

18

6667934

BULB Was 6677934 - D

18

6676724

BEZEL Was 6676203 - A

18

6676204

NUT

19

HARNESS NLA - work light - 153'' (3886mm) long - Order Ref. 24- Was 6808415 - A

20

6610510

TIE Was 1715312B - A

21

6810743

SHIM as required

22

6810703

SPACER

23

51DM8

NUT

24

7135896

HARNESS work light - 156'' (3962 mm) long

25

6691410

LIGHT W/O pigtail - Use W/Ref. 26

25

6692400

BULB

26

7133077

HOUSING, W/A W/notch in side

27

17C532

BOLT 5 for light W/pigtail

27

1CM655

SCREW for light W/O pigtail

28

61D5

NUT for light W/pigtail

28

51DM6

NUT for light W/O pigtail

29

7135981

HARNESS extension - 6'' (152mm) long

30

7127041

PIN W/A

31

6813933

WASHER

32

53CM2450

SCREW
