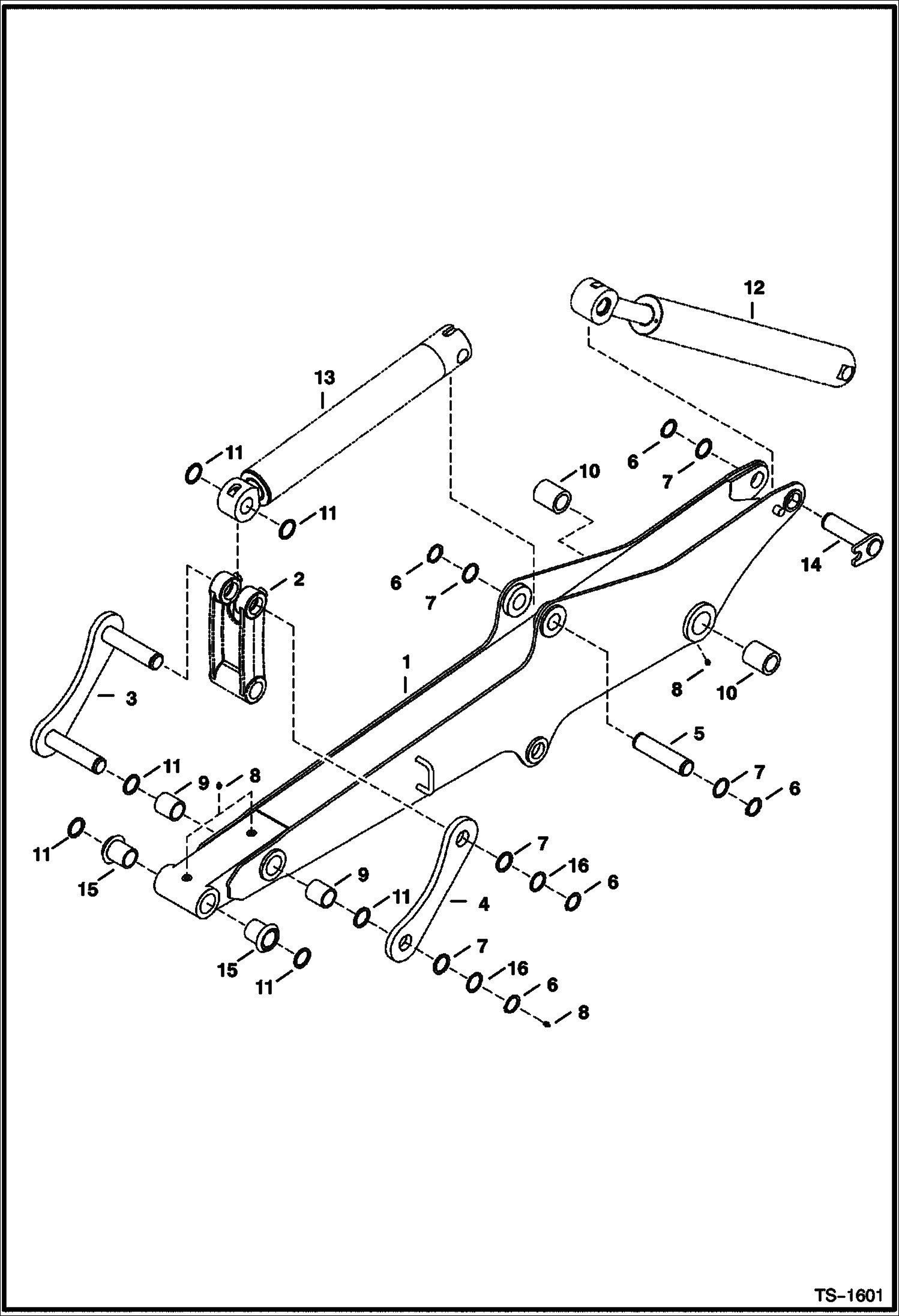

Запчасти Bobcat 341 ARM WORK EQUIPMENT

1

6804399

ARM standard - also order Refs. also order Ref. 9 (2), 10 (2), 11 (4) & 15 (2)

1

6804414

ARM, W/A LONG long arm - also order Ref. 9 (2), 10 (2), 11 (4) & 15 (2) - Was 6805995

2

6805281

LINK, BUCKET MACHINED ASSY See Illustration BUCKET LINK & X-CHANGE/ PE3255

3

LINK NLA - curved - order 6817170 & 6817169 - Was 6804830 - A

3

6817170

LINK straight

4

LINK NLA - curved - order 6817170 & 6817169 - Was 6597720 - A

4

7113546

LINK straight - Was 6817169 - A

5

6628002

PIN

6

6668787

RING

7

6628547

WASHER

8

10H25

FITTING, GREASE 5

9

6628341

BUSHING, PRESS FIT

10

6597689

BUSHING, PRESS FIT

11

6669287

SEAL Dust

12

CYLINDER - arm

13

CYLINDER - bucket

14

6805204

PIN

15

6805601

BUSHING

16

6810702

SPACER
