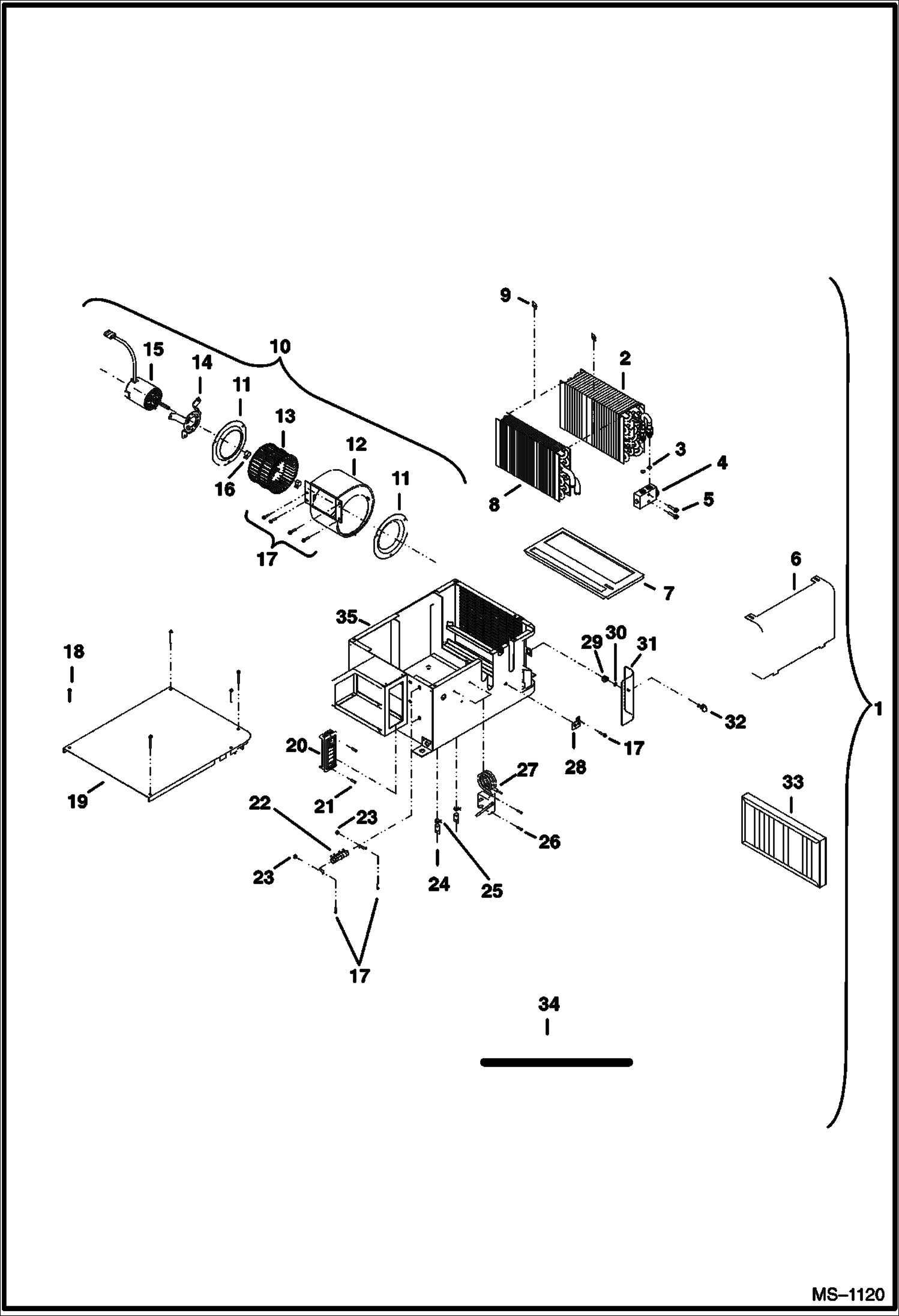

Запчасти Bobcat 341 HEATER/AIR CONDITIONING BOX (S/N 233311228-12220 and 233211245-12364) ACCESSORIES & OPTIONS

1

6677478

HVAC BOX Ref. 2-35

2

6677565

EVAPORATOR air conditioner

3

7009977

O-RING #8 - Was 6675538 - A

4

6675534

BLOCK, VALVE A/C Was 6676470 - A

5

1CM630

BOLT

6

6677540

COVER

7

6678033

SUPPORT

8

6677543

COIL heater

9

6676539

CLIP

10

6677544

BLOWER Ref. 11-16

11

6677546

VENTURI

12

6677545

HOUSING

13

6677547

WHEEL blower

14

6677548

BRACKET

15

6677549

MOTOR

16

6676618

CLIP

17

87G510

SCREW

18

26GM5010

SCREW

19

6678031

COVER

20

6676713

LOUVER

21

87G606

SCREW

22

6677552

RESISTOR

23

42DM5

NUT

24

6675511

DRAIN VALVE

25

6677510

CLAMP

26

6677119

SCREW

27

6676708

THERMOSTAT

28

6677553

BRACKET

29

6677555

RECEPTACLE

30

6677557

RETAINER

31

6678032

PLATE

32

6678036

SCREW

33

6681568

FILTER air - Was 6678034 - A

34

6677551

HARNESS

35

6678030

HOUSING
