Запчасти Bobcat 341 DECALS ACCESSORIES & OPTIONS

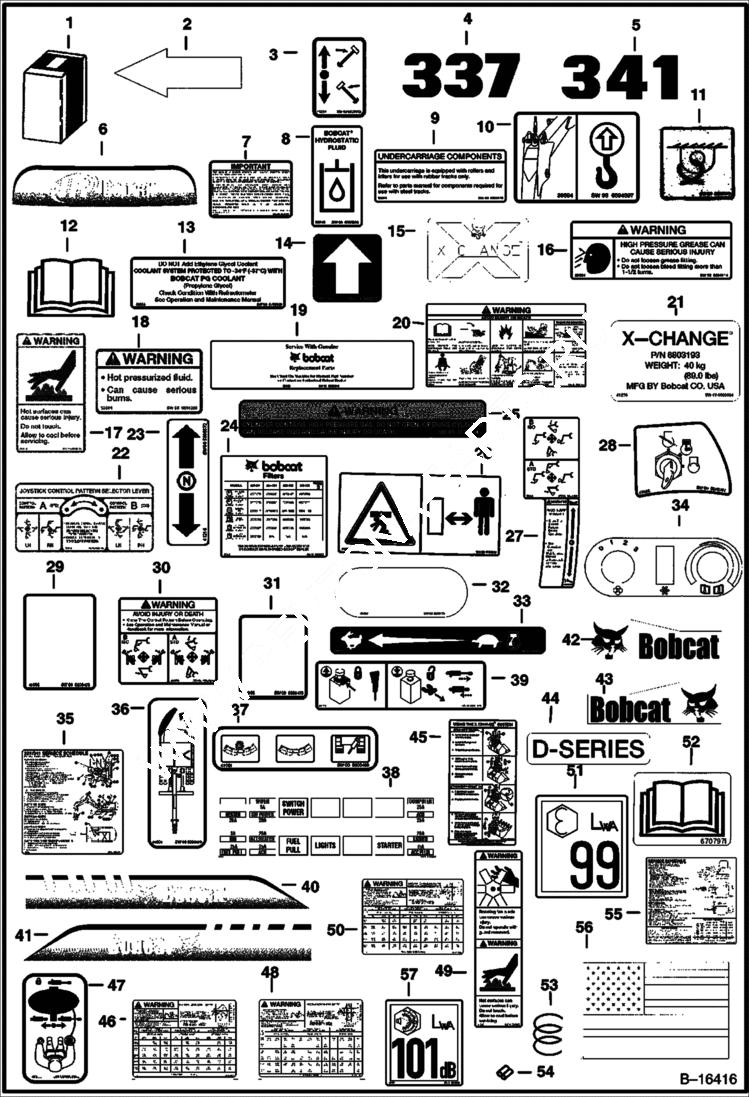

Схема запчастей Bobcat 341 - DECALS ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

DECAL KIT order componants

2

6533899

DECAL arrow

3

6808870

DECAL swing offset

4

6806166

DECAL model 337

5

6806167

DECAL model 341

6

6812890

DECAL logo rear - Was 6806170 - A

7

6560573

DECAL spark arrestor

8

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

9

6589129

DECAL track-rubber

10

6594897

DECAL boom lift

11

6727595

DECAL Was 6595014 - B

12

6707971

DECAL operators Manual

13

6708929

DECAL, COOLANT propylene glycol

14

6809263

DECAL line-up arrow

15

6803760

DECAL X-Change

16

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

17

6804232

DECAL warning

18

6804233

DECAL warning

19

6565200

DECAL, FILTER

20

6807776

DECAL warning

21

6803604

DECAL x-change

22

6815957

DECAL ISO/STD - Was 6804276 - A

23

6808872

DECAL travel

24

DECAL NLA - filters - order Ref. 55 - Was 6808182 - A

25

6577754

DECAL, WARNING 5 gas spring

26

6713507

DECAL stay clear

27

6815945

DECAL control R. H. - Was 6808260 - A

28

6808261

DECAL ignition switch

29

7120582

DECAL For ESA Only - R.H. cover - Was 6808473 - A

30

6808474

DECAL LH control

31

7120581

DECAL For ESA Only - control cover L.H. - Was 6808475 - A

32

6808478

DECAL cover

33

6808481

DECAL throttle

34

6808433

DECAL heater

35

DECAL NLA - service schedule - order Ref. 55 - Was 6808476 - A

36

6808479

DECAL hood release

37

6808480

DECAL remote grease

38

6808602

DECAL fuse/relay

38

6815625

DECAL fuse/relay

39

6808879

DECAL valve

40

6806177

DECAL logo R. H.

41

6806178

DECAL logo L. H.

42

6808545

DECAL logo

43

6808546

DECAL logo

44

6808641

DECAL D-series

45

6817816

DECAL x-change - Was 6809264 - A

46

6817057

DECAL lift 337D - Was 6808477 - A

47

6815945

DECAL auxiliary function - Was 6808949 - A

48

6817058

DECAL lift 341D - Was 6808494 - A

49

6809832

DECAL warning - hot/fan

50

6817163

DECAL lift - Was 6808630 - A

51

6810005

DECAL noise

52

6901071

HANDBOOK operators

53

6558309

WIRE ROPE bulk use 48'' - sold per foot

54

6558310

SLEEVE

55

7104075

DECAL service schedule - filters - Was 6815092 - A

56

6732026

DECAL U.S. Flag

57

7110929

DECAL noise - 100 db - Was 6812569 - B

Выбрано товаров: 58
