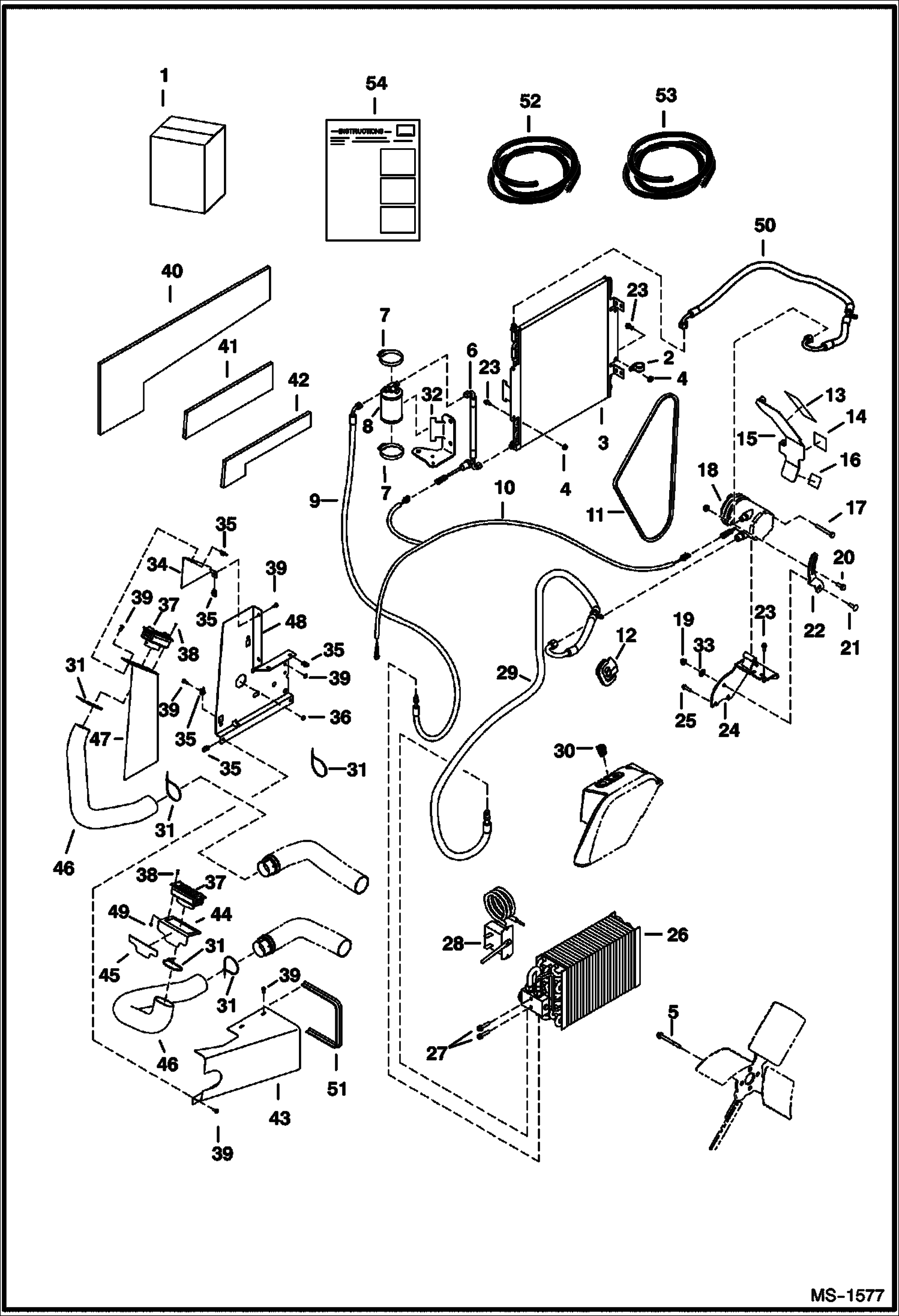

Запчасти Bobcat 341 AIR CONDITIONING UPGRADE KIT ACCESSORIES & OPTIONS

1

6808448

KIT

2

30H57

CLAMP

3

6682037

CONDENSER Was 6676464 - A

4

51DM8

NUT

5

60CM660

SCREW

6

6681655

HOSE condenser to receiver/dryer - Was 6676469 - A

6

7009976

O-RING #6 - Was 6675824 - A

7

42H44

HOSECLAM5

8

6674235

RECEIVER DRIER

9

6681654

HOSE receiver/dryer to evaporator - Was 6676468 - A

9

7009976

O-RING #6 - Was 6675824 - A

10

6808548

HARNESS

11

6809790

BELT

11

6808527

BELT w/non-adjustable idler

12

6806547

BRACKET compressor - 337D/341D

12

6808436

GROMMET

13

6804233

DECAL

14

6809832

DECAL warning - hot/fan

15

6816441

GUARD

16

6708929

DECAL, COOLANT propylene glycol

17

5CM1080

SCREW

18

COMPRESSOR NLA - order 6733655 compressor - Was 6675667 - A

18

6733655

COMPRESSOR, A/C W/Ref. 34

18

6679145

CLUTCH

19

51DM10

NUT

20

5CM1025

BOLT

21

28CM1030

BOLT

22

6807434

TENSIONER

23

29CM820

SCREW

24

6810342

BRACKET compressor - 331D-331ED-334 only

24

6808988

BRACKET compressor - 337D/341D

25

29CM835

BOLT

26

6683283

EVAPORATOR See Illustration HEATER/AIR CONDITIONING BOX/ MS1120 - Was 6676465 - A

26

6675534

BLOCK, VALVE A/C

27

1CM630

BOLT

28

6676708

THERMOSTAT

29

6676467

HOSE evaporator to compressor

29

7009978

O-RING #10 - Was 6675825 - A

30

7169112

SWITCH, ROCKER A/C Was 6719176 - A

31

6624289

STRAP, TIE

32

7104428

BRACKET receiver dryer

33

6674264

RETAINER NUT

34

6813281

COVER

35

6676026

NUT

36

6678729

SEAL hole

37

6680953

LOUVER assy

38

6680969

SCREW

39

6803202

SCREW

40

6811374

INSULATION

41

6811437

INSULATION

42

6813293

INSULATION

43

6812277

COVER hose

44

6812278

BRACKET

45

6812280

ADHESIVE

46

6813207

HOSE NLA - 31'' (790 mm) long - Order Ref. 52 - Was 6813207

47

6813242

COVER hose

48

6813250

BRACKET

49

6813440

COVER

50

6676466

HOSE compressor to condenser

50

7009977

O-RING #8 - Was 6675538 - A

51

SEAL NLA - Use Ref. 51

52

6675732

SEAL bulk - sold per foot

53

7021080

HOSE, HEATER BULK bulk - sold per foot

54

6901205

INSTRUCTION
