Запчасти Bobcat 341 FUEL SYSTEM POWER UNIT

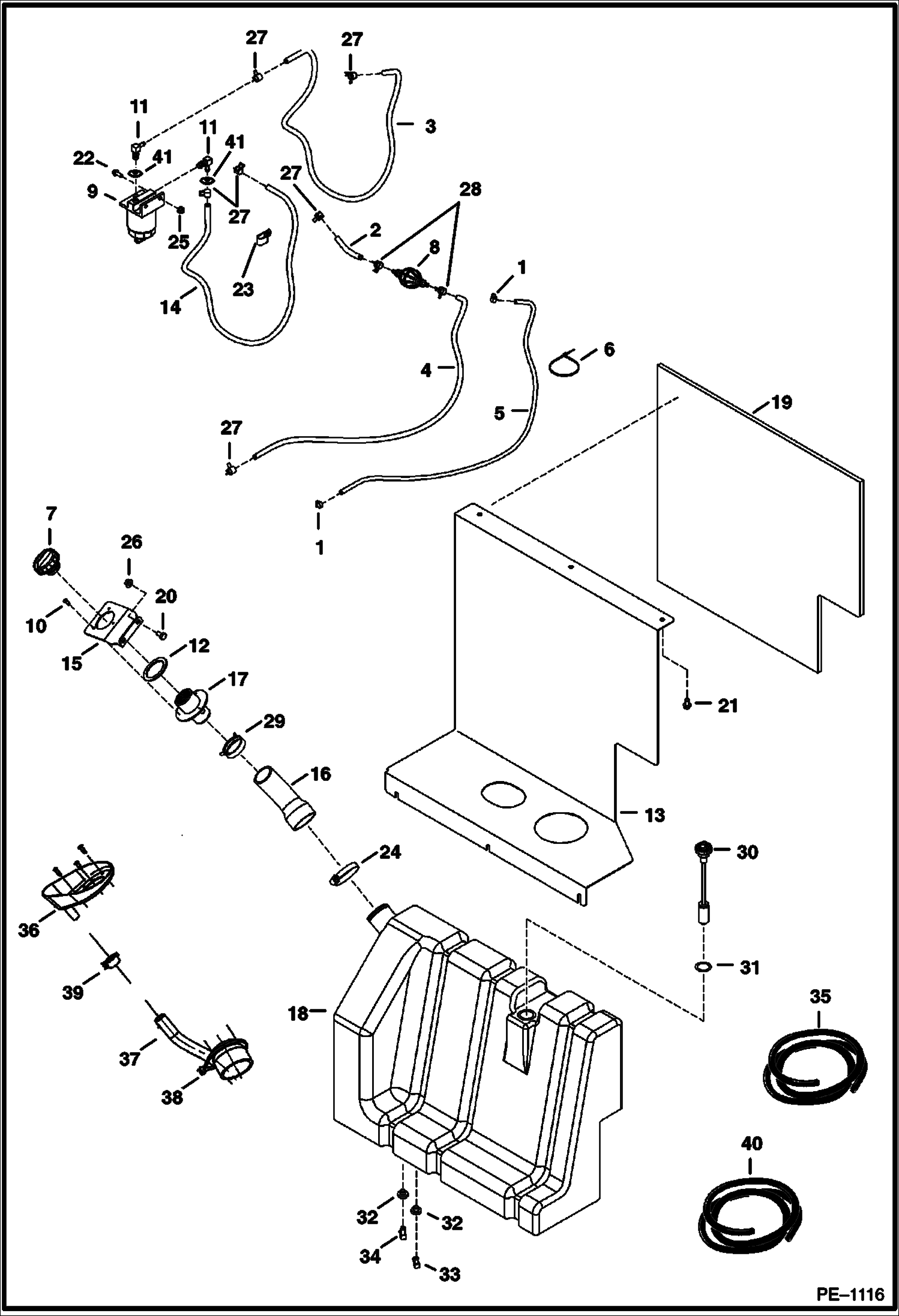

Схема запчастей Bobcat 341 - FUEL SYSTEM POWER UNIT

Артикул

Название

Примечание

Количество

1

42HS04

CLAMP, HOSE Was 6515575 - A

2

HOSE NLA - use 4.5'' of Ref. 35

3

HOSE NLA - use 49'' of Ref. 35

4

HOSE NLA - use 44'' of Ref. 35

5

HOSE NLA - use 47'' of Ref. 35

6

6610510

TIE

7

6661114

CAP. DIESEL

8

6667170

PUMP 193 mm (7.6'') long

9

6667353

FILTER ASSY

9

6667352

FILTER, FUEL W/SEPARATOR 12

9

6658180

PLUG, BLEED

10

6706517

SCREW

11

6715183

ELBOW W/Ref. 41 - check boss face to determine correct replacement o-ring

12

6802558

GASKET

13

6806857

BRACKET

14

HOSE NLA - use 48.5'' of Ref. 35

15

6807615

BRACKET

16

6807616

HOSE

17

6807722

INLET

18

6807749

TANK

19

6807750

BRACKET foam

20

1CM1016

SCREW

21

26GM10020

BOLT

22

29CM820

SCREW

23

31H31

CLIP

24

42H40

HOSECLAM5

25

43DM8

NUT

26

43DM10

NUT

27

5HM14

CLAMP

28

5HM15

CLAMP

29

5HM55

CLAMP

30

7179840

SENSOR FUEL W/ O-ring - Was 6680440 - A

31

6717579

GASKET

32

6553411

BUSHING 0.38'' ID

33

6598908

ELBOW Was 6681462 - A

34

6666302

FITTING, ELBOW barbed - Was 7126672 - B

35

6577822

HOSE bulk - sold per foot

36

6809964

GUARD

37

HOSE NLA - use 38'' of Ref. 35

38

6624289

STRAP, TIE

39

5HM23

CLAMP

40

6578172

HOSE bulk - sold per foot

41

79K5

O RING 10 flat boss face

41

99K5

O-RING tapered boss face

Выбрано товаров: 44
