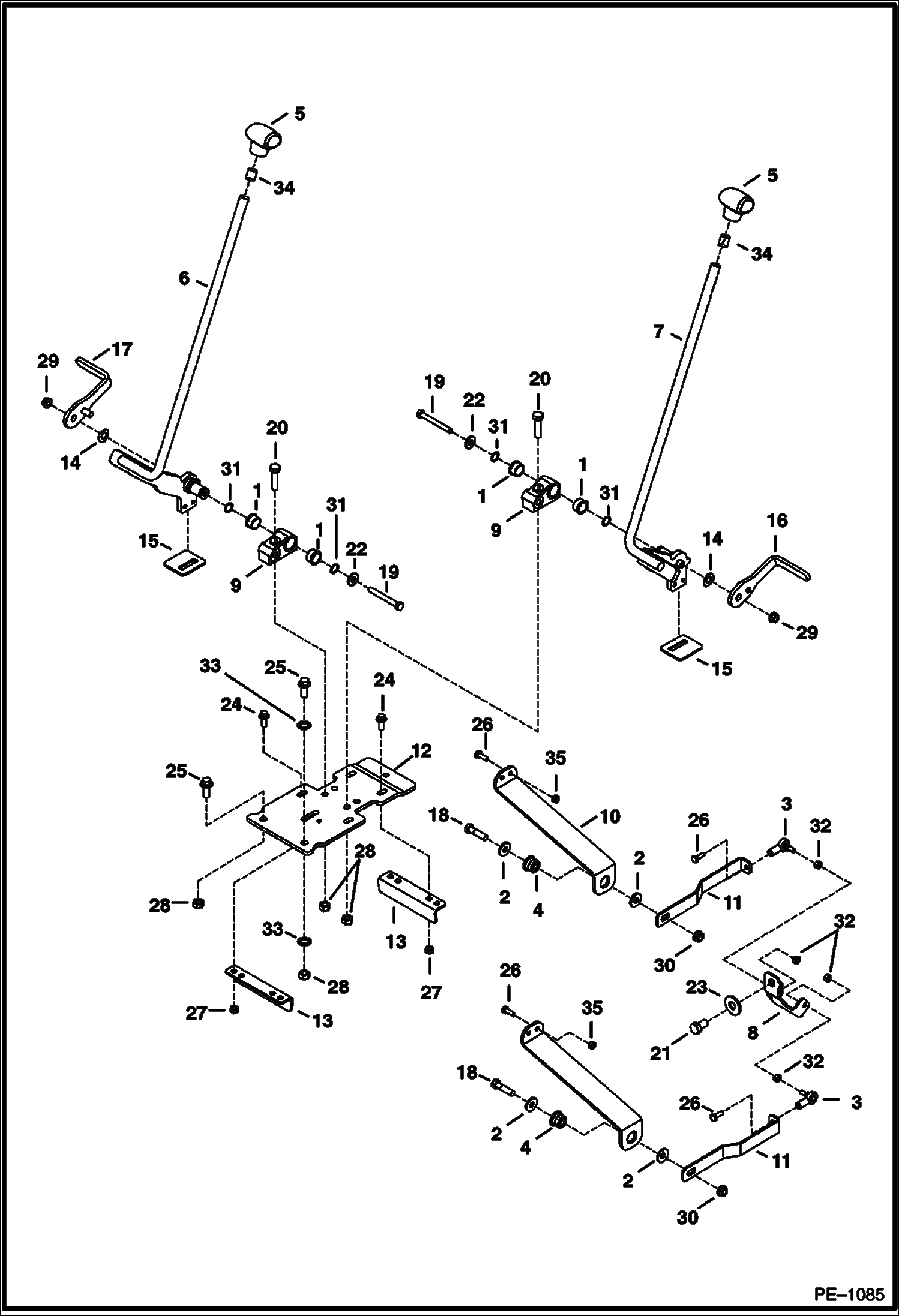

Запчасти Bobcat 341 CONTROLS - TRAVEL (S/N 233312194 & Below, 233212283 & Below) CONTROLS

1

6536801

BUSHING

2

6563914

WASHER

3

6631036

JOINT

4

6665701

BUSHING, PRESS FIT

5

6804068

HANDLE lever - Was 6802972 - A

6

PEDAL NLA - R.H. - Order 6810533 pedal R.H., 6810511 pedal, 6677904 bearing, 6536803 washer, 6810303 spacer, 6701174 washer, & (2) each of 1CM825 bolt and 51DM8 nut - drill out matching holes in Ref.

7

PEDAL NLA - L.H. - Order 6810532 pedal L.H., 6810508 pedal L.H., 6677908 bearing, 6536803 washer, 6810303 spacer, 6701174 washer, & (2) each of 1CM825 bolt and 51DM8 nut - drill out matching holes in

8

6809873

PLATE Was 6806931 - A

9

BEARING NLA - R.H. - Order 6810533 pedal R.H., 6810511 pedal, 6677904 bearing, 6536803 washer, 6810303 spacer, & 6701174 washer - Was 6807119 - A

9

BEARING NLA - L.H. - Order 6810532 pedal L.H., 6810508 pedal L.H., 6677908 bearing, 6536803 washer, 6810303 spacer, & 6701174 washer - Was 6807119 - A

10

6807318

LINK Was 6803718 - D

10

6810733

LINK Was 6809813 - A

11

6807319

LINK

12

6808061

MOUNT

13

6808062

BRACKET

13

6809084

STOP

14

6808157

WASHER

15

6812070

SEAL Was 6808430 - A

16

PEDAL NLA - L.H. - Order 6810532 pedal L.H., 6810508 pedal L.H., 6677908 bearing, 6536803 washer, 6810303 spacer, & 6701174 washer - Was 6808974 - A

17

PEDAL NLA - R.H. - Order 6810533 pedal R.H., 6810511 pedal, 6677904 bearing, 6536803 washer, 6810303 spacer, & 6701174 washer - Was 6808975 - A

18

1C624

BOLT

19

1CM870

BOLT

20

1CM1040

BOLT

21

1CM1220

BOLT

22

25E16

WSHR

23

25E22

WASHER

24

29CM820

SCREW

25

29CM1025

BOLT

26

18C412

BOLT .25'' dia - Was 2C000412B - A

26

1CM825

BOLT 8 mm dia

27

4DM8

NUT

28

4DM10

NUT

29

43DM8

NUT Was 51DM00008B - B

30

97D6

NUT 10 Was 55D000006B - B

31

58K015

O-RING 10

32

62D4

NUT

33

6E6

WASHER

34

6672494

RING

35

62D4

NUT .25'' dia

35

51DM8

NUT 8 mm dia
