Запчасти Bobcat 341 TRACK ROLLER (Steel Tracks) (Nut Mounted) (S/N 233311600 & Above and 233211493 & Above) UNDERCARRIAGE

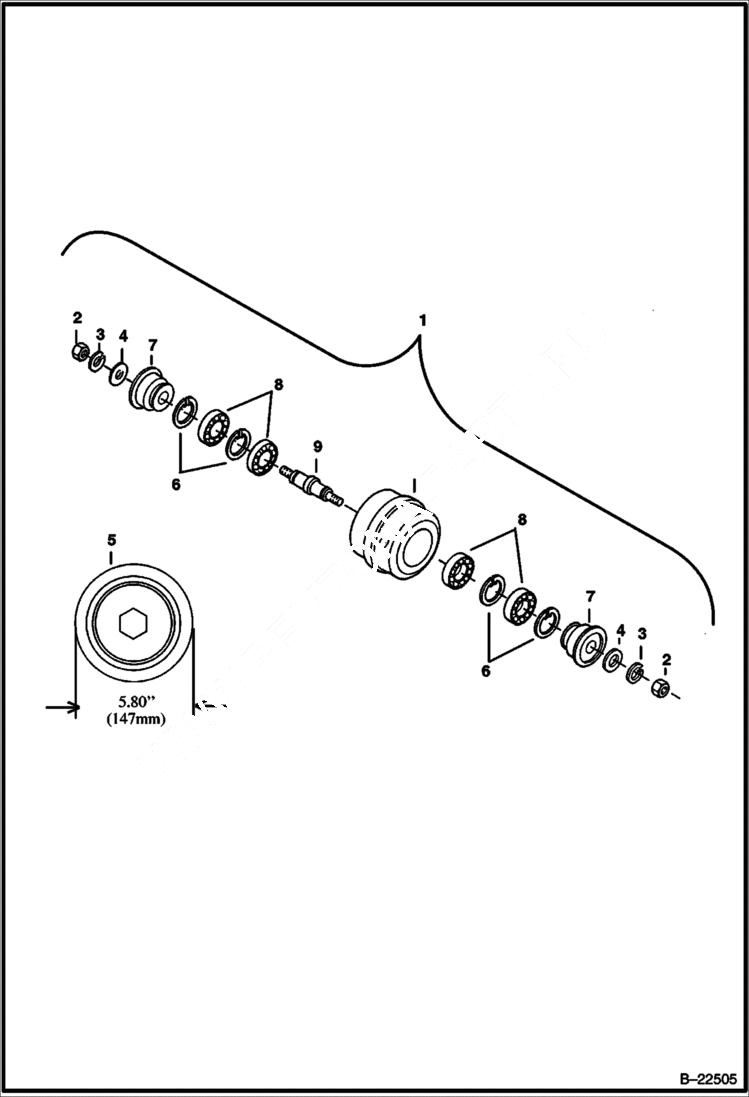

Схема запчастей Bobcat 341 - TRACK ROLLER (Steel Tracks) (Nut Mounted) (S/N 233311600 & Above and 233211493 & Above) UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

ROLLER ASSY See Illustration TRACK ROLLER/ NA2649 - NLA - Ref. 2-11 - Was 6815129 - A

2

4DM24

NUT HEX

3

6EM240

WASHER

4

1EM240

WASHER

5

ROLLER See Illustration TRACK ROLLER/ NA2649 See Illustration TRACK ROLLER/ B22506 - NLA - steel track - Check the outer diameter of roller before ordering parts - Was 6815130 - A

6

7JM80

SNAP RING

7

6679882

SEAL, OIL

8

6680292

BEARING

9

6807921

SHAFT Was 6816735 - D

Выбрано товаров: 9
