Запчасти Bobcat 341 TRACK ROLLER (Rubber Tracks) (Nut Mounted) (S/N 233311116 - 11599 and 233211117 - 11492) UNDERCARRIAGE

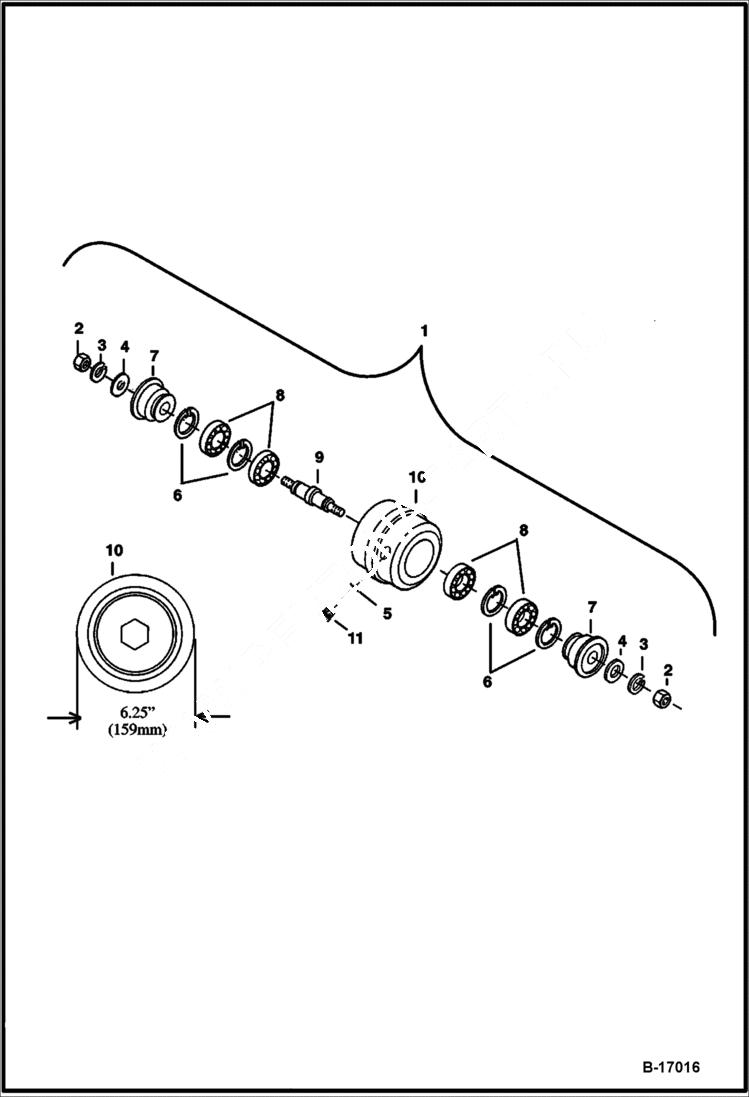

Схема запчастей Bobcat 341 - TRACK ROLLER (Rubber Tracks) (Nut Mounted) (S/N 233311116 - 11599 and 233211117 - 11492) UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

TRACK ROLLER See Illustration TRACK ROLLER/ B22506 - NLA - Assy. Ref. 2-11 - W/6.25'' (159mm) diameter - Was 6807919 - A

2

4DM24

NUT HEX

3

6EM240

WASHER

4

1EM240

WASHER

5

95K4

O-RING

6

7JM80

SNAP RING

7

6725083

SEAL Was 6717811 - A

8

BEARING NLA - order 6680292 - Was 6667990 - A

9

6807921

SHAFT Was 6816735 - D

10

ROLLER See Illustration TRACK ROLLER/ B22505 - NLA - Order 6815127 - check the outer diameter of roller before ordering parts- Order 6815128 & seal 6679882 - Was 6807920 - A

11

90K3

PLUG W/Ref. 5 - Was 90KV3 - D

Выбрано товаров: 11
