Запчасти Bobcat 341 UNDERCARRIAGE UNDERCARRIAGE

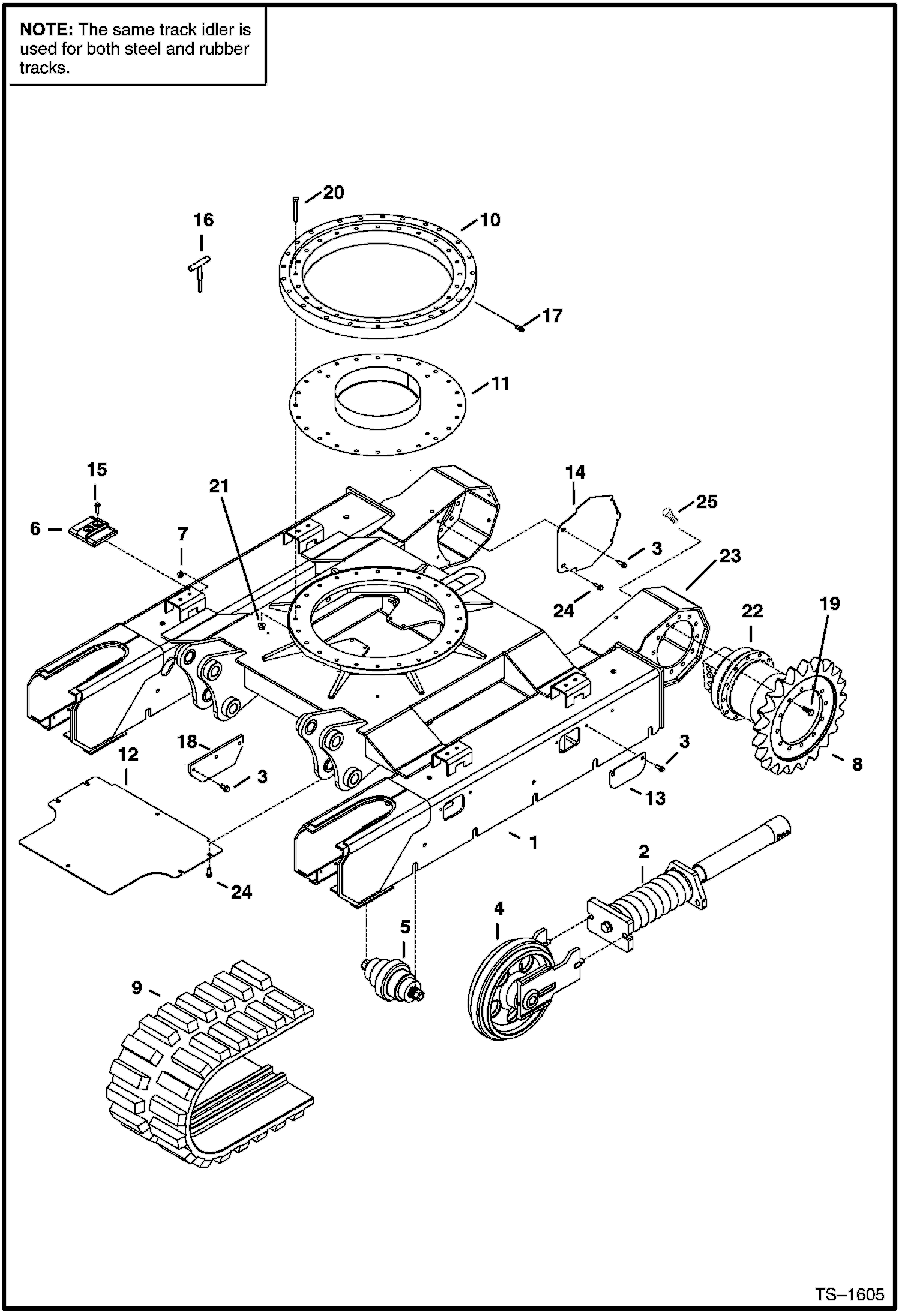

Схема запчастей Bobcat 341 - UNDERCARRIAGE UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

TRACK FRAME See BTIE-083 - NLA - Was 6807557 - A

2

SPRING ASSY See Illustration TRACK TENSIONER/ PE1912 - Recoil

3

26GM10030

BOLT

4

IDLER ASSY See Illustration FRONT IDLER/ B22504 - NLA - Order 6815125 - Was 6627775 - A

4

6815125

IDLER See Illustration FRONT IDLER/ B22504 - Was 6807922 - A

5

6814890

TRACK ROLLER See Illustration TRACK ROLLER/ B17016 - Rubber - Was 6627724 - A

5

6814892

TRACK ROLLER See Illustration TRACK ROLLER/ B22505 - Steel - Was 6628635 - A

6

6628407

BRACKET Track slide

7

51DM10

NUT Was 45DM00010B - A

8

6816209

SPROCKET, MOTOR DRIVE TRACK Was 6812134 - A

9

TRACK, RUBBER See Illustration TRACKS/ NA6193

9

TRACK, STEEL See Illustration TRACKS/ NA1888

10

6675777

BEARING Teeth on swing gear - Was 6668731 - D

11

6627719

FLANGE

12

6627732

COVER

13

6596723

COVER

14

6803830

COVER

15

29CM1035

SCREW

16

PIN Alignment - Service tool for aligning swing bearing when upper structure has been removed from undercarriage - See Service Manual for description

17

6652970

GREASE FITTING

18

6628758

GUIDE Guide - used with steel tracks only

19

55CM1435

SCREW Was 55C001435B - D

20

7CM12100

BOLT

21

51DM12

NUT Was 47DM00012B - B

22

DRIVE MOTOR See Illustration TRAVEL MOTOR/ D2403

23

6627750

PLATE Travel Motor Mount

24

26GM10020

BOLT

25

7CM1435

BOLT

Выбрано товаров: 28
