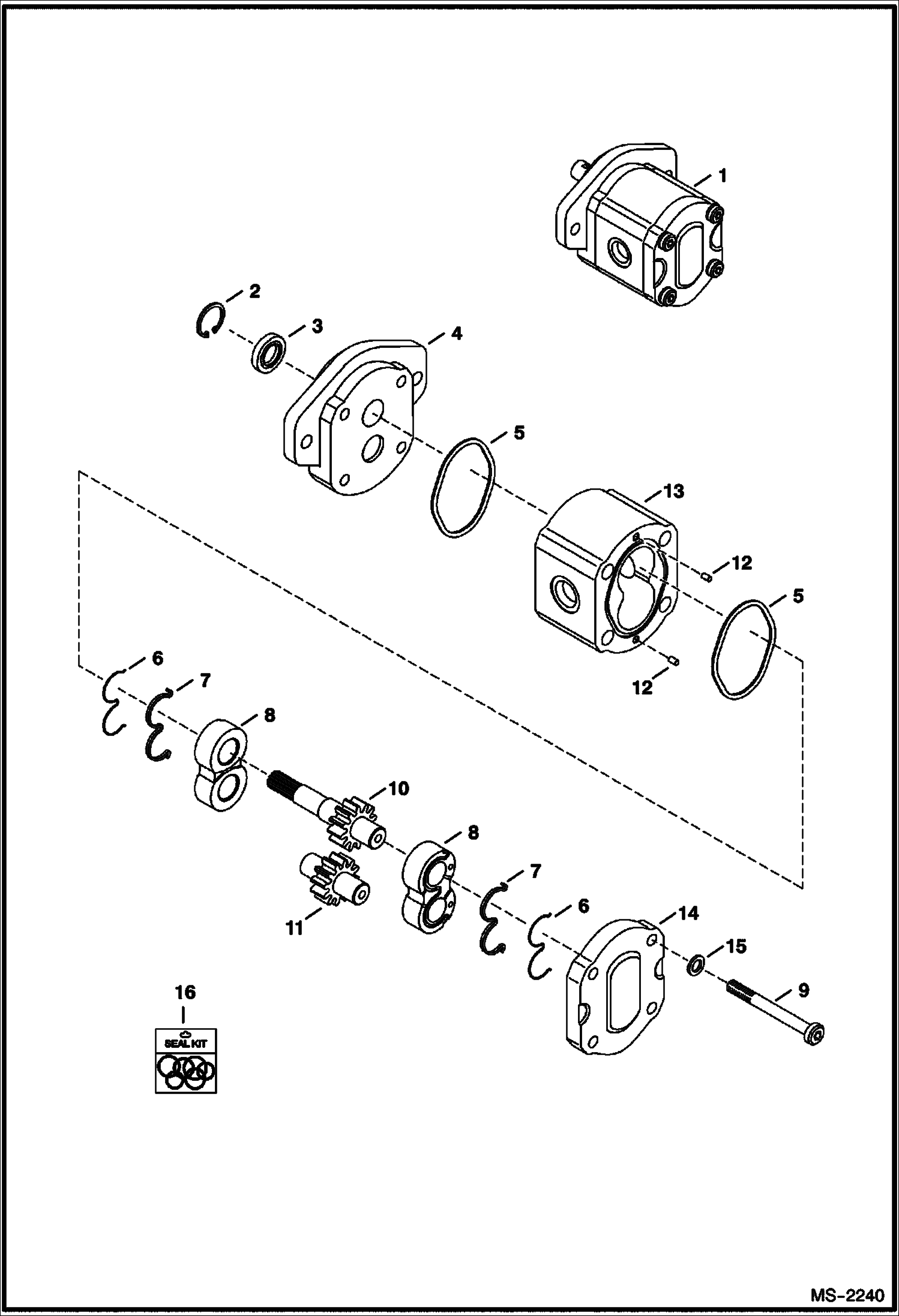

Запчасти Bobcat 341 GEAR PUMP HYDRAULIC SYSTEM

1

6683495

GEAR PUMP

2

RING NSS - Order Ref 1

3

SEAL In seal kit

4

COVER NSS - Order Ref 1

5

SEAL In seal kit

6

SEAL In seal kit

7

SEAL In seal kit

8

BLOCK NSS - Order Ref 1

9

BOLT NSS - Order Ref 1

10

GEAR NSS - Order Ref 1

11

GEAR NSS - Order Ref 1

12

DOWEL NSS - Order Ref 1

13

BODY NSS - Order Ref 1

14

COVER NSS - Order Ref 1

15

WASHER NSS - Order Ref 1

16

6690559

KIT, SEAL Includes Ref 3, 5-7
