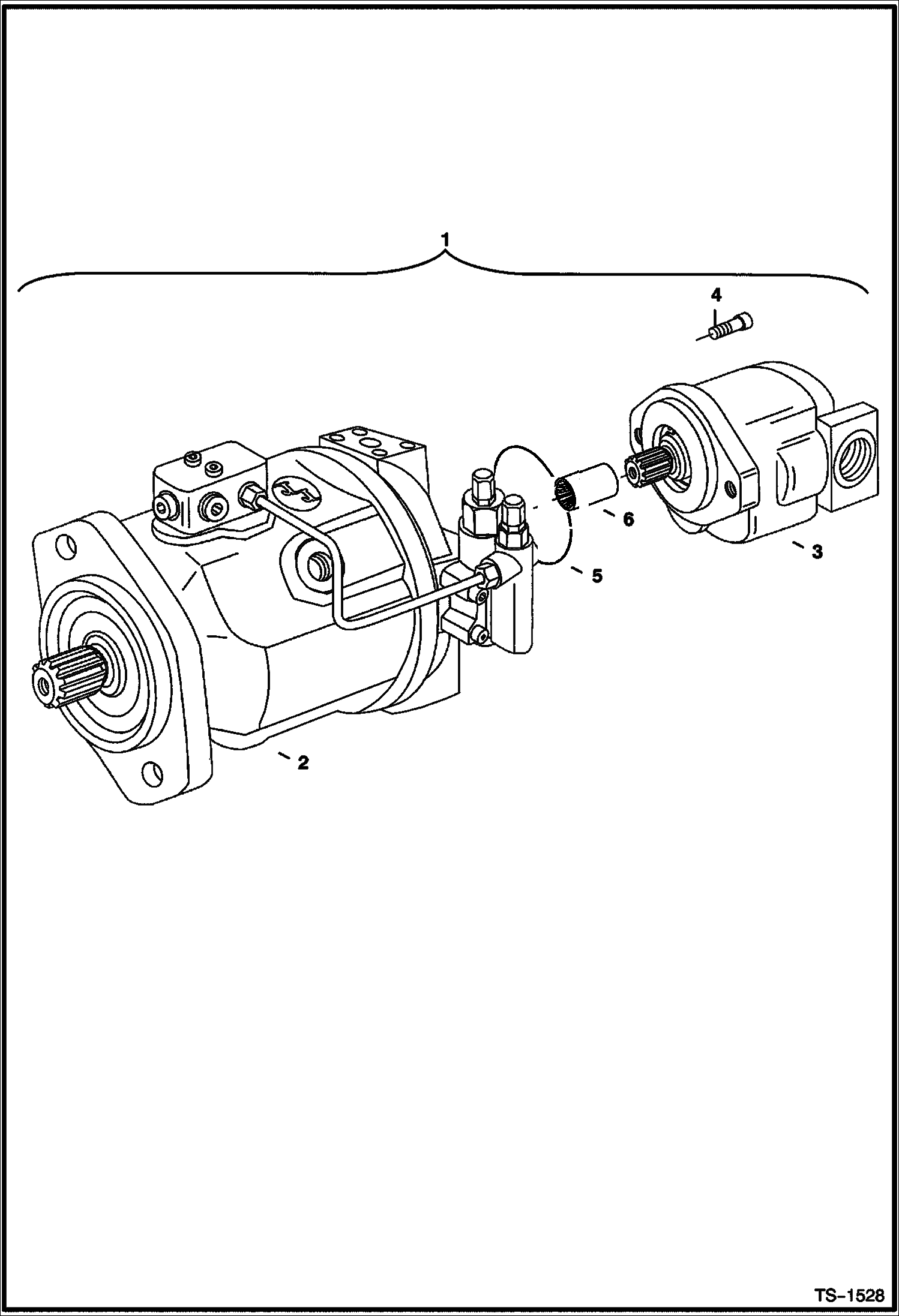

Запчасти Bobcat 341 PUMP ASSY. HYDRAULIC SYSTEM

1

PUMP ASSY NLA - Include Refs. 2 - 6 - Order 6674785 pump, 6805841 hose, 6805839 fitting - Was 6668914 - A

1

6674785

PUMP, HYD

2

6672207

PUMP See Illustration HYDROSTATIC PUMP/ TS1529 hydrostatic

3

PUMP See Illustration GEAR PUMP/ TS1530 NLA - gear - order 6675194 pump, 6805841 hose, 6805839 fitting - Was 6672208 - A

3

PUMP See Illustration GEAR PUMP/ B17971

4

6692894

BOLT 25mm long - Was 6672237 - D

5

6675169

O-RING

6

6688921

COUPLING
