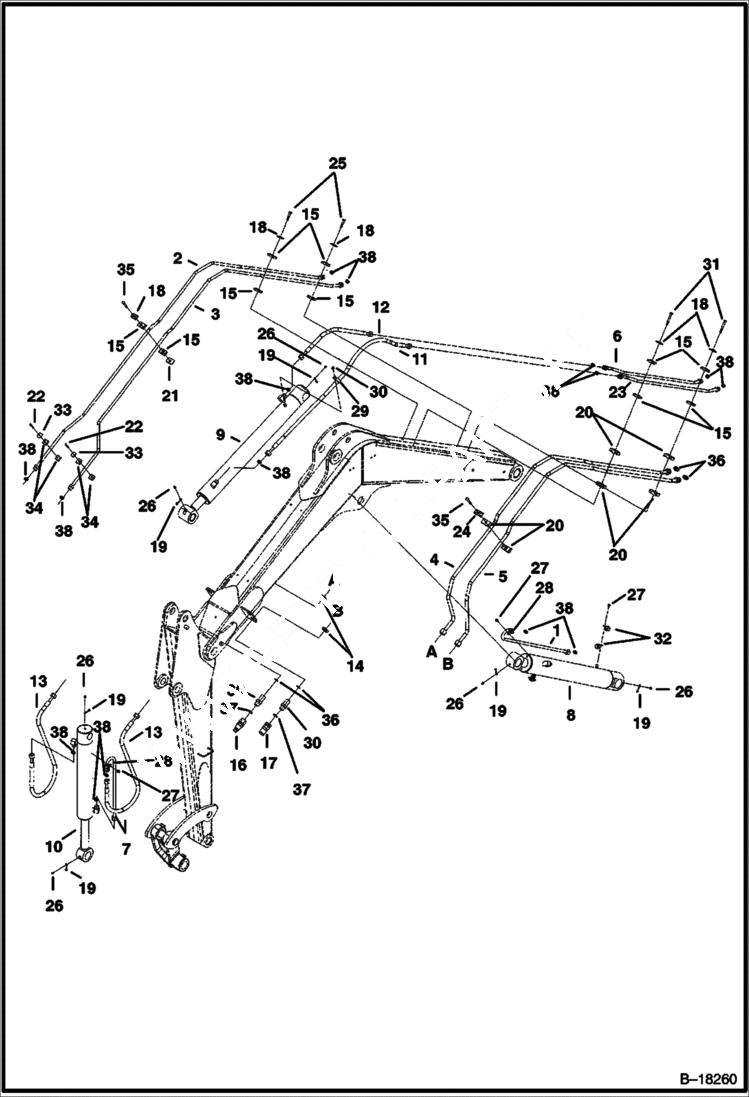

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Arm, Boom, Bucket & Auxiliary) HYDRAULIC SYSTEM

1

6800108

TUBE Boom Cylinder

2

6802987

TUBE Bucket Cylinder, base end

3

6802988

TUBE Bucket Cylinder, rod end

4

6802989

TUBE Auxiliary - male coupler

4

6807289

TUBE Auxiliary - male coupler

5

6802990

TUBE Auxiliary - female coupler

5

6807290

TUBE Auxiliary - female coupler

6

6802994

TUBE Arm Cylinder, base end

7

6628734

TUBE Bucket Cylinder

7

6805122

TUBE Bucket Cylinder

8

CYLINDER See Illustration BOOM CYLINDER/ C3474 - Boom

9

CYLINDER See Illustration ARM CYLINDER/ B18299 - Arm

10

CYLINDER See Illustration BUCKET CYLINDER/ C3473 - Bucket

11

6806934

HOSE Arm Cyl. Rod End - Was 6672150 - A

11

6806936

HOSE Was 6805013 - A

12

6806932

HOSE Arm Cyl. Base End - Was 6670842 - A

13

6806930

HOSE Bucket - Base End & Rod End - Standard Arm - Was 6670841 - A

13

6805012

HOSE Bucket - Base End & Rod End - Long Arm

14

61E12

NUT

14

61E12

NUT

14

86F8

NUT 5

14

86F8

NUT 5

15

6577697

CLAMP Was 6701893 - B

16

6674688

COUPLER, FF MALE straight - Was 6667808 - A

17

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

17

48K16

O RING 10 Incl. W/Ref. 17

18

6652521

PLATE

19

6652943

COVER grease fitting

20

6659498

CLAMP

21

6802955

PLATE

22

1CM640

SCREW

23

6802995

TUBE Arm Cylinder Rod End

24

6592507

PLATE

25

1CM1050

SCREW

26

10H25

FITTING, GREASE 5

27

29CM812

BOLT

28

30H37

CLAMP

29

30H49

CLAMP

30

6628916

ADAPTER Bulkhead - W/Refs. 36 & 37

30

6812823

ADAPTER bulkhead - W/Ref. 37 - Was 6716090 - A

30

97K12

O'RING flared end

31

1CM1080

BOLT

32

30H50

CLIP Was 31H000045B - B

33

6665102

COVER

34

6666920

CLAMP, HALF

35

1CM1060

BOLT

36

58K018

O-RING 10 fae seal - Use W/6628916

37

79K12

O RING 10 Use W/6628916 - flat boss face

37

99K12

O RING Use W/6806090 - tapered boss face

38

58K016

O-RING 10
