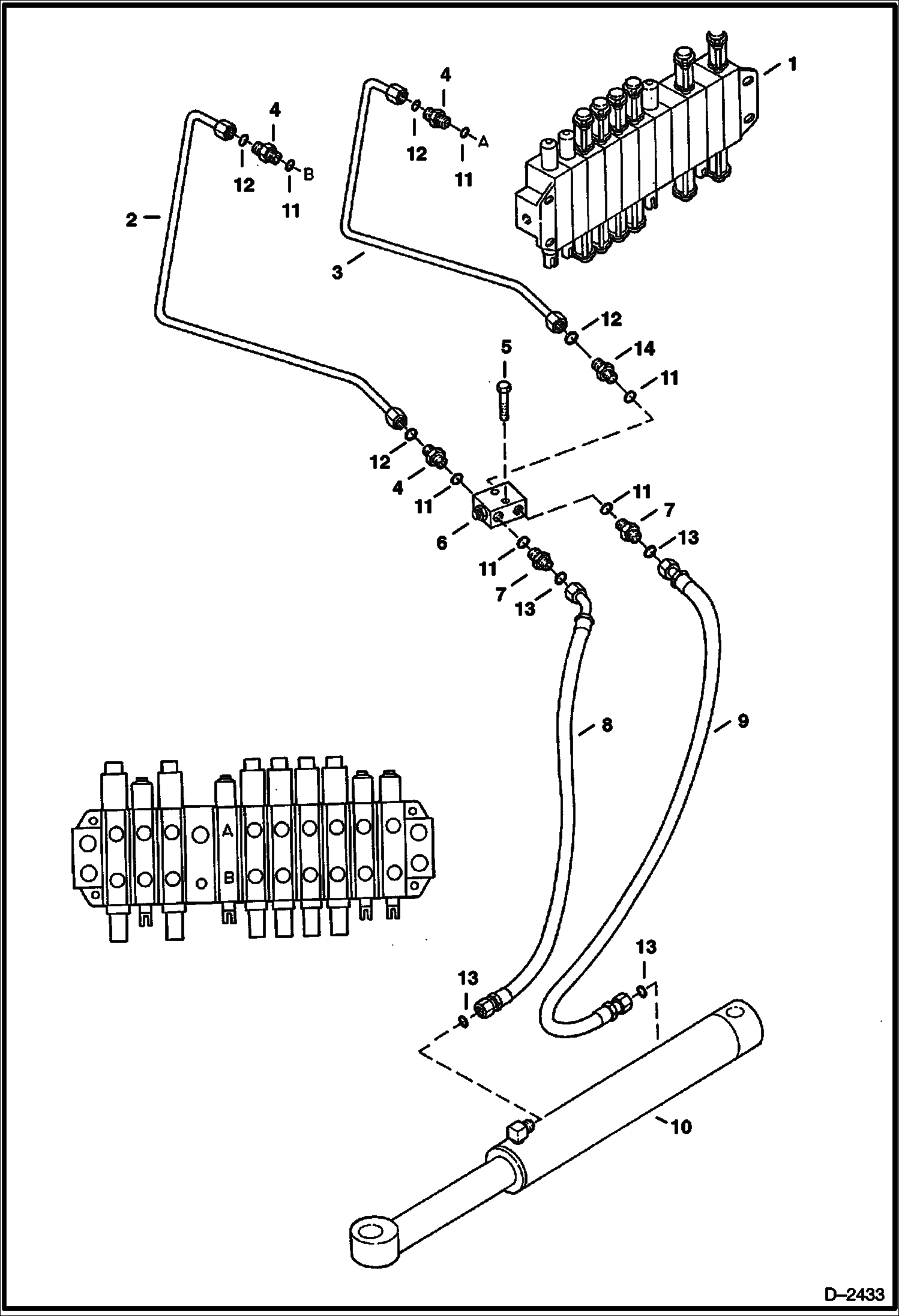

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Valve to Lock Valve to Swing Cylinder) (S/N 515411497 & Above) HYDRAULIC SYSTEM

1

6669588

VALVE See Illustration CONTROL VALVE/ E2381 - Control

2

6801919

TUBE

3

6801920

TUBE

4

52E808

ADAPTER W/Ref. 11 & 12

5

1CM1050

SCREW

6

6669590

VALVE ASSY See Illustration LOCK VALVE/ C3475 - Lock

7

52E606

ADAPTER W/Ref. 11 & 13

8

6800544

HOSE

9

6800545

HOSE Was 6800554 - D

10

CYLINDER See Illustration SWING MOTOR/ B18286 - Boom Swing

11

79K8

O RING 10

12

58K014

O-RING 10

13

58K012

O-RING 10
