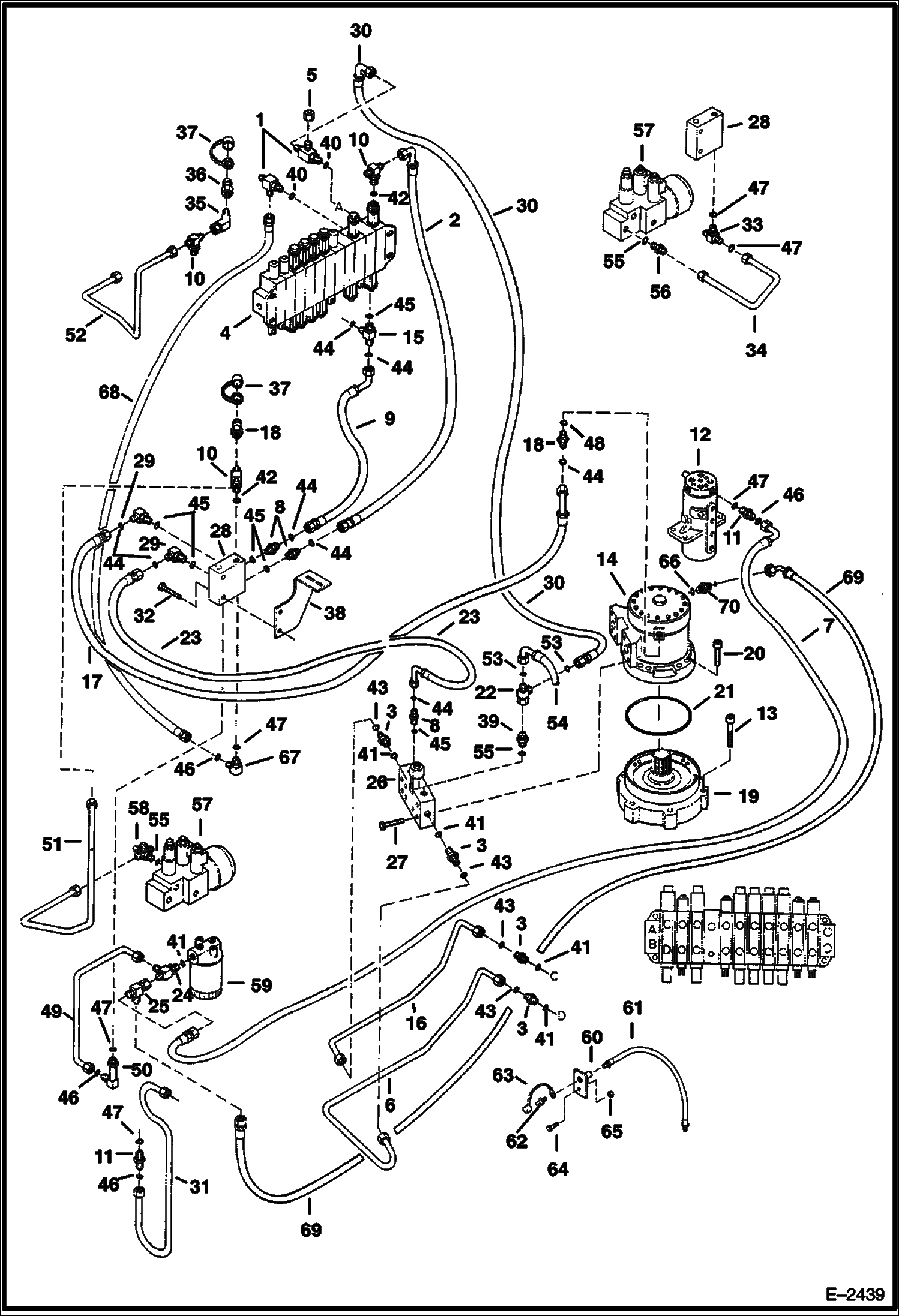

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Valve to Swing Motor to Local Valve to Swing Cylinder) (S/N 515411497 & Above) HYDRAULIC SYSTEM

1

6587567

TEE W/Ref. 40

2

6803502

HOSE

3

52E808

ADAPTER W/Refs. 41 & 43

4

6669588

VALVE See Illustration CONTROL VALVE/ E2381 - Control

5

36K5

CAP

6

6804579

TUBE

7

6804916

HOSE

8

15KB0404

FTG HYD S Connector W/Ref. 44 & 45

9

6803501

HOSE

10

19K3

FITTING W/Ref. 42

11

15KB0606

FITTING, HYD CONNECTOR W/Ref. 46 & 47

12

6800992

SWIVEL JOINT See Illustration SWIVEL JOINT/ C3468

13

7CM1680

BOLT

14

SWING MOTOR See Illustration SWING MOTOR/ B18288

15

21KB0404

FITTING, HYD TEE W/Ref. 44 & 45 - Was 21KN00003B - A

16

6804578

TUBE

17

6802442

HOSE

18

CONNECTOR NLA - W/Refs. 44 & 48 - tapered boss face - Was 6804359 - A

18

15KB0406

FTG HYD S CONNECTOR W/Ref. 44 & 48 - flat boss face

19

MOUNT ASSY See Illustration MOUNT ASSY/ TS1815 - Swing motor

20

3GM1295

BOLT

21

25K30816

O-RING Was 25K30812 - B,D

22

13K6

TEE W/Ref. - Was 13KN00006B - A

23

6804911

HOSE

24

6804880

TEE W/Ref. 41

25

13K6

TEE W/Ref. 53 - Was 13KN00006B - A

26

6678788

VALVE See Illustration RELIEF/BRAKE VALVE/ B16419 - Crossport - Was 6674784 - A

27

17C732

BOLT

28

7010002

VALVE, SEQUENCE DUAL See Illustration SEQUENCE VALVE/ TS1901 Was 6673053 - A

29

17KB0404

FTG HYD ELBOW 90 W/Refs. 44 & 45 - Was 17KN00003B - A

30

6802910

HOSE

31

6804154

TUBE

32

1CM850

BOLT

33

19KB0606

TEE W/Refs. 46 & 47 - Was 19KN00005B - A

34

6804155

TUBE

35

12K3

ADAPTER

36

7000009

PLUG Diagnostic

37

6630367

CAP Dust

38

6804580

BRACKET Sequence Valve & Oil Filter

39

755056

CONNECTR W/Ref. 55

40

79K10

O RING 10

41

79K8

O RING 10

42

79K4

O RING 10

43

58K014

O-RING 10

44

97K4

O'RING tapered boss face

45

99K4

O'RING

46

97K6

O RING for flared end on 17KN5

47

99K6

O RING tapered boss face

47

79K6

O RING 10 flat boss face

48

99K5

O-RING tapered boss face

48

79K5

O RING 10 flat boss face

49

6805216

TUBE

50

6812815

FITTING W/Ref. 46 & 47 - Was 6715188 - A

51

6805215

TUBE

52

6804153

TUBE

53

97K8

O-RING

54

6803504

HOSE

55

79K6

O RING 10

56

6669676

CHECK VALVE Check Valve - W/Ref. 55

57

See Illustration ACCUMULATOR VALVE/ C3418 - NLA - accumulator - order 6675141 - Was 6667819 - A

57

See Illustration ACCUMULATOR VALVE/ C3418 - NLA - accumulator - order 6675141 - Was 6673712 - A

57

6675141

VALVE See Illustration ACCUMULATOR VALVE/ C3418A - Accumulator

58

6803031

ADAPTER Cross - W/Ref. 55

59

6686217

FILTER ASSY Hydraulic - Case Drain - Was 6682415 - A

59

6516722

FILTER Filter - Was 6660728 - A

60

6586104

PLATE

61

6806922

HOSE Was 6531180 - A

62

10H25

FITTING, GREASE 5

63

6652943

COVER grease fitting

64

29CM1020

BOLT

65

1DM10

NUT

66

99K8

O-RING

67

ELBOW NLA - W/Ref. 46 & 47 - tapered boss face - Order 17KB606 - Was 17KN5 - A

67

17KB0606

FITTING W/Ref. 47 - flat boss face

68

6803505

HOSE

69

6804910

HOSE

70

15KB0808

FITTING, HYD CONNECTOR W/Ref. 66 - Was 15KN00006B - A

70

97K8

O-RING flare end
