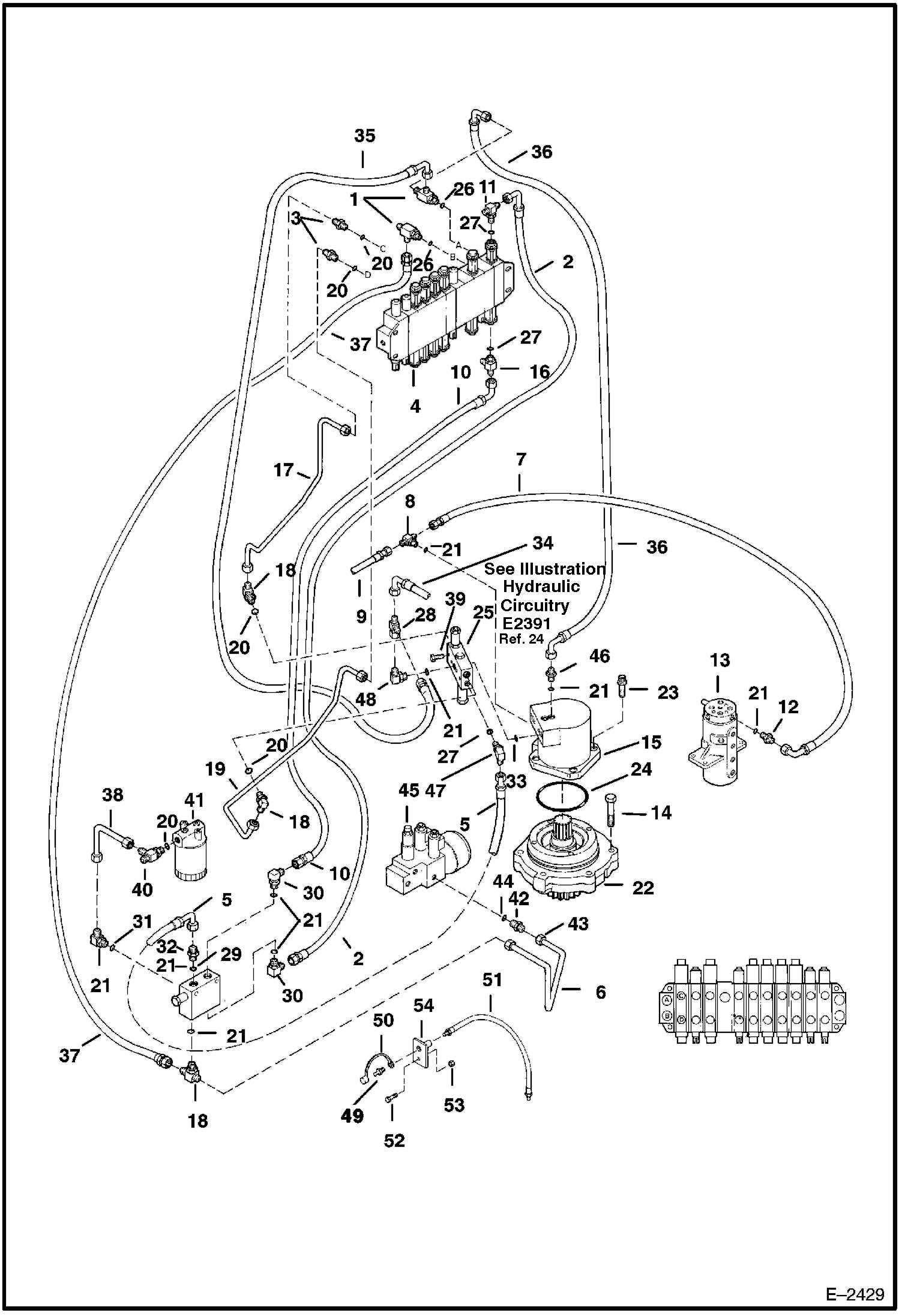

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Valve to Swing Motor) (S/N 515411001 - 515411496) HYDRAULIC SYSTEM

1

6587567

TEE W/Ref. 26

2

6803502

HOSE Was 6800556 - A

3

15K6

ADAPTER W/Ref. 20

4

6669588

VALVE See Illustration CONTROL VALVE/ E2381 - Control

5

6803506

HOSE Was 6802577 - A

6

6803285

TUBE Was 6802601 - A

7

6800553

HOSE

8

19K5

FITTING W/Ref. 21

9

6800554

HOSE

10

6803501

HOSE Was 6802776 - A

11

19K3

FITTING W/Ref. 27

12

15K5

FITTING W/Ref. 21

13

6800992

SWIVEL JOINT See Illustration SWIVEL JOINT/ C3468

14

7CM1680

BOLT See Illustration SWING MOTOR/ C3467

15

SWING MOTOR See Illustration SWING MOTOR/ C3467

16

21K3

CONNECTOR W/Ref. 27

17

6802571

TUBE

18

17K6

ELBOW W/Ref. 20

19

6802572

TUBE

20

79K8

O RING 10

21

79K6

O RING 10

22

6627898

MOUNT ASSY See Illustration MOUNT ASSY/ TS1513 - Swing Motor

23

93G1032

BOLT

24

25K40608

O-RING, 10

25

6672040

BLOCK See Illustration RELIEF/BRAKE VALVE/ D2402 - Cross Port - Was 6669456 - A

26

79K10

O RING 10

27

79K4

O RING 10

28

13K6

TEE

29

6672041

VALVE ASSY. See Illustration SEQUENCE VALVE/ C3504 - Sequence

30

1316049

ELBOW W/Ref. 21

31

17K5

ELBOW W/Ref. 21

32

1308081

ADAPTER W/Ref. 21

33

6669213

O-RING See Illustration RELIEF/BRAKE VALVE/ D2402

34

6803504

HOSE See Illustration HYDRAULIC CIRCUITRY/ E2391

35

6802910

HOSE

36

6803503

HOSE

37

6803505

HOSE

38

6803286

TUBE

39

2C632

CAP SCREW

40

6803287

TEE W/Ref. 20

41

6686217

FILTER ASSY Hydraulic - Case Drain - Was 6682415 - A

41

6516722

FILTER Filter - Was 6660728 - A

42

CONNECTOR NLA - W/Ref. 43 & 44 - tapered boss face - Was 6804359 - A

42

15KB0406

FTG HYD S CONNECTOR W/Ref. 44 - flat boss face

43

97K4

O'RING tapered boss face

44

99K6

O RING tapered boss face

44

79K6

O RING 10 flat boss face

45

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - NLA - order 6675141 - Was 6667819 - A

45

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - NLA - order 6675141 - Was 6673712 - A

45

6675141

VALVE See Illustration ACCUMULATOR VALVE/ C3418A

46

6802778

ADAPTER W/Ref. 21

47

17K3

ELBOW W/Ref. 27

48

17KB0806

FITTING, HYD ELBOW W/Ref. 21 - Was 672942B - A

49

10H25

FITTING, GREASE 5

50

6652943

COVER grease fitting

51

6806922

HOSE Was 6531180 - A

52

29CM1020

BOLT

53

1DM10

NUT

54

6586104

PLATE
