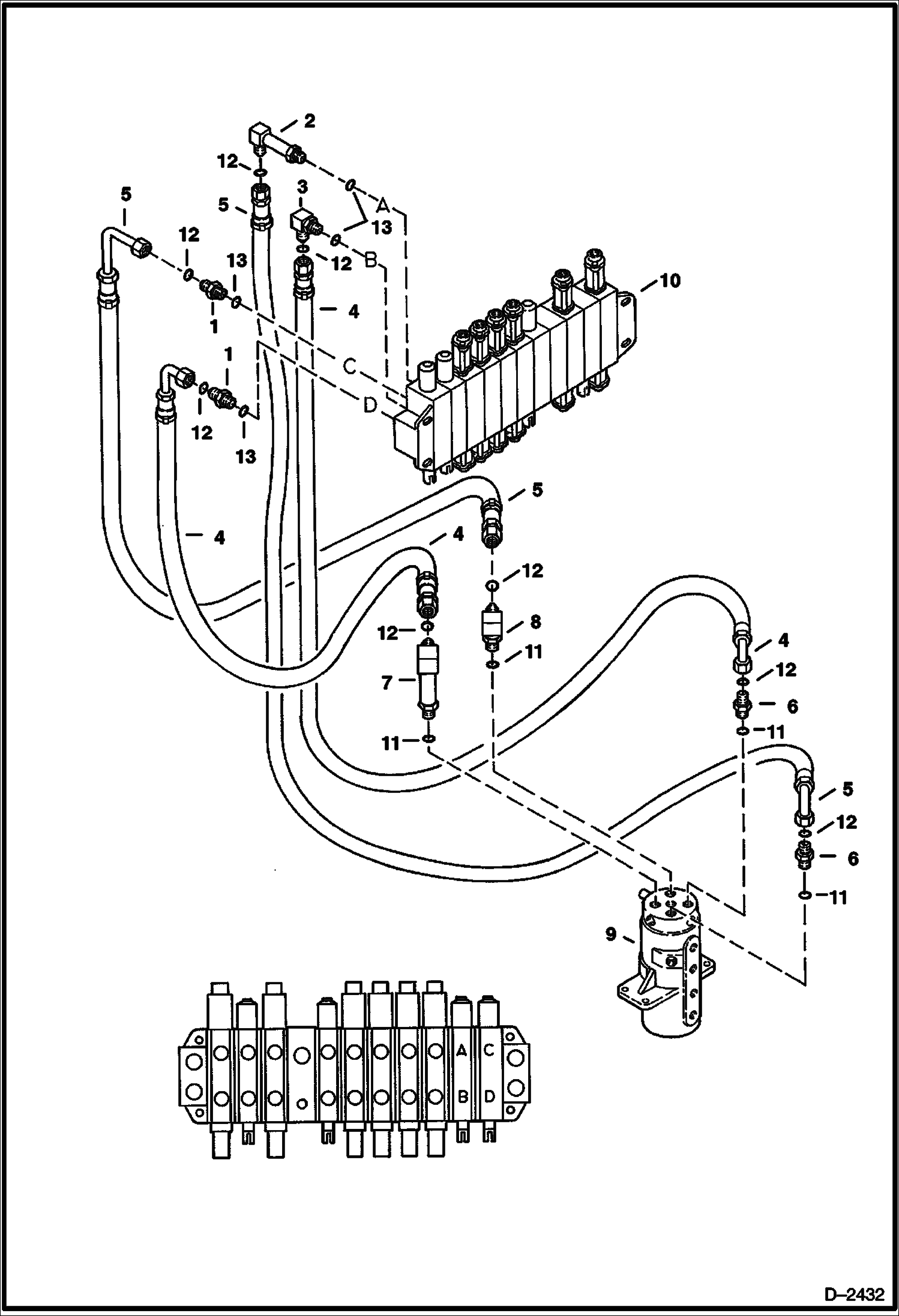

Запчасти Bobcat 337 HYDRAULIC CIRCUITRY (Control Valve to Swivel Joint) HYDRAULIC SYSTEM

1

52E808

ADAPTER W/Ref. 12 & 13

2

77E808

ELBOW W/Ref. 12 & 13

3

55E808

ELBOW W/Ref. 12 & 13

4

6806928

HOSE Was 6669992 - A

5

6806926

HOSE Was 6669991 - A

6

52E810

ADAPTER W/Ref. 11 & 12

7

77E810

ELBOW W/Ref. 11 & 12

8

55E810

ELBOW W/Ref. 11 & 12

9

6800992

SWIVEL JOINT See Illustration SWIVEL JOINT/ C3468

10

6669588

VALVE See Illustration CONTROL VALVE/ E2381 - Control

11

79K10

O RING 10

12

58K014

O-RING 10

13

79K8

O RING 10
